ELECTRICAL SYSTEM 16-13

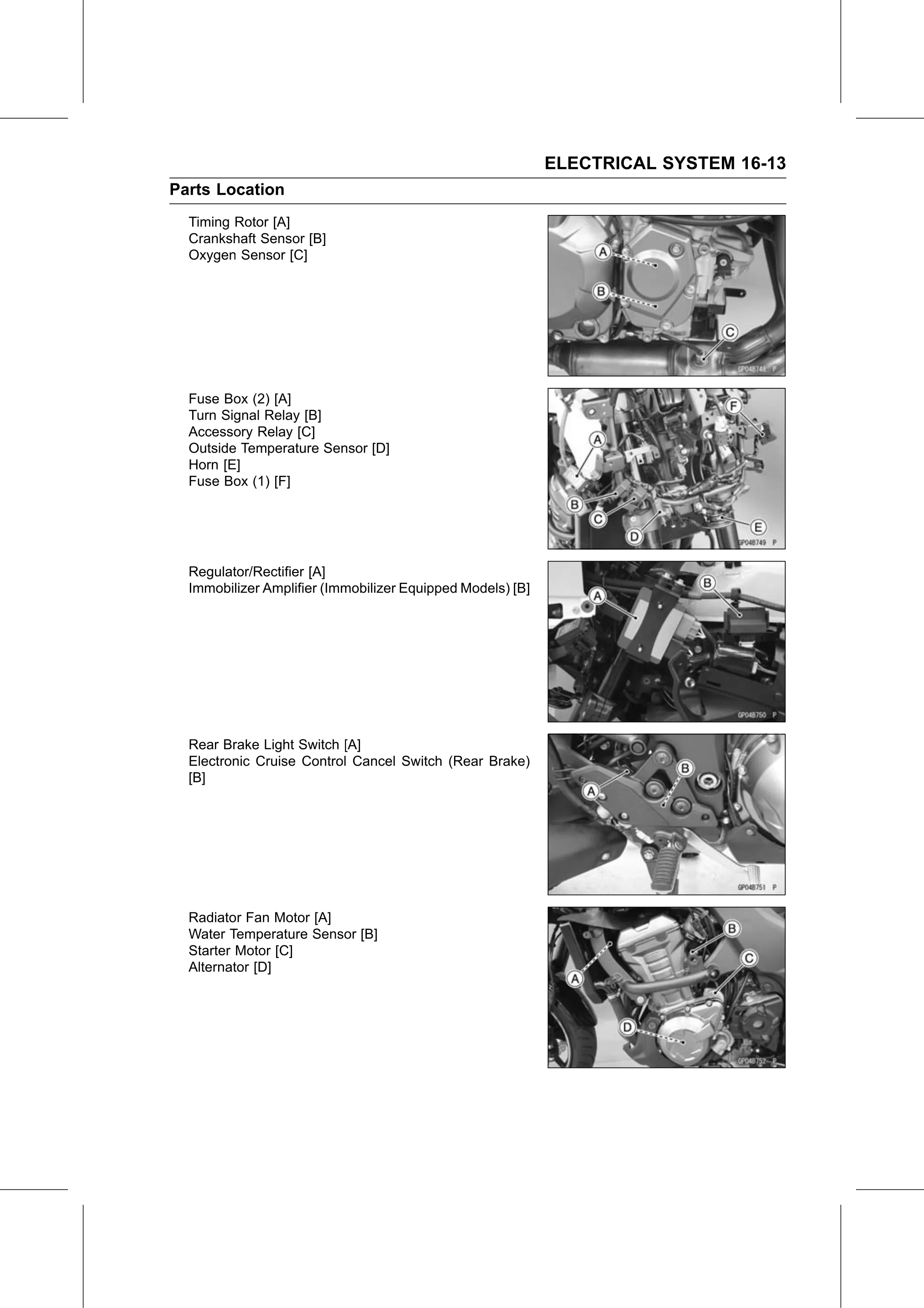

Parts Location
  Timing Rotor [A]
  Crankshaft Sensor [B]
  Oxygen Sensor [C]

  Fuse Box (2) [A]
  Turn Signal Relay [B]
  Accessory Relay [C]
  Outside Temperature Sensor [D]
  Horn [E]
  Fuse Box (1) [F]

  Regulator/Rectifier [A]
  Immobilizer Amplifier (Immobilizer Equipped Models) [B]

  Rear Brake Light Switch [A]
  Electronic Cruise Control Cancel Switch (Rear Brake)
  [B]

  Radiator Fan Motor [A]
  Water Temperature Sensor [B]
  Starter Motor [C]
  Alternator [D]
