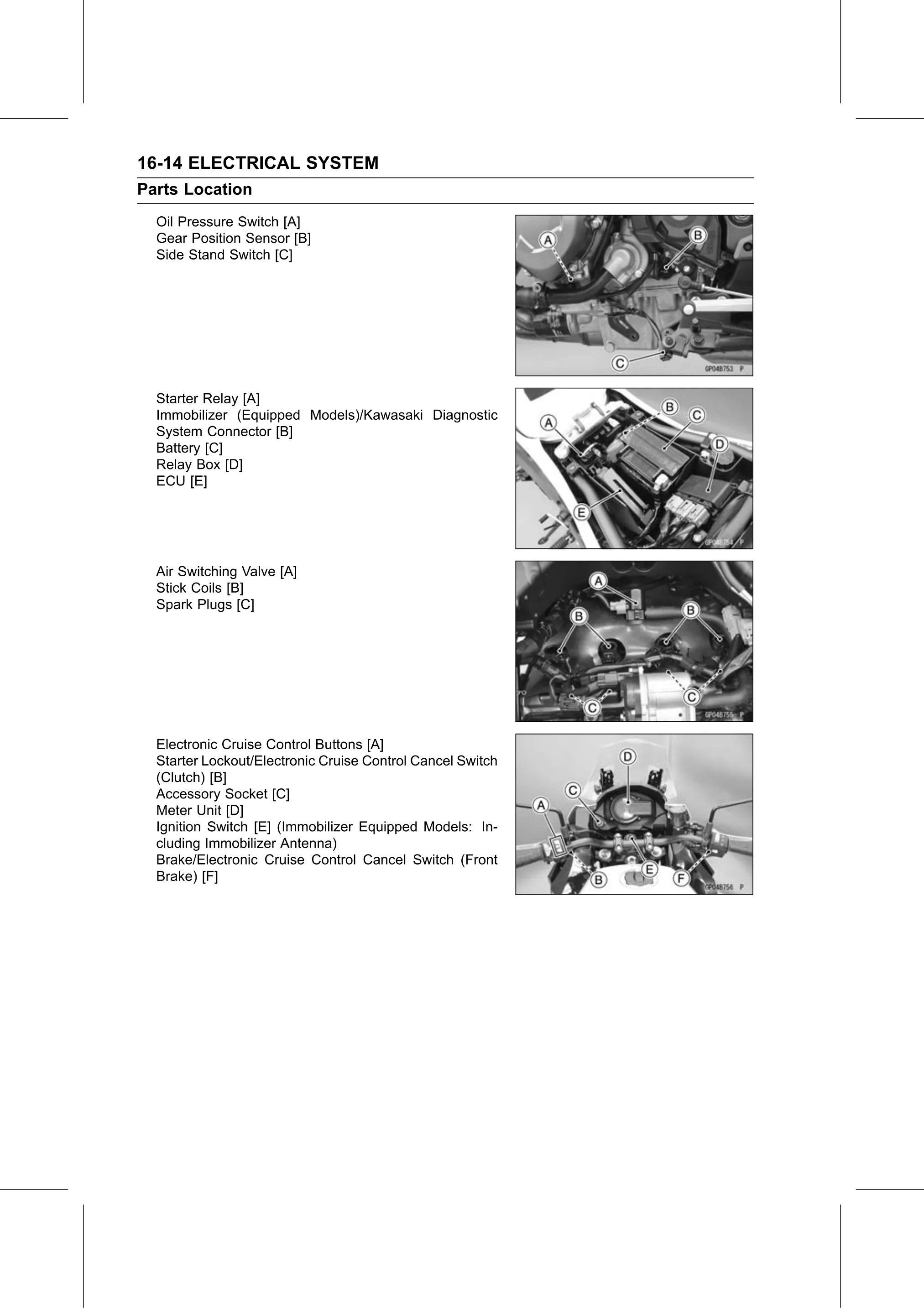

16-14 ELECTRICAL SYSTEM
Parts Location
  Oil Pressure Switch [A]
  Gear Position Sensor [B]
  Side Stand Switch [C]

  Starter Relay [A]
  Immobilizer (Equipped Models)/Kawasaki Diagnostic
  System Connector [B]
  Battery [C]
  Relay Box [D]
  ECU [E]

  Air Switching Valve [A]
  Stick Coils [B]
  Spark Plugs [C]

  Electronic Cruise Control Buttons [A]
  Starter Lockout/Electronic Cruise Control Cancel Switch
  (Clutch) [B]
  Accessory Socket [C]
  Meter Unit [D]
  Ignition Switch [E] (Immobilizer Equipped Models: In-
  cluding Immobilizer Antenna)
  Brake/Electronic Cruise Control Cancel Switch (Front
  Brake) [F]
