16-52 ELECTRICAL SYSTEM
Ignition System

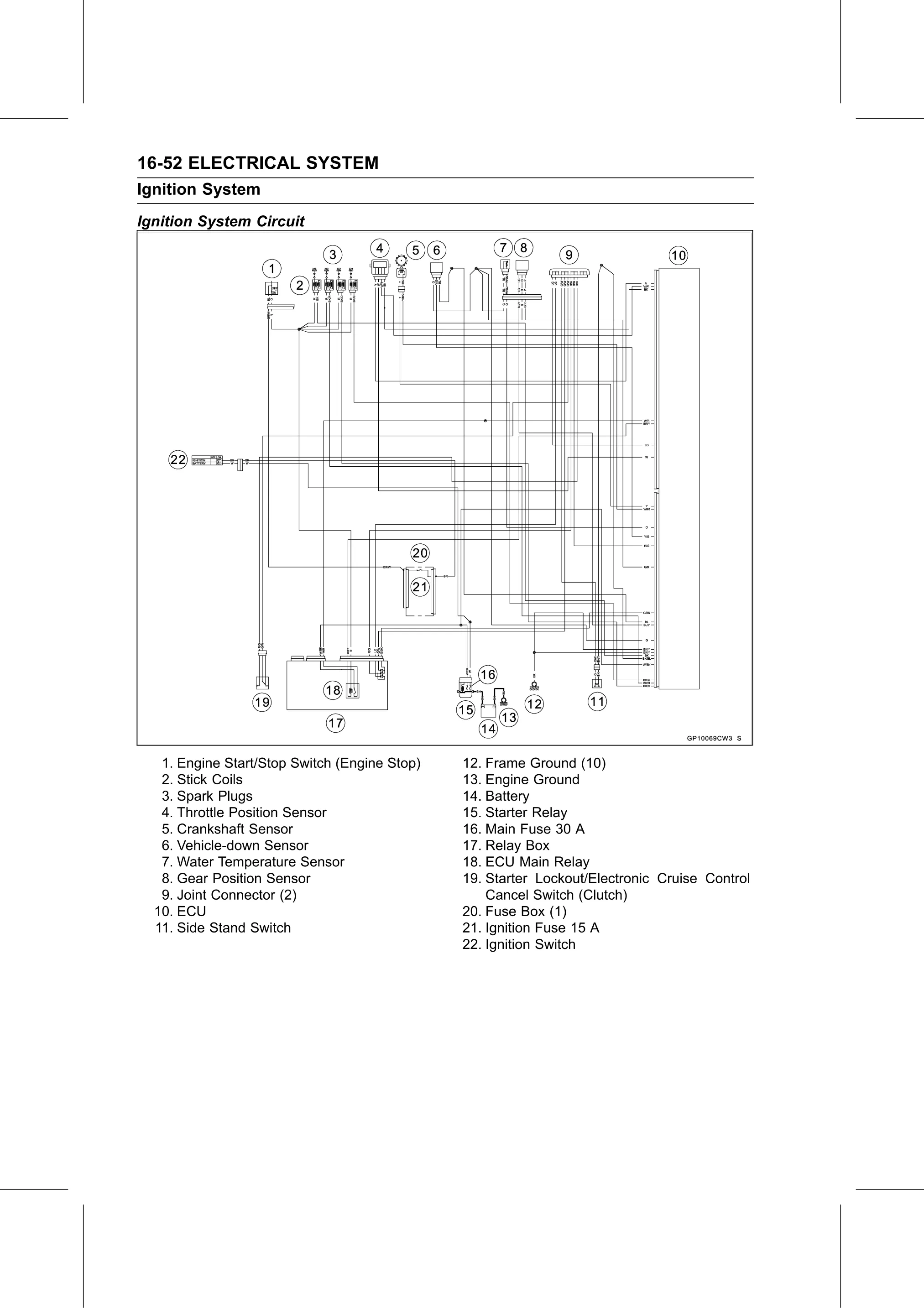

Ignition System Circuit

   1. Engine Start/Stop Switch (Engine Stop)   12. Frame Ground (10)
   2. Stick Coils                              13. Engine Ground
   3. Spark Plugs                              14. Battery
   4. Throttle Position Sensor                 15. Starter Relay
   5. Crankshaft Sensor                        16. Main Fuse 30 A
   6. Vehicle-down Sensor                      17. Relay Box
   7. Water Temperature Sensor                 18. ECU Main Relay
   8. Gear Position Sensor                     19. Starter Lockout/Electronic Cruise Control
   9. Joint Connector (2)                          Cancel Switch (Clutch)
  10. ECU                                      20. Fuse Box (1)
  11. Side Stand Switch                        21. Ignition Fuse 15 A
                                               22. Ignition Switch
