ELECTRICAL SYSTEM 16-69
Air Switching Valve

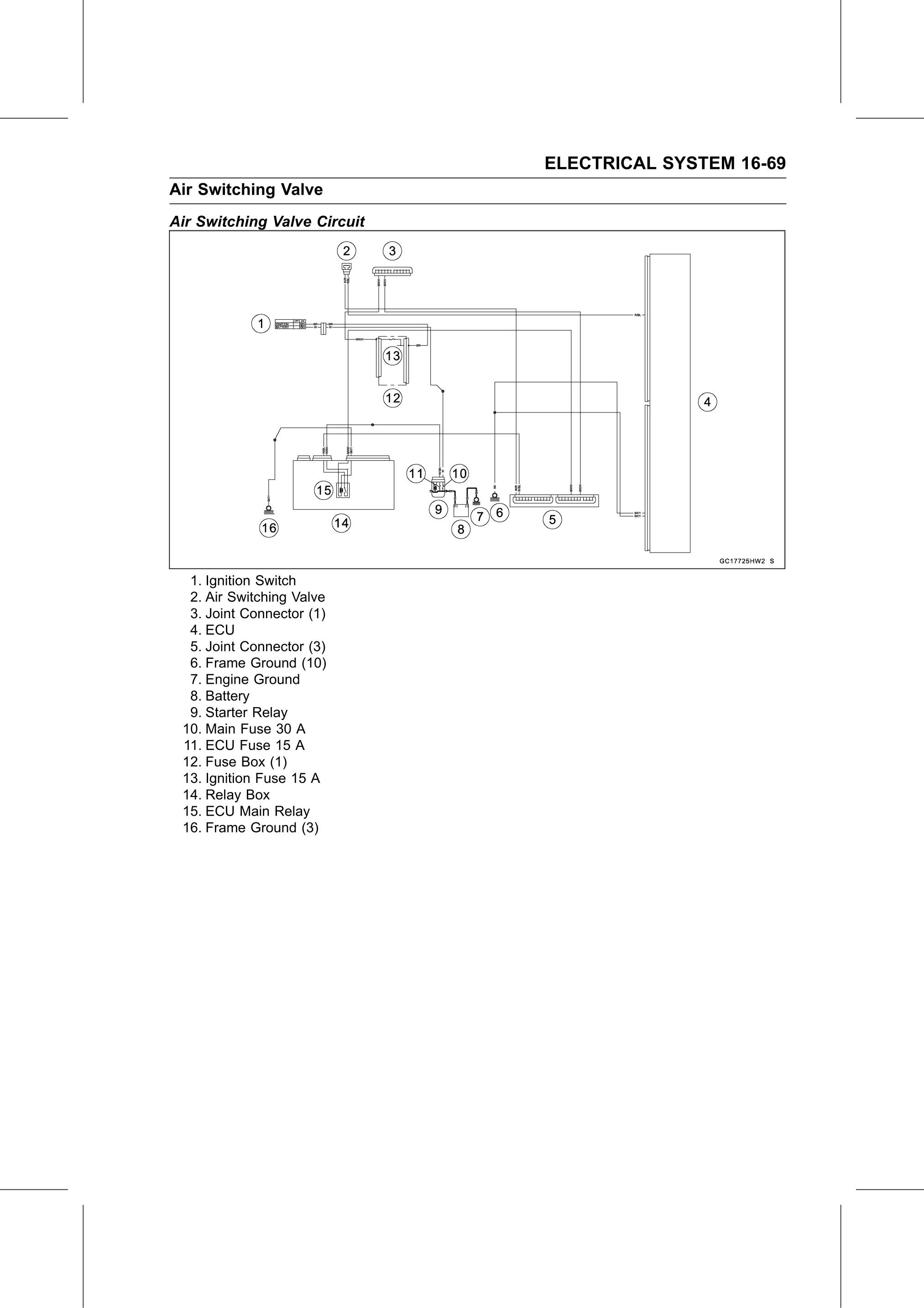

Air Switching Valve Circuit

  1. Ignition Switch
  2. Air Switching Valve
  3. Joint Connector (1)
  4. ECU
  5. Joint Connector (3)
  6. Frame Ground (10)
  7. Engine Ground
  8. Battery
  9. Starter Relay
 10. Main Fuse 30 A
 11. ECU Fuse 15 A
 12. Fuse Box (1)
 13. Ignition Fuse 15 A
 14. Relay Box
 15. ECU Main Relay
 16. Frame Ground (3)
