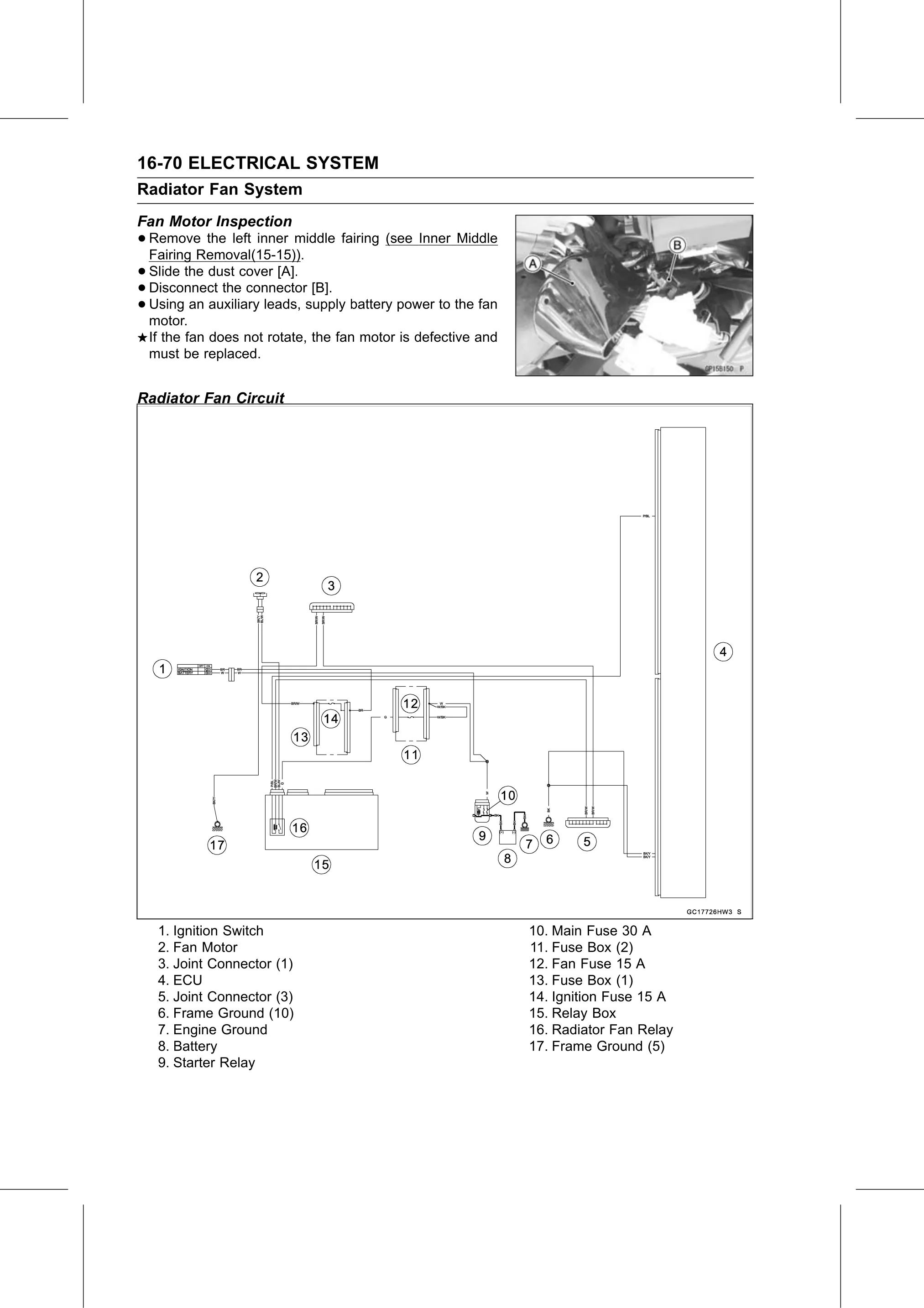

16-70 ELECTRICAL SYSTEM
Radiator Fan System
Fan Motor Inspection
• Remove    the left inner middle fairing (see Inner Middle
  Fairing Removal(15-15)).
• Slide the dust cover [A].
• Using an auxiliary
  Disconnect  the connector [B].
• motor.              leads, supply battery power to the fan

 If the fan does not rotate, the fan motor is defective and
 must be replaced.

Radiator Fan Circuit

   1. Ignition Switch                                          10. Main Fuse 30 A
   2. Fan Motor                                                11. Fuse Box (2)
   3. Joint Connector (1)                                      12. Fan Fuse 15 A
   4. ECU                                                      13. Fuse Box (1)
   5. Joint Connector (3)                                      14. Ignition Fuse 15 A
   6. Frame Ground (10)                                        15. Relay Box
   7. Engine Ground                                            16. Radiator Fan Relay
   8. Battery                                                  17. Frame Ground (5)
   9. Starter Relay
