ELECTRICAL SYSTEM 16-75
Meter, Gauge, Indicator Unit

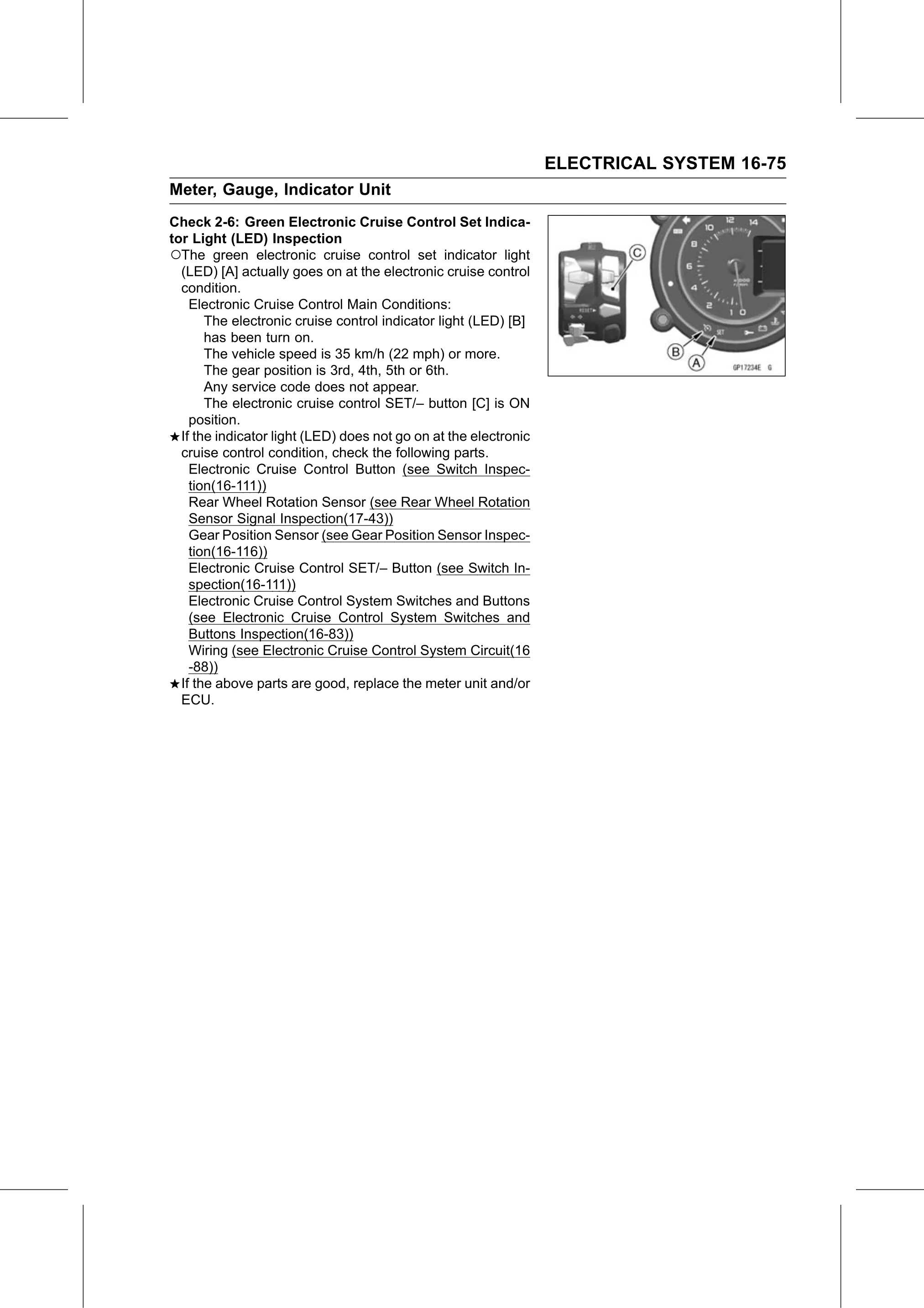

Check 2-6: Green Electronic Cruise Control Set Indica-
tor Light (LED) Inspection
○The green electronic cruise control set indicator light
  (LED) [A] actually goes on at the electronic cruise control
  condition.
    Electronic Cruise Control Main Conditions:
       The electronic cruise control indicator light (LED) [B]
       has been turn on.
       The vehicle speed is 35 km/h (22 mph) or more.
       The gear position is 3rd, 4th, 5th or 6th.
       Any service code does not appear.
       The electronic cruise control SET/– button [C] is ON
    position.
  If the indicator light (LED) does not go on at the electronic
  cruise control condition, check the following parts.
    Electronic Cruise Control Button (see Switch Inspec-
    tion(16-111))
    Rear Wheel Rotation Sensor (see Rear Wheel Rotation
    Sensor Signal Inspection(17-43))
    Gear Position Sensor (see Gear Position Sensor Inspec-
    tion(16-116))
    Electronic Cruise Control SET/– Button (see Switch In-
    spection(16-111))
    Electronic Cruise Control System Switches and Buttons
    (see Electronic Cruise Control System Switches and
    Buttons Inspection(16-83))
    Wiring (see Electronic Cruise Control System Circuit(16
    -88))
  If the above parts are good, replace the meter unit and/or
  ECU.
