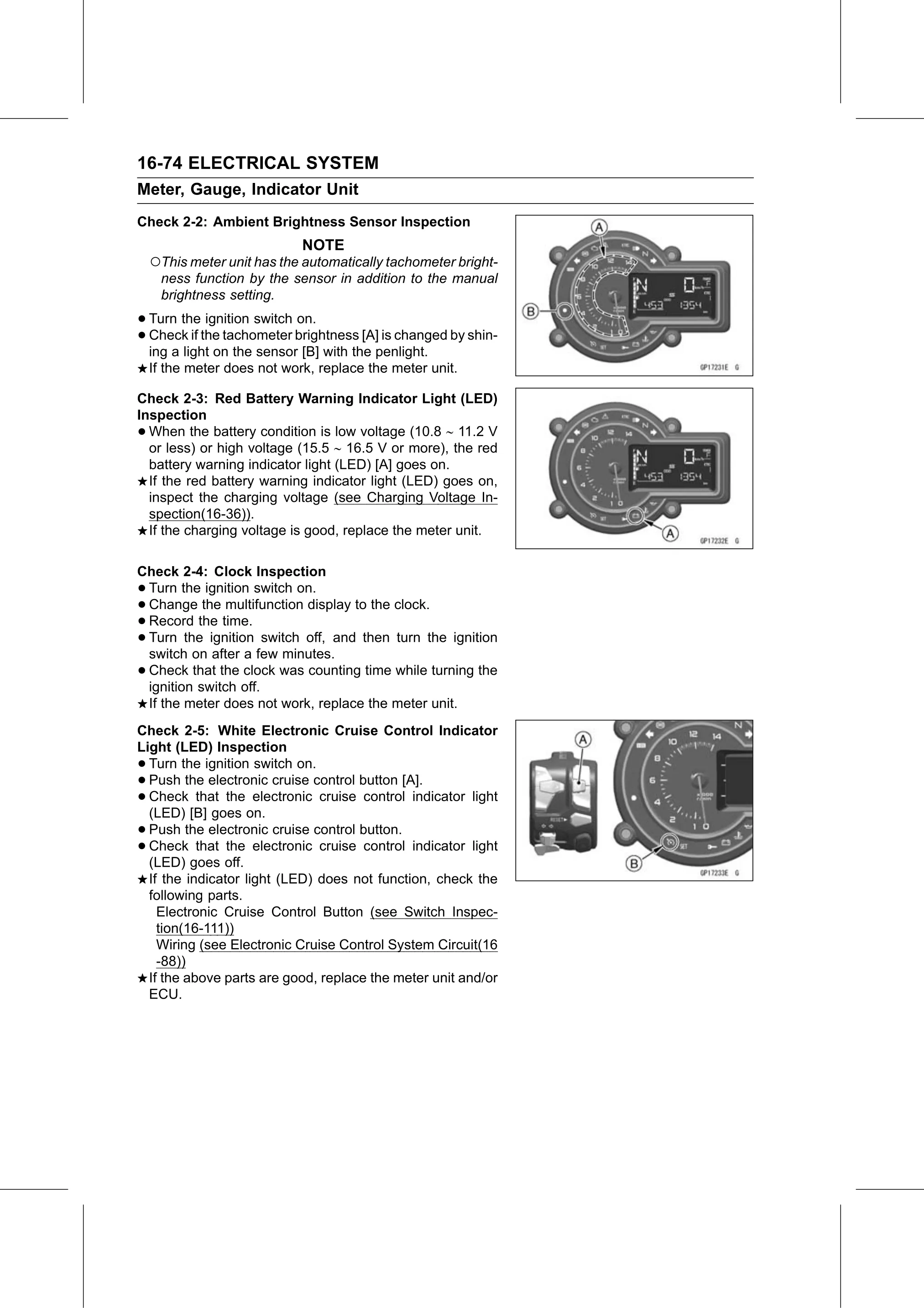

16-74 ELECTRICAL SYSTEM
Meter, Gauge, Indicator Unit
Check 2-2: Ambient Brightness Sensor Inspection
                             NOTE
    ○This meter unit has the automatically tachometer bright-
     ness function by the sensor in addition to the manual
     brightness setting.

• Turn  the ignition switch on.
• Check   if the tachometer brightness [A] is changed by shin-
  ing a light on the sensor [B] with the penlight.
    If the meter does not work, replace the meter unit.

Check 2-3: Red Battery Warning Indicator Light (LED)
Inspection
• When the battery condition is low voltage (10.8  11.2 V
  or less) or high voltage (15.5  16.5 V or more), the red
  battery warning indicator light (LED) [A] goes on.
  If the red battery warning indicator light (LED) goes on,
  inspect the charging voltage (see Charging Voltage In-
  spection(16-36)).
  If the charging voltage is good, replace the meter unit.

Check 2-4: Clock Inspection
•Turn the ignition switch on.
•Change the multifunction display to the clock.
•Record the time.
•Turn the ignition switch off, and then turn the ignition
 switch on after a few minutes.
•Check that the clock was counting time while turning the
 ignition switch off.
 If the meter does not work, replace the meter unit.
Check 2-5: White Electronic Cruise Control Indicator
Light (LED) Inspection
• Turn the ignition switch on.
• Push the electronic cruise control button [A].
• Check that the electronic cruise control indicator light
  (LED) [B] goes on.
• Push the electronic cruise control button.
• Check that the electronic cruise control indicator light
  (LED) goes off.
  If the indicator light (LED) does not function, check the
  following parts.
    Electronic Cruise Control Button (see Switch Inspec-
    tion(16-111))
    Wiring (see Electronic Cruise Control System Circuit(16
    -88))
  If the above parts are good, replace the meter unit and/or
  ECU.
