16-82 ELECTRICAL SYSTEM
Meter, Gauge, Indicator Unit

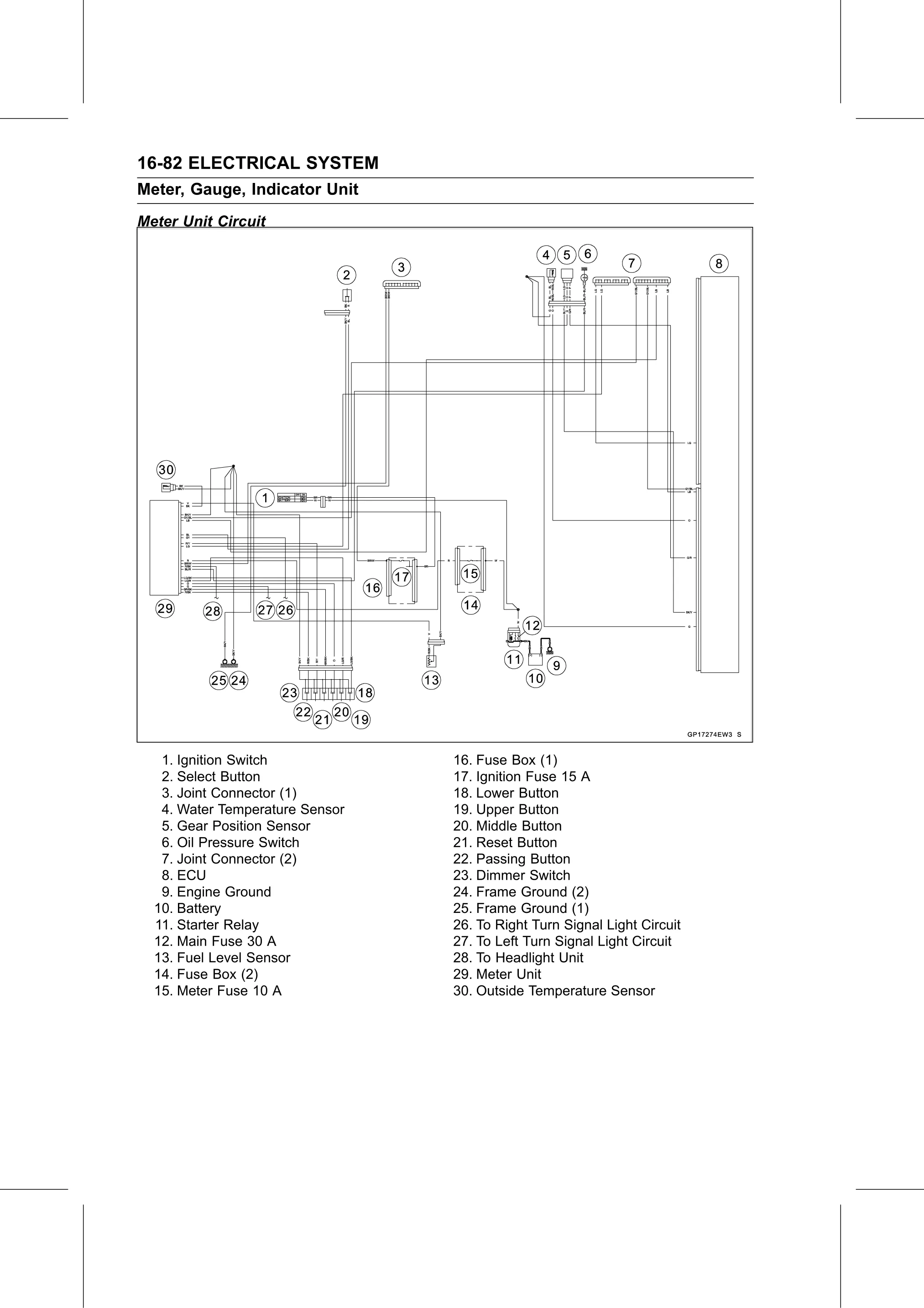

Meter Unit Circuit

   1. Ignition Switch            16. Fuse Box (1)
   2. Select Button              17. Ignition Fuse 15 A
   3. Joint Connector (1)        18. Lower Button
   4. Water Temperature Sensor   19. Upper Button
   5. Gear Position Sensor       20. Middle Button
   6. Oil Pressure Switch        21. Reset Button
   7. Joint Connector (2)        22. Passing Button
   8. ECU                        23. Dimmer Switch
   9. Engine Ground              24. Frame Ground (2)
  10. Battery                    25. Frame Ground (1)
  11. Starter Relay              26. To Right Turn Signal Light Circuit
  12. Main Fuse 30 A             27. To Left Turn Signal Light Circuit
  13. Fuel Level Sensor          28. To Headlight Unit
  14. Fuse Box (2)               29. Meter Unit
  15. Meter Fuse 10 A            30. Outside Temperature Sensor
