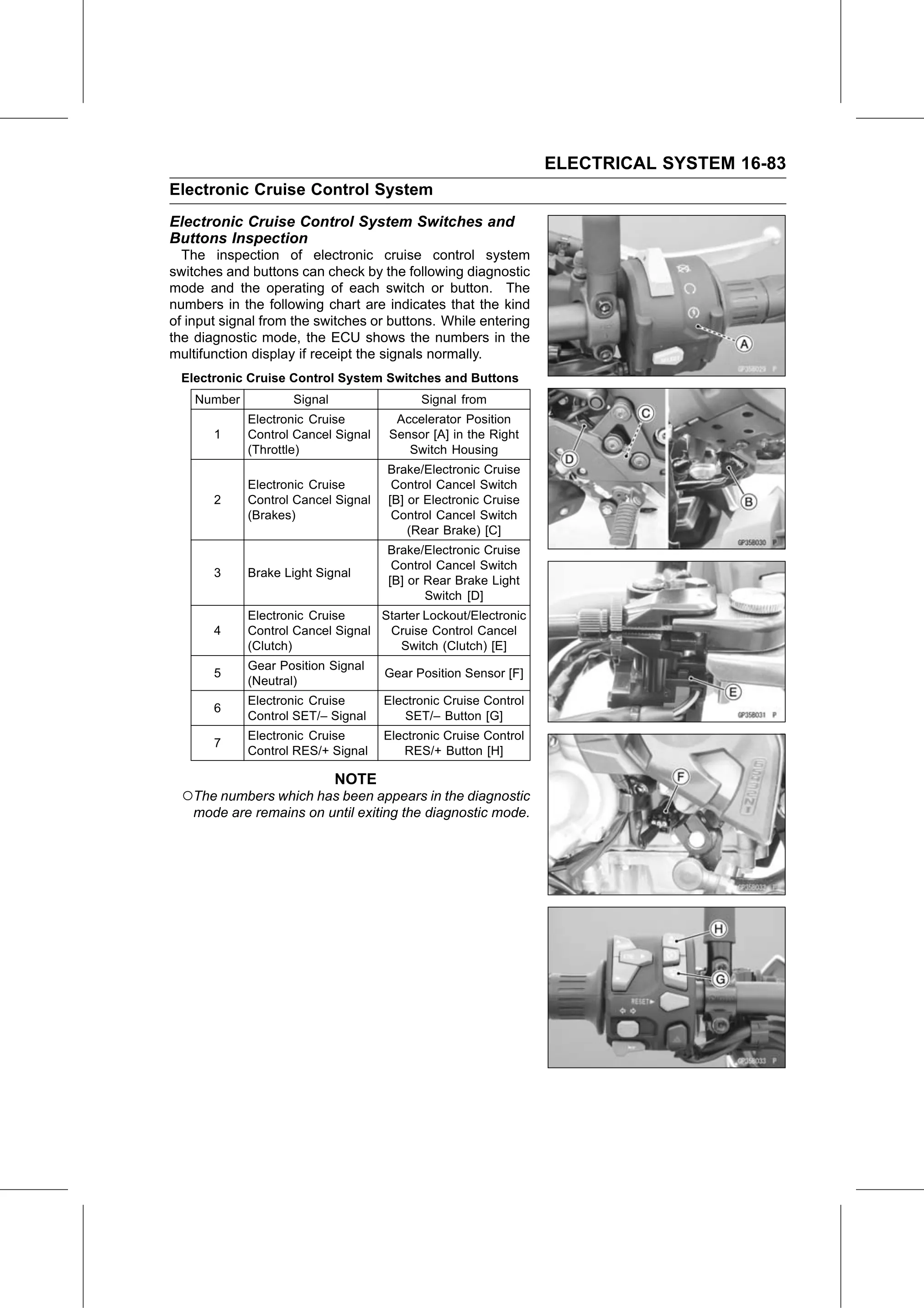

ELECTRICAL SYSTEM 16-83
Electronic Cruise Control System
Electronic Cruise Control System Switches and
Buttons Inspection
  The inspection of electronic cruise control system
switches and buttons can check by the following diagnostic
mode and the operating of each switch or button. The
numbers in the following chart are indicates that the kind
of input signal from the switches or buttons. While entering
the diagnostic mode, the ECU shows the numbers in the
multifunction display if receipt the signals normally.
 Electronic Cruise Control System Switches and Buttons
    Number          Signal                 Signal from
             Electronic Cruise        Accelerator Position
       1     Control Cancel Signal   Sensor [A] in the Right
             (Throttle)                 Switch Housing
                                     Brake/Electronic Cruise
             Electronic Cruise        Control Cancel Switch
       2     Control Cancel Signal   [B] or Electronic Cruise
             (Brakes)                 Control Cancel Switch
                                         (Rear Brake) [C]
                                     Brake/Electronic Cruise
                                      Control Cancel Switch
       3     Brake Light Signal
                                     [B] or Rear Brake Light
                                            Switch [D]
             Electronic Cruise     Starter Lockout/Electronic
       4     Control Cancel Signal  Cruise Control Cancel
             (Clutch)                 Switch (Clutch) [E]
             Gear Position Signal
       5                             Gear Position Sensor [F]
             (Neutral)
             Electronic Cruise       Electronic Cruise Control
       6
             Control SET/– Signal       SET/– Button [G]
             Electronic Cruise       Electronic Cruise Control
       7
             Control RES/+ Signal       RES/+ Button [H]

                             NOTE
 ○The numbers which has been appears in the diagnostic
  mode are remains on until exiting the diagnostic mode.
