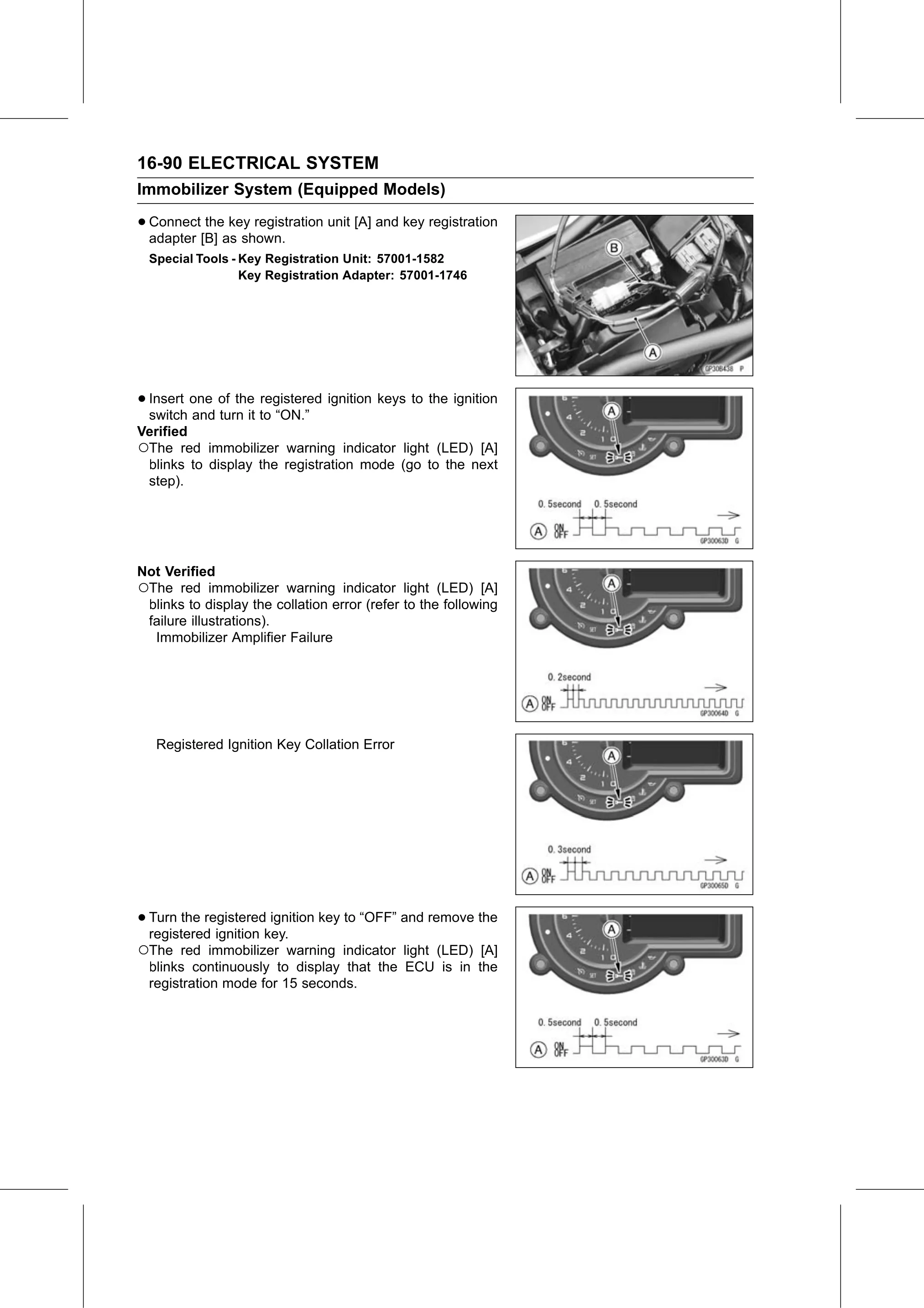

16-90 ELECTRICAL SYSTEM
Immobilizer System (Equipped Models)

• Connect  the key registration unit [A] and key registration
  adapter [B] as shown.
  Special Tools - Key Registration Unit: 57001-1582
                  Key Registration Adapter: 57001-1746

• Insert one of the registered ignition keys to the ignition
  switch and turn it to “ON.”
Verified
○The red immobilizer warning indicator light (LED) [A]
 blinks to display the registration mode (go to the next
 step).

Not Verified
○The red immobilizer warning indicator light (LED) [A]
 blinks to display the collation error (refer to the following
 failure illustrations).
  Immobilizer Amplifier Failure

   Registered Ignition Key Collation Error

• Turn the registered ignition key to “OFF” and remove the
  registered ignition key.
○The red immobilizer warning indicator light (LED) [A]
  blinks continuously to display that the ECU is in the
  registration mode for 15 seconds.
