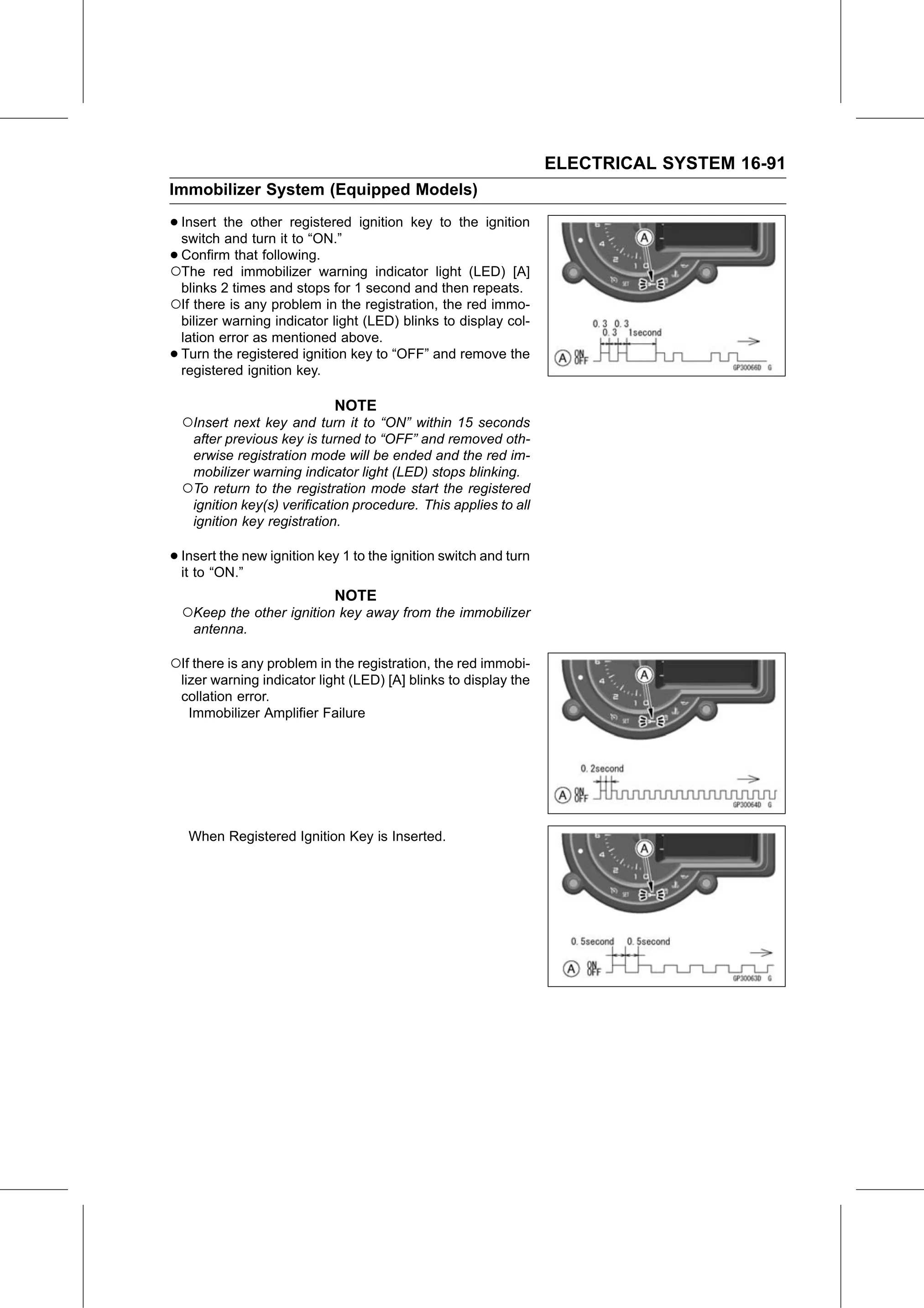

ELECTRICAL SYSTEM 16-91
Immobilizer System (Equipped Models)

• Insert the other registered ignition key to the ignition
  switch and turn it to “ON.”
•○Confirm  that following.
  The red immobilizer warning indicator light (LED) [A]
 blinks 2 times and stops for 1 second and then repeats.
○If there is any problem in the registration, the red immo-
 bilizer warning indicator light (LED) blinks to display col-
 lation error as mentioned above.
•Turn the registered ignition key to “OFF” and remove the
 registered ignition key.

                              NOTE
    ○Insert next key and turn it to “ON” within 15 seconds
     after previous key is turned to “OFF” and removed oth-
     erwise registration mode will be ended and the red im-
     mobilizer warning indicator light (LED) stops blinking.
    ○To return to the registration mode start the registered
     ignition key(s) verification procedure. This applies to all
     ignition key registration.

• Insert the new ignition key 1 to the ignition switch and turn
  it to “ON.”
                              NOTE
    ○Keep the other ignition key away from the immobilizer
      antenna.

○If there is any problem in the registration, the red immobi-
    lizer warning indicator light (LED) [A] blinks to display the
    collation error.
      Immobilizer Amplifier Failure

     When Registered Ignition Key is Inserted.
