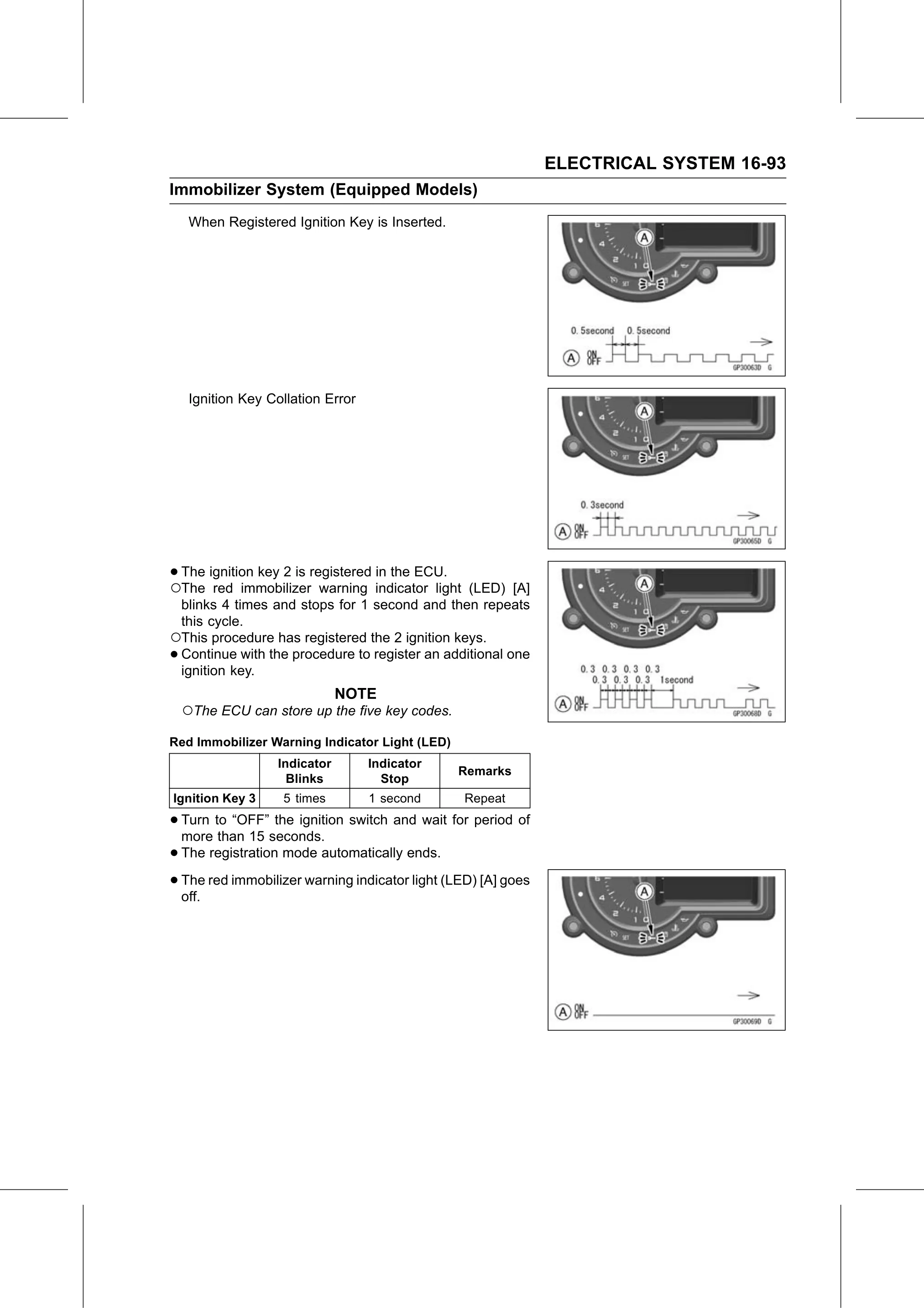

ELECTRICAL SYSTEM 16-93
Immobilizer System (Equipped Models)
     When Registered Ignition Key is Inserted.

     Ignition Key Collation Error

•○The ignition key 2 is registered in the ECU.
  The red immobilizer warning indicator light (LED) [A]
 blinks 4 times and stops for 1 second and then repeats
 this cycle.
○This procedure has registered the 2 ignition keys.
•Continue with the procedure to register an additional one
 ignition key.
                               NOTE
    ○The ECU can store up the five key codes.
Red Immobilizer Warning Indicator Light (LED)
                   Indicator        Indicator
                                                 Remarks
                     Blinks           Stop
Ignition Key 3      5 times         1 second     Repeat

• Turn  to “OFF” the ignition switch and wait for period of
  more than 15 seconds.
• The registration mode automatically ends.
• The
  off.
       red immobilizer warning indicator light (LED) [A] goes
