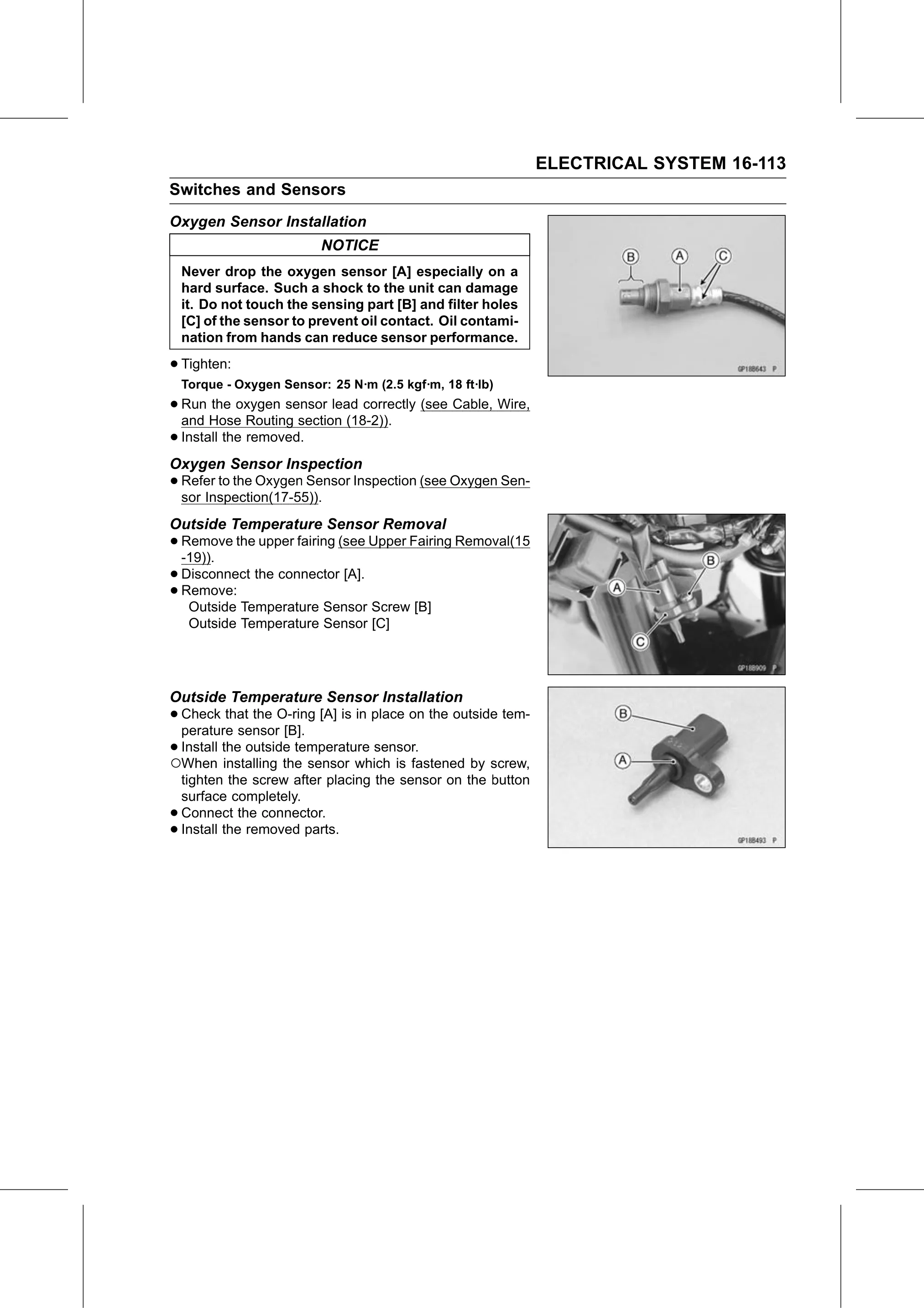

ELECTRICAL SYSTEM 16-113
Switches and Sensors
Oxygen Sensor Installation
                           NOTICE
    Never drop the oxygen sensor [A] especially on a
    hard surface. Such a shock to the unit can damage
    it. Do not touch the sensing part [B] and filter holes
    [C] of the sensor to prevent oil contact. Oil contami-
    nation from hands can reduce sensor performance.

• Tighten:
    Torque - Oxygen Sensor: 25 N·m (2.5 kgf·m, 18 ft·lb)
• Run  the oxygen sensor lead correctly (see Cable, Wire,
  and Hose Routing section (18-2)).
• Install the removed.
Oxygen Sensor Inspection
• Refer to the Oxygen Sensor Inspection (see Oxygen Sen-
  sor Inspection(17-55)).
Outside Temperature Sensor Removal
• Remove
  -19)).
          the upper fairing (see Upper Fairing Removal(15

• Disconnect the connector [A].
• Outside Temperature Sensor Screw [B]
  Remove:

     Outside Temperature Sensor [C]

Outside Temperature Sensor Installation
• Check    that the O-ring [A] is in place on the outside tem-
  perature sensor [B].
•○Install the outside temperature sensor.
  When installing the sensor which is fastened by screw,
    tighten the screw after placing the sensor on the button
    surface completely.
•   Connect the connector.
•   Install the removed parts.
