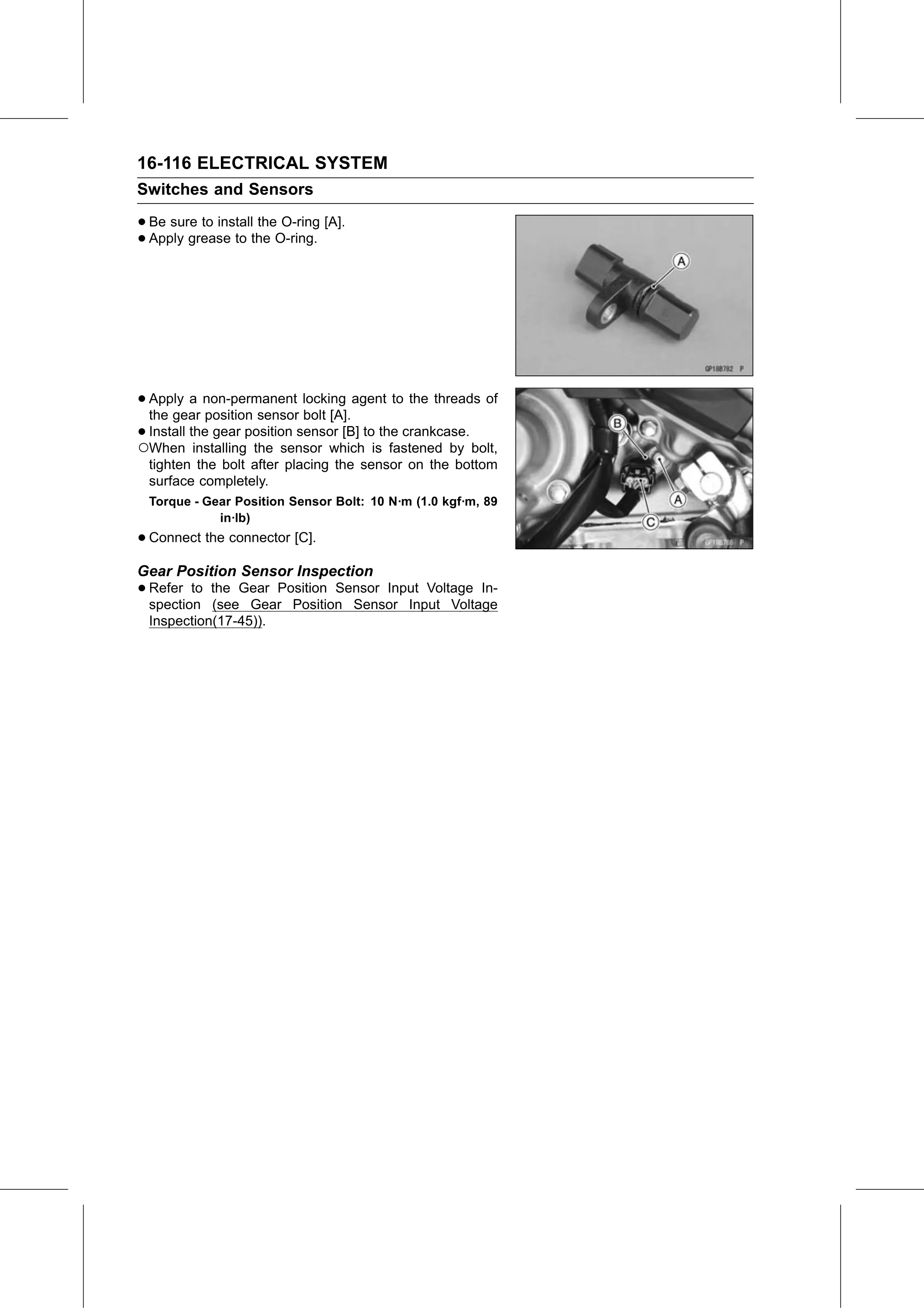

16-116 ELECTRICAL SYSTEM
Switches and Sensors

• Be sure to install the O-ring [A].
• Apply grease to the O-ring.

• Apply   a non-permanent locking agent to the threads of
  the gear position sensor bolt [A].
•○Install the gear position sensor [B] to the crankcase.
  When installing the sensor which is fastened by bolt,
  tighten the bolt after placing the sensor on the bottom
  surface completely.
  Torque - Gear Position Sensor Bolt: 10 N·m (1.0 kgf·m, 89
             in·lb)
• Connect the connector [C].
Gear Position Sensor Inspection
• Refer  to the Gear Position Sensor Input Voltage In-
  spection (see Gear Position Sensor Input Voltage
  Inspection(17-45)).
