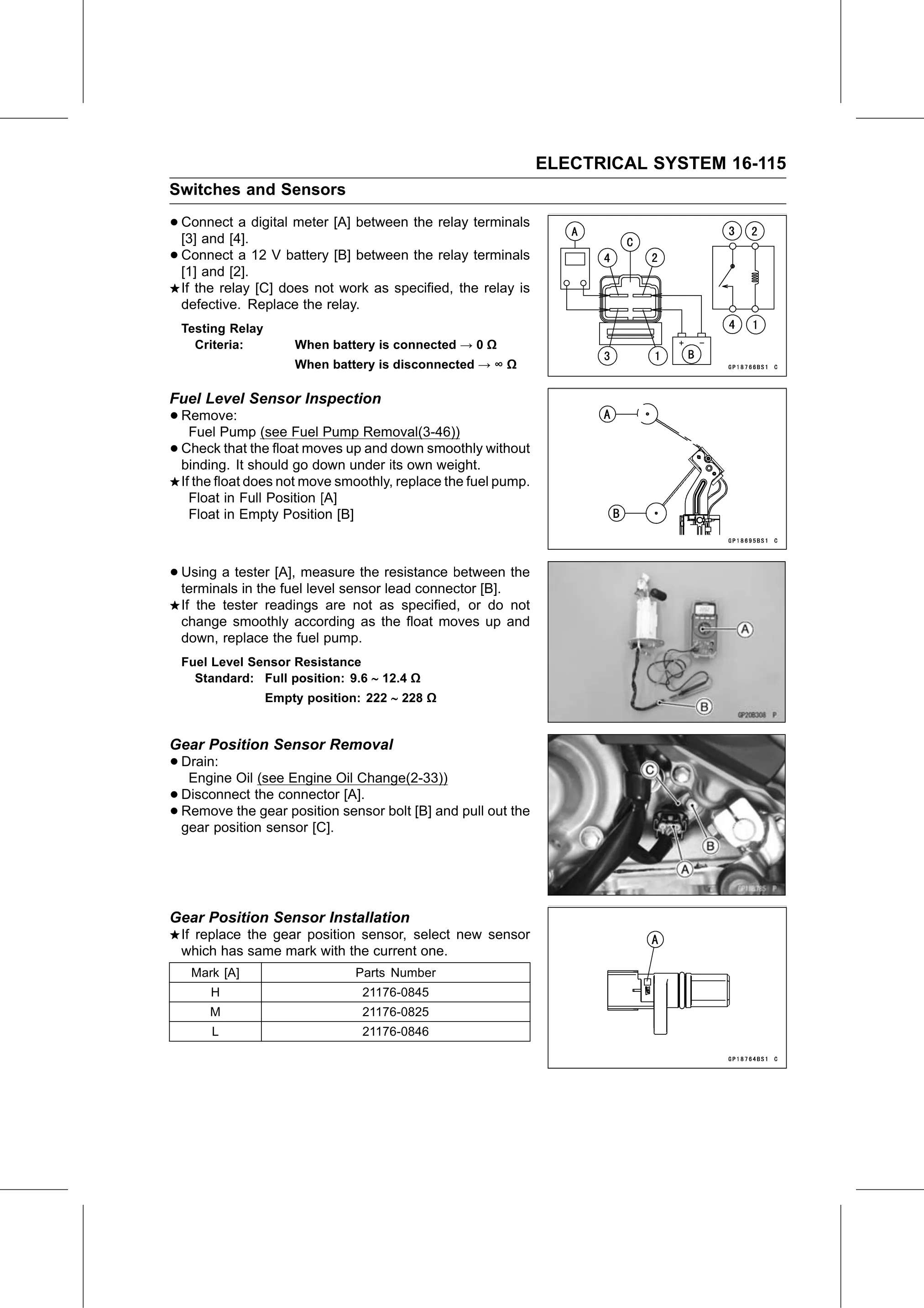

ELECTRICAL SYSTEM 16-115
Switches and Sensors

• Connect   a digital meter [A] between the relay terminals
  [3] and [4].
• Connect   a 12 V battery [B] between the relay terminals
  [1] and [2].
  If the relay [C] does not work as specified, the relay is
  defective. Replace the relay.
  Testing Relay
    Criteria:         When battery is connected → 0 Ω
                      When battery is disconnected → ∞ Ω

Fuel Level Sensor Inspection
• Remove:
   Fuel Pump (see Fuel Pump Removal(3-46))
• binding.thatIt should
  Check          the float moves up and down smoothly without
                         go down under its own weight.
  If the float does not move smoothly, replace the fuel pump.
    Float in Full Position [A]
    Float in Empty Position [B]

• Using a tester [A], measure the resistance between the
  terminals in the fuel level sensor lead connector [B].
  If the tester readings are not as specified, or do not
  change smoothly according as the float moves up and
  down, replace the fuel pump.
  Fuel Level Sensor Resistance
    Standard: Full position: 9.6  12.4 Ω
                  Empty position: 222  228 Ω

Gear Position Sensor Removal
• Drain:
   Engine Oil (see Engine Oil Change(2-33))
• Remove thethe
  Disconnect      connector [A].
• gear position sensor
               gear position sensor bolt [B] and pull out the
                       [C].

Gear Position Sensor Installation
  If replace the gear position sensor, select new sensor
  which has same mark with the current one.
   Mark [A]                     Parts Number
      H                          21176-0845
      M                          21176-0825
       L                         21176-0846
