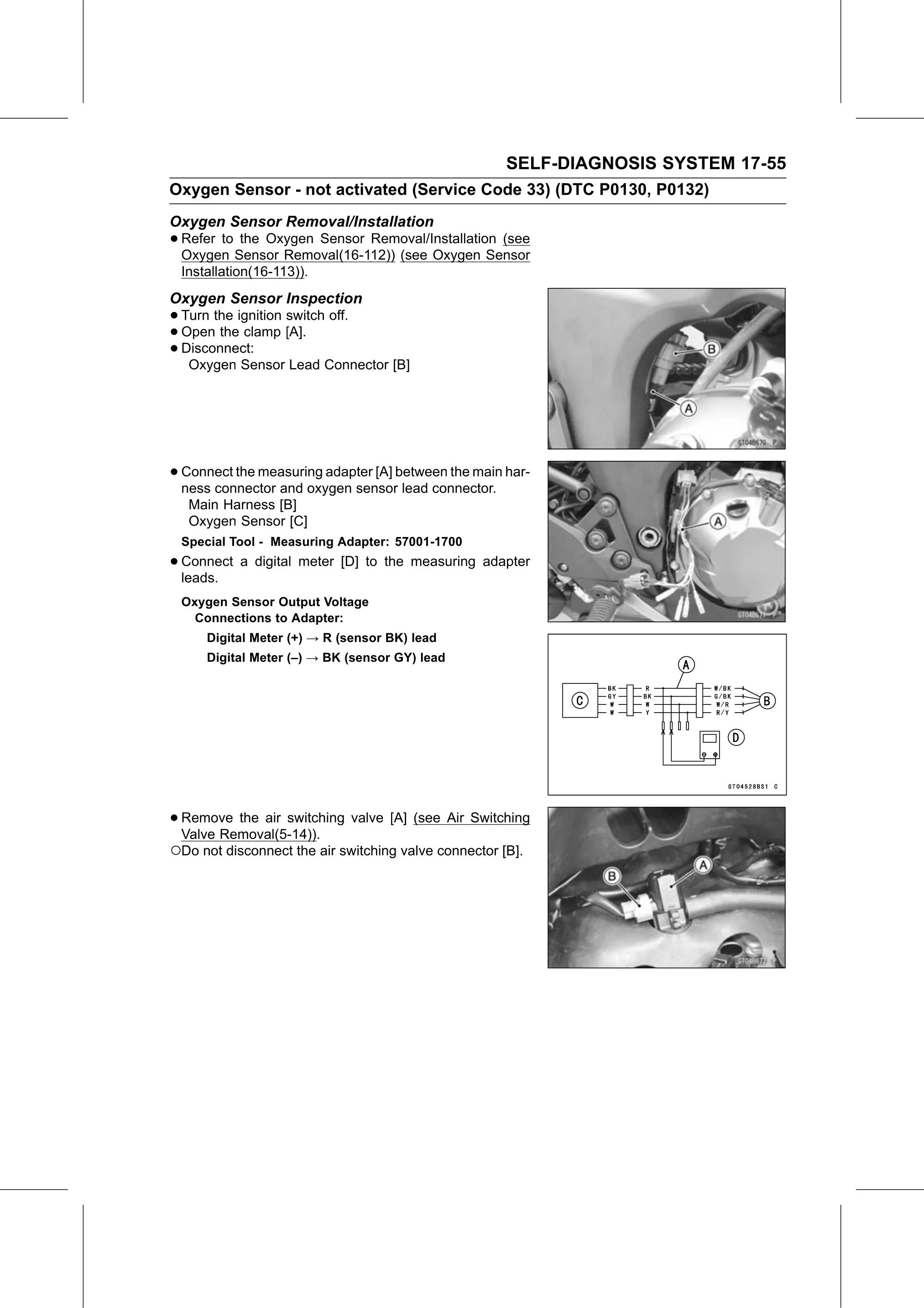

SELF-DIAGNOSIS SYSTEM 17-55
Oxygen Sensor - not activated (Service Code 33) (DTC P0130, P0132)
Oxygen Sensor Removal/Installation
• Refer to the Oxygen Sensor Removal/Installation (see
  Oxygen Sensor Removal(16-112)) (see Oxygen Sensor
 Installation(16-113)).
Oxygen Sensor Inspection
• Turn the ignition switch off.
• Disconnect:
  Open  the clamp [A].
• Oxygen Sensor Lead Connector [B]

• Connect the measuring adapter [A] between the main har-
  ness connector and oxygen sensor lead connector.
   Main Harness [B]
   Oxygen Sensor [C]
 Special Tool - Measuring Adapter: 57001-1700
• Connect
  leads.
          a digital meter [D] to the measuring adapter

 Oxygen Sensor Output Voltage
   Connections to Adapter:
      Digital Meter (+) → R (sensor BK) lead
      Digital Meter (–) → BK (sensor GY) lead

• Remove  the air switching valve [A] (see Air Switching
  Valve Removal(5-14)).
○Do not disconnect the air switching valve connector [B].
