17-86 SELF-DIAGNOSIS SYSTEM
IMU (Inertial Measurement Unit) (Service Code E8E)
 If the reading is out of the specification, check the follow-
 ing.
   Main Fuse 30 A (see Fuse Inspection(16-120))
   Ignition Fuse 15 A (see Fuse Inspection(16-120))
   Power Source and Ground Wirings (see IMU Circuit(17
   -86))
 If the fuses and wirings are good, replace the IMU.
 If the IMU is normal, check the ECU for its ground and
 power supply (see ECU Power Supply Inspection(3-39)).
 If the ground and power supply are good, replace the
 ECU.

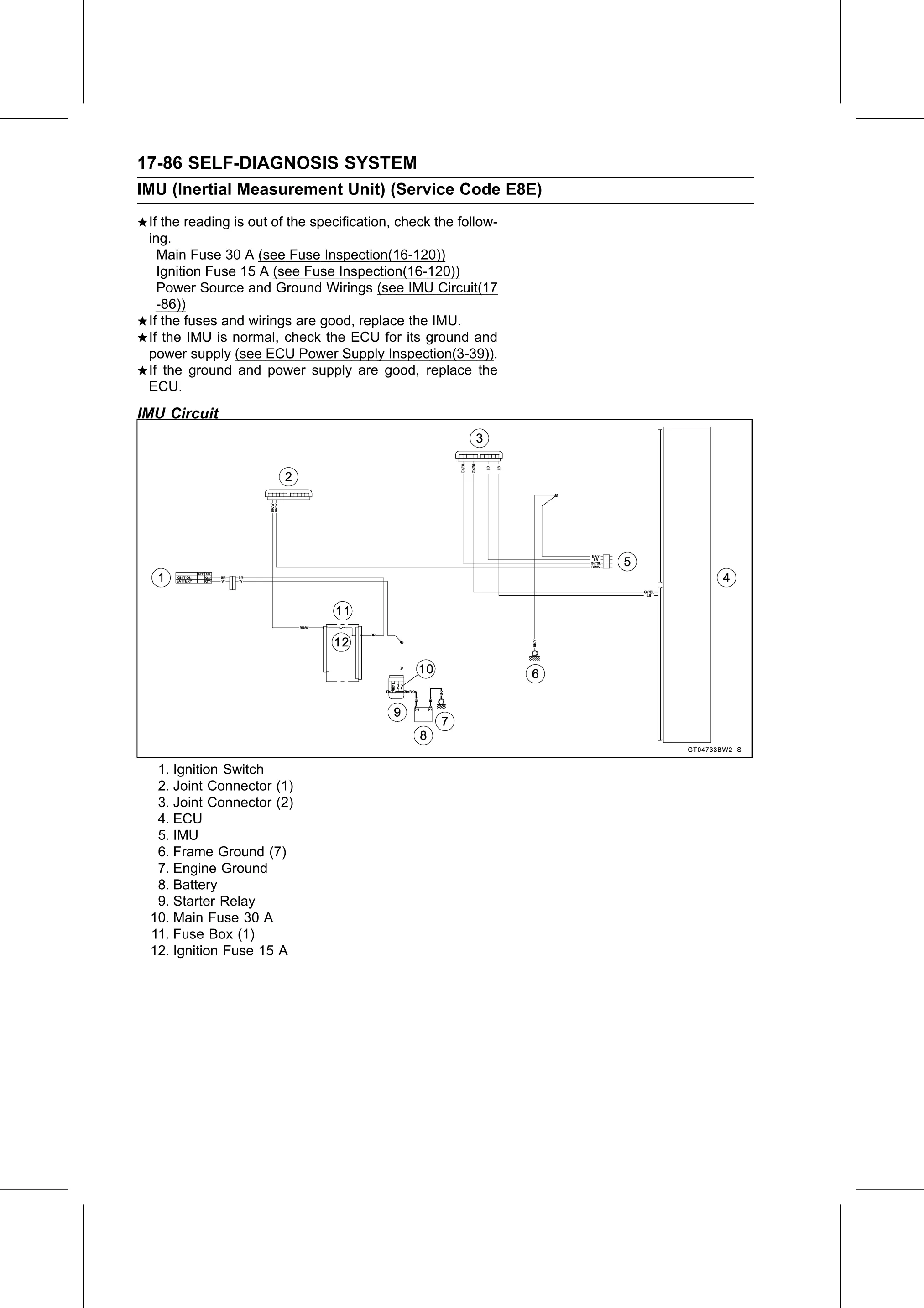

IMU Circuit

  1. Ignition Switch
  2. Joint Connector (1)
  3. Joint Connector (2)
  4. ECU
  5. IMU
  6. Frame Ground (7)
  7. Engine Ground
  8. Battery
  9. Starter Relay
 10. Main Fuse 30 A
 11. Fuse Box (1)
 12. Ignition Fuse 15 A
