18-56 APPENDIX
Cable, Wire, and Hose Routing

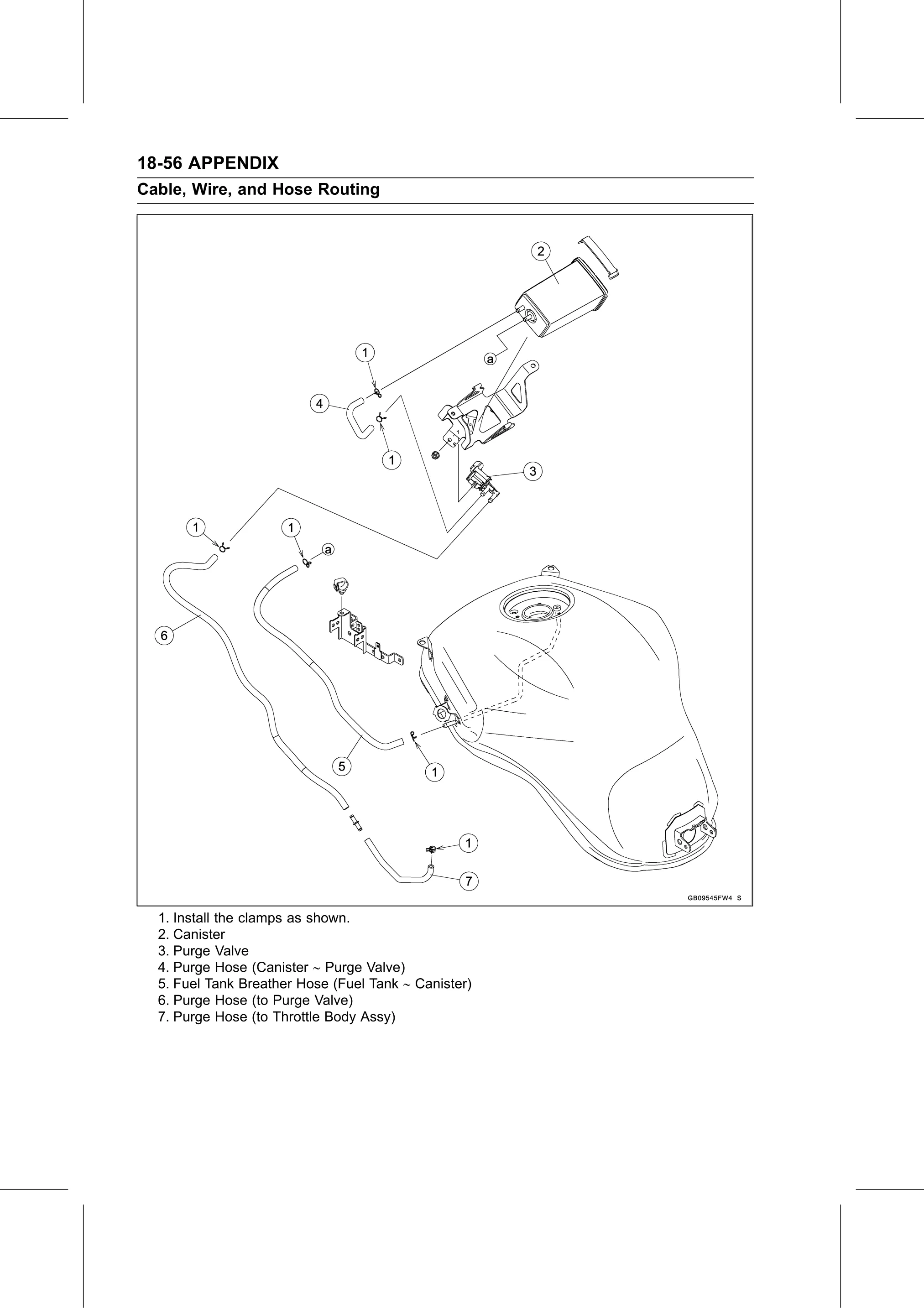

  1. Install the clamps as shown.
  2. Canister
  3. Purge Valve
  4. Purge Hose (Canister  Purge Valve)
  5. Fuel Tank Breather Hose (Fuel Tank  Canister)
  6. Purge Hose (to Purge Valve)
  7. Purge Hose (to Throttle Body Assy)
