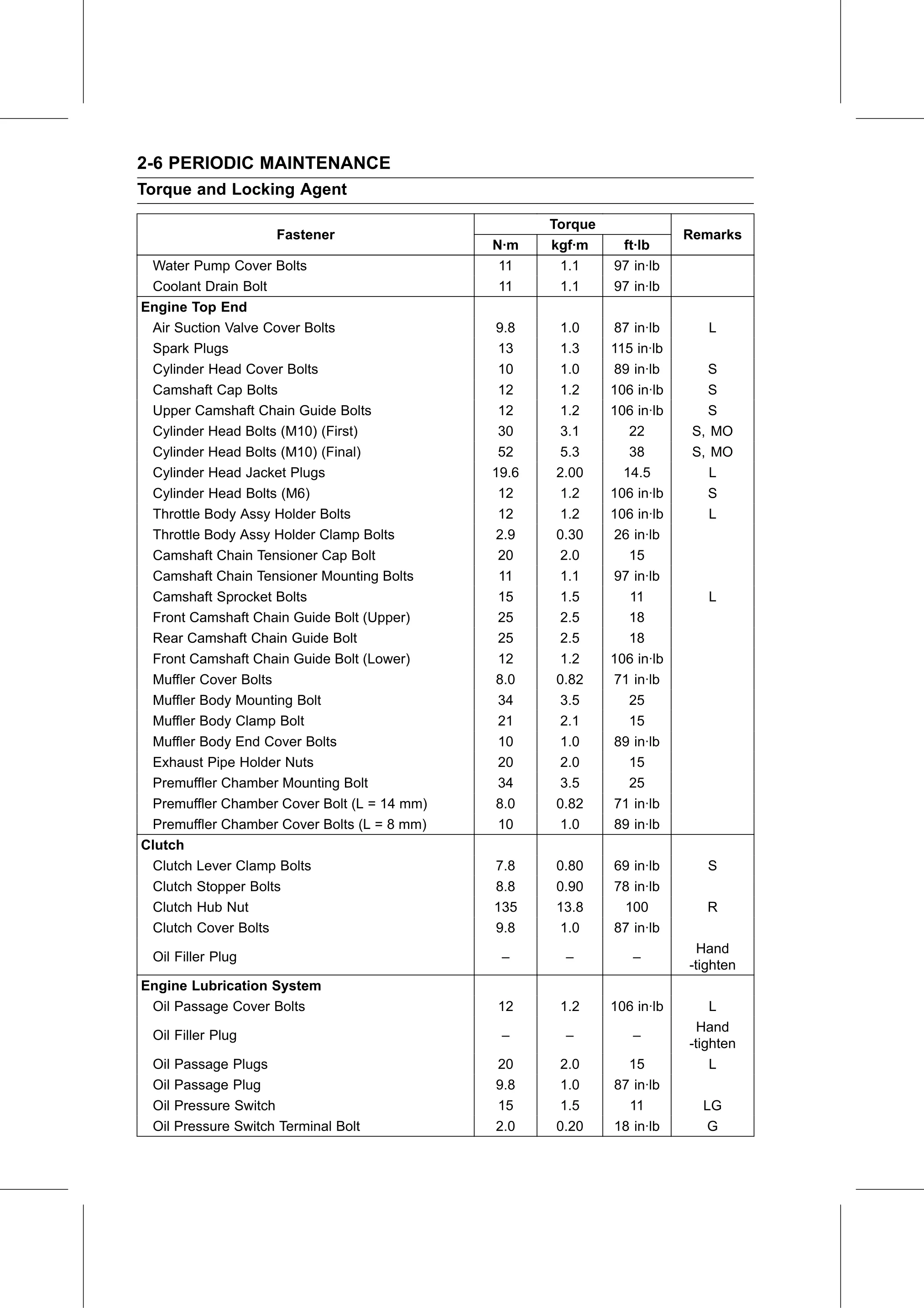

Service Manual — page 28 of 715
Periodic Maintenance › Torque and Locking Agent
Text on this page
2-6 PERIODIC MAINTENANCE
Torque and Locking Agent
Torque
Fastener Remarks
N·m kgf·m ft·lb
Water Pump Cover Bolts 11 1.1 97 in·lb
Coolant Drain Bolt 11 1.1 97 in·lb
Engine Top End
Air Suction Valve Cover Bolts 9.8 1.0 87 in·lb L
Spark Plugs 13 1.3 115 in·lb
Cylinder Head Cover Bolts 10 1.0 89 in·lb S
Camshaft Cap Bolts 12 1.2 106 in·lb S
Upper Camshaft Chain Guide Bolts 12 1.2 106 in·lb S
Cylinder Head Bolts (M10) (First) 30 3.1 22 S, MO
Cylinder Head Bolts (M10) (Final) 52 5.3 38 S, MO
Cylinder Head Jacket Plugs 19.6 2.00 14.5 L
Cylinder Head Bolts (M6) 12 1.2 106 in·lb S
Throttle Body Assy Holder Bolts 12 1.2 106 in·lb L
Throttle Body Assy Holder Clamp Bolts 2.9 0.30 26 in·lb
Camshaft Chain Tensioner Cap Bolt 20 2.0 15
Camshaft Chain Tensioner Mounting Bolts 11 1.1 97 in·lb
Camshaft Sprocket Bolts 15 1.5 11 L
Front Camshaft Chain Guide Bolt (Upper) 25 2.5 18
Rear Camshaft Chain Guide Bolt 25 2.5 18
Front Camshaft Chain Guide Bolt (Lower) 12 1.2 106 in·lb
Muffler Cover Bolts 8.0 0.82 71 in·lb
Muffler Body Mounting Bolt 34 3.5 25
Muffler Body Clamp Bolt 21 2.1 15
Muffler Body End Cover Bolts 10 1.0 89 in·lb
Exhaust Pipe Holder Nuts 20 2.0 15
Premuffler Chamber Mounting Bolt 34 3.5 25
Premuffler Chamber Cover Bolt (L = 14 mm) 8.0 0.82 71 in·lb
Premuffler Chamber Cover Bolts (L = 8 mm) 10 1.0 89 in·lb
Clutch
Clutch Lever Clamp Bolts 7.8 0.80 69 in·lb S
Clutch Stopper Bolts 8.8 0.90 78 in·lb
Clutch Hub Nut 135 13.8 100 R
Clutch Cover Bolts 9.8 1.0 87 in·lb
Hand
Oil Filler Plug – – –
-tighten
Engine Lubrication System
Oil Passage Cover Bolts 12 1.2 106 in·lb L
Hand
Oil Filler Plug – – –
-tighten
Oil Passage Plugs 20 2.0 15 L
Oil Passage Plug 9.8 1.0 87 in·lb
Oil Pressure Switch 15 1.5 11 LG
Oil Pressure Switch Terminal Bolt 2.0 0.20 18 in·lb G
