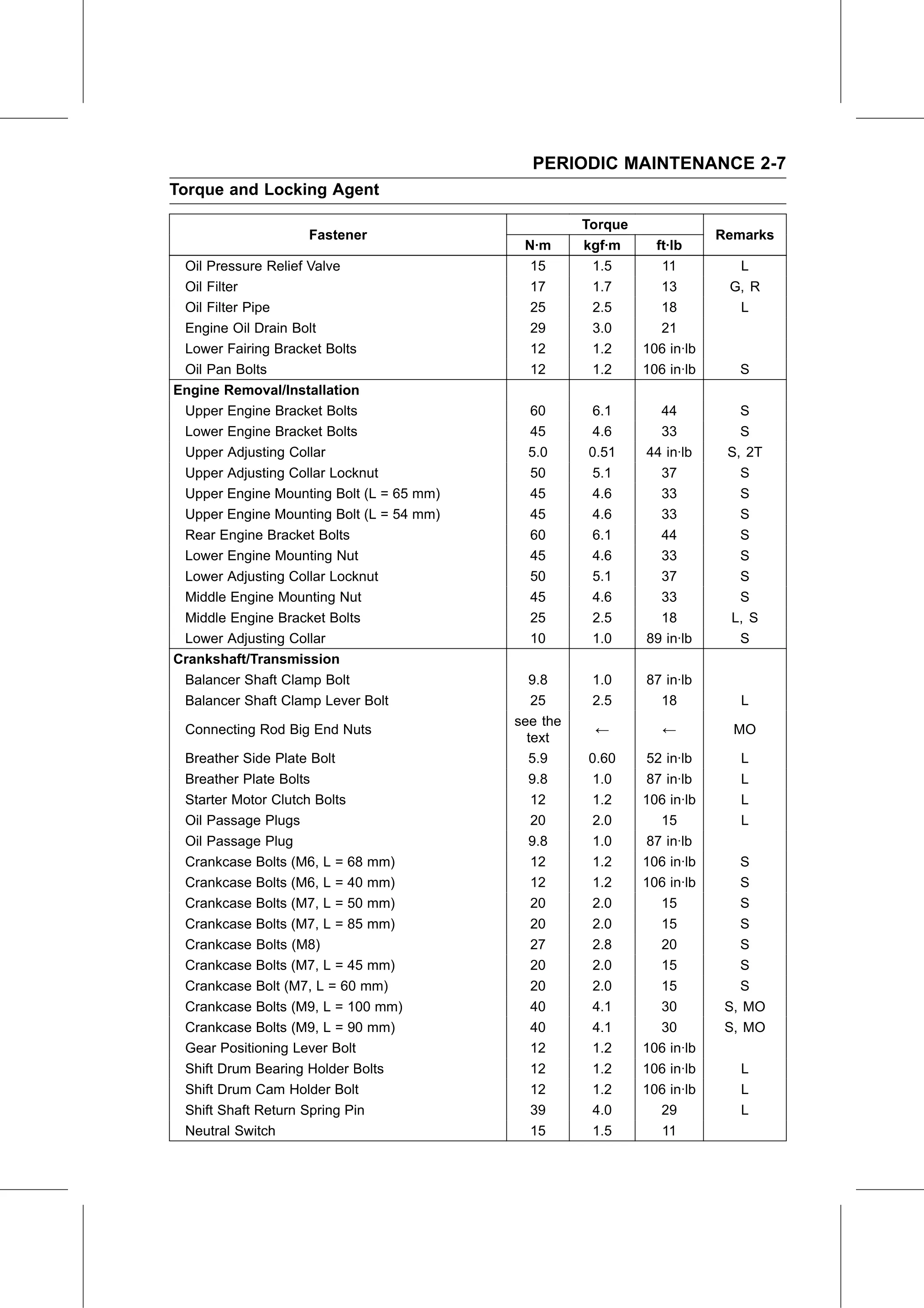

Service Manual — page 29 of 715
Periodic Maintenance › Torque and Locking Agent
Text on this page
PERIODIC MAINTENANCE 2-7
Torque and Locking Agent
Torque
Fastener Remarks
N·m kgf·m ft·lb
Oil Pressure Relief Valve 15 1.5 11 L
Oil Filter 17 1.7 13 G, R
Oil Filter Pipe 25 2.5 18 L
Engine Oil Drain Bolt 29 3.0 21
Lower Fairing Bracket Bolts 12 1.2 106 in·lb
Oil Pan Bolts 12 1.2 106 in·lb S
Engine Removal/Installation
Upper Engine Bracket Bolts 60 6.1 44 S
Lower Engine Bracket Bolts 45 4.6 33 S
Upper Adjusting Collar 5.0 0.51 44 in·lb S, 2T
Upper Adjusting Collar Locknut 50 5.1 37 S
Upper Engine Mounting Bolt (L = 65 mm) 45 4.6 33 S
Upper Engine Mounting Bolt (L = 54 mm) 45 4.6 33 S
Rear Engine Bracket Bolts 60 6.1 44 S
Lower Engine Mounting Nut 45 4.6 33 S
Lower Adjusting Collar Locknut 50 5.1 37 S
Middle Engine Mounting Nut 45 4.6 33 S
Middle Engine Bracket Bolts 25 2.5 18 L, S
Lower Adjusting Collar 10 1.0 89 in·lb S
Crankshaft/Transmission
Balancer Shaft Clamp Bolt 9.8 1.0 87 in·lb
Balancer Shaft Clamp Lever Bolt 25 2.5 18 L
see the
Connecting Rod Big End Nuts ← ← MO
text
Breather Side Plate Bolt 5.9 0.60 52 in·lb L
Breather Plate Bolts 9.8 1.0 87 in·lb L
Starter Motor Clutch Bolts 12 1.2 106 in·lb L
Oil Passage Plugs 20 2.0 15 L
Oil Passage Plug 9.8 1.0 87 in·lb
Crankcase Bolts (M6, L = 68 mm) 12 1.2 106 in·lb S
Crankcase Bolts (M6, L = 40 mm) 12 1.2 106 in·lb S
Crankcase Bolts (M7, L = 50 mm) 20 2.0 15 S
Crankcase Bolts (M7, L = 85 mm) 20 2.0 15 S
Crankcase Bolts (M8) 27 2.8 20 S
Crankcase Bolts (M7, L = 45 mm) 20 2.0 15 S
Crankcase Bolt (M7, L = 60 mm) 20 2.0 15 S
Crankcase Bolts (M9, L = 100 mm) 40 4.1 30 S, MO
Crankcase Bolts (M9, L = 90 mm) 40 4.1 30 S, MO
Gear Positioning Lever Bolt 12 1.2 106 in·lb
Shift Drum Bearing Holder Bolts 12 1.2 106 in·lb L
Shift Drum Cam Holder Bolt 12 1.2 106 in·lb L
Shift Shaft Return Spring Pin 39 4.0 29 L
Neutral Switch 15 1.5 11
