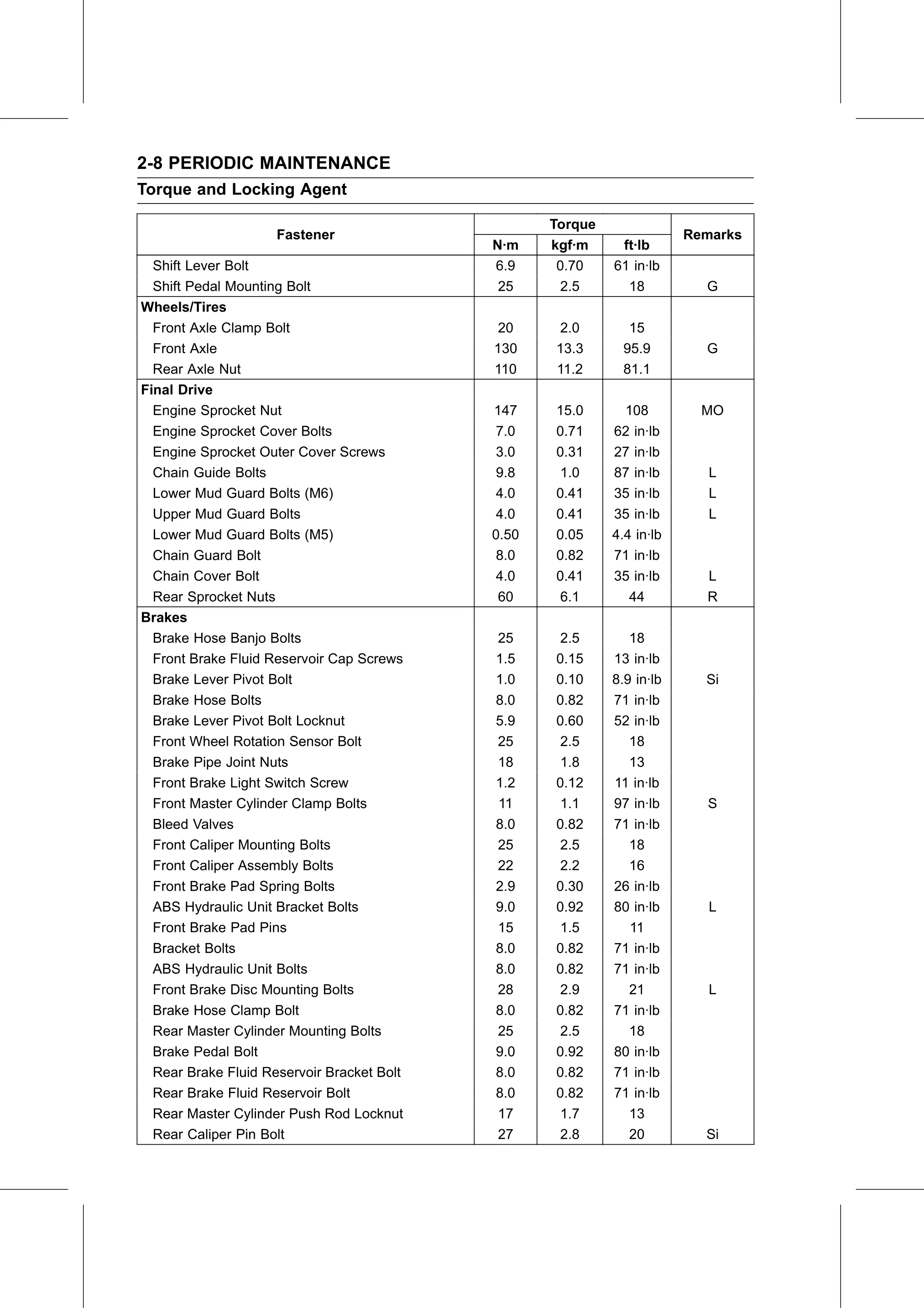

2-8 PERIODIC MAINTENANCE
Torque and Locking Agent
Torque
Fastener Remarks
N·m kgf·m ft·lb
Shift Lever Bolt 6.9 0.70 61 in·lb
Shift Pedal Mounting Bolt 25 2.5 18 G
Wheels/Tires
Front Axle Clamp Bolt 20 2.0 15
Front Axle 130 13.3 95.9 G
Rear Axle Nut 110 11.2 81.1
Final Drive
Engine Sprocket Nut 147 15.0 108 MO
Engine Sprocket Cover Bolts 7.0 0.71 62 in·lb
Engine Sprocket Outer Cover Screws 3.0 0.31 27 in·lb
Chain Guide Bolts 9.8 1.0 87 in·lb L
Lower Mud Guard Bolts (M6) 4.0 0.41 35 in·lb L
Upper Mud Guard Bolts 4.0 0.41 35 in·lb L
Lower Mud Guard Bolts (M5) 0.50 0.05 4.4 in·lb
Chain Guard Bolt 8.0 0.82 71 in·lb
Chain Cover Bolt 4.0 0.41 35 in·lb L
Rear Sprocket Nuts 60 6.1 44 R
Brakes
Brake Hose Banjo Bolts 25 2.5 18
Front Brake Fluid Reservoir Cap Screws 1.5 0.15 13 in·lb
Brake Lever Pivot Bolt 1.0 0.10 8.9 in·lb Si
Brake Hose Bolts 8.0 0.82 71 in·lb
Brake Lever Pivot Bolt Locknut 5.9 0.60 52 in·lb
Front Wheel Rotation Sensor Bolt 25 2.5 18
Brake Pipe Joint Nuts 18 1.8 13
Front Brake Light Switch Screw 1.2 0.12 11 in·lb
Front Master Cylinder Clamp Bolts 11 1.1 97 in·lb S
Bleed Valves 8.0 0.82 71 in·lb
Front Caliper Mounting Bolts 25 2.5 18
Front Caliper Assembly Bolts 22 2.2 16
Front Brake Pad Spring Bolts 2.9 0.30 26 in·lb
ABS Hydraulic Unit Bracket Bolts 9.0 0.92 80 in·lb L
Front Brake Pad Pins 15 1.5 11
Bracket Bolts 8.0 0.82 71 in·lb
ABS Hydraulic Unit Bolts 8.0 0.82 71 in·lb
Front Brake Disc Mounting Bolts 28 2.9 21 L
Brake Hose Clamp Bolt 8.0 0.82 71 in·lb
Rear Master Cylinder Mounting Bolts 25 2.5 18
Brake Pedal Bolt 9.0 0.92 80 in·lb
Rear Brake Fluid Reservoir Bracket Bolt 8.0 0.82 71 in·lb
Rear Brake Fluid Reservoir Bolt 8.0 0.82 71 in·lb
Rear Master Cylinder Push Rod Locknut 17 1.7 13
Rear Caliper Pin Bolt 27 2.8 20 Si
