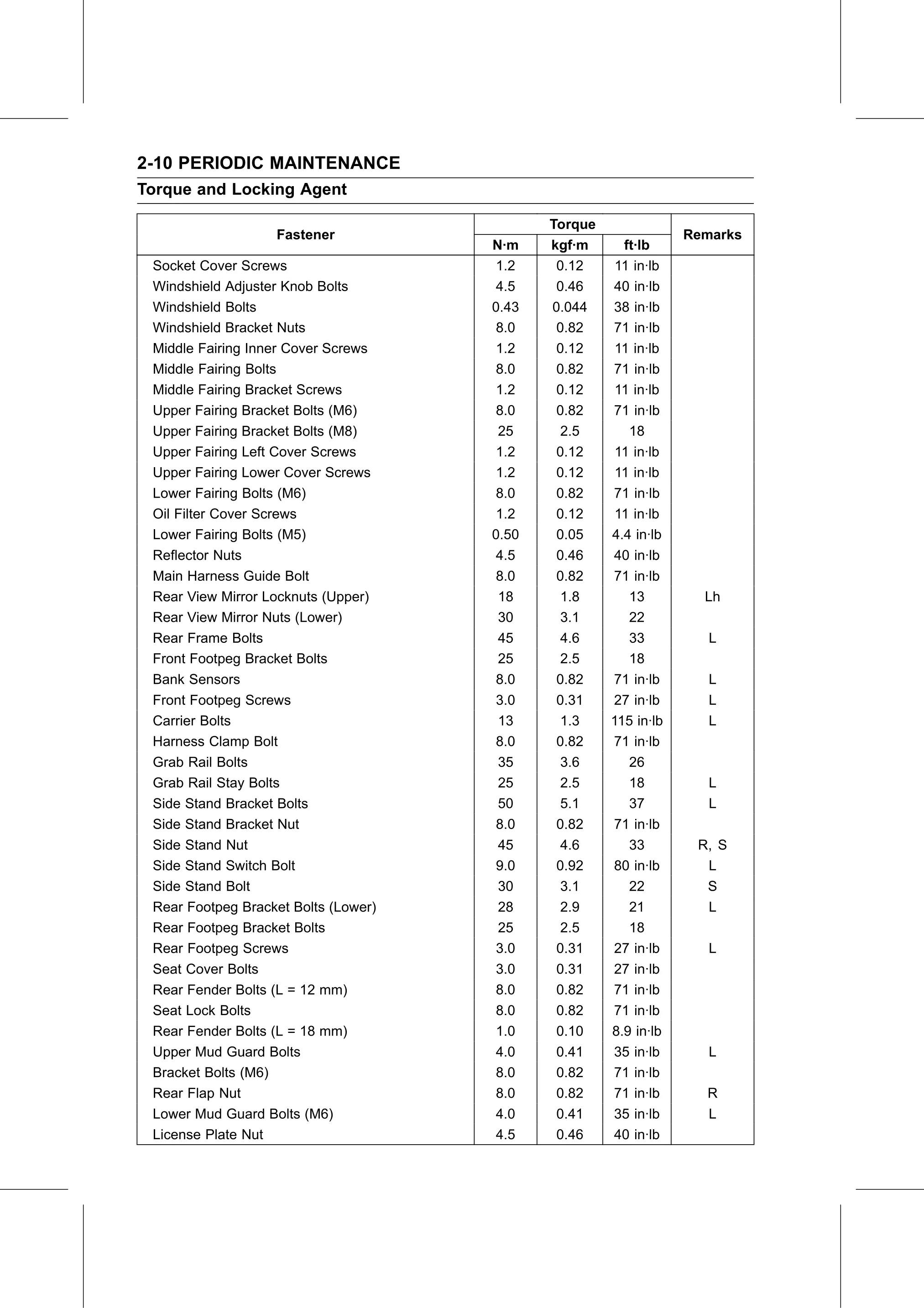

2-10 PERIODIC MAINTENANCE
Torque and Locking Agent
Torque
Fastener Remarks
N·m kgf·m ft·lb
Socket Cover Screws 1.2 0.12 11 in·lb
Windshield Adjuster Knob Bolts 4.5 0.46 40 in·lb
Windshield Bolts 0.43 0.044 38 in·lb
Windshield Bracket Nuts 8.0 0.82 71 in·lb
Middle Fairing Inner Cover Screws 1.2 0.12 11 in·lb
Middle Fairing Bolts 8.0 0.82 71 in·lb
Middle Fairing Bracket Screws 1.2 0.12 11 in·lb
Upper Fairing Bracket Bolts (M6) 8.0 0.82 71 in·lb
Upper Fairing Bracket Bolts (M8) 25 2.5 18
Upper Fairing Left Cover Screws 1.2 0.12 11 in·lb
Upper Fairing Lower Cover Screws 1.2 0.12 11 in·lb
Lower Fairing Bolts (M6) 8.0 0.82 71 in·lb
Oil Filter Cover Screws 1.2 0.12 11 in·lb
Lower Fairing Bolts (M5) 0.50 0.05 4.4 in·lb
Reflector Nuts 4.5 0.46 40 in·lb
Main Harness Guide Bolt 8.0 0.82 71 in·lb
Rear View Mirror Locknuts (Upper) 18 1.8 13 Lh
Rear View Mirror Nuts (Lower) 30 3.1 22
Rear Frame Bolts 45 4.6 33 L
Front Footpeg Bracket Bolts 25 2.5 18
Bank Sensors 8.0 0.82 71 in·lb L
Front Footpeg Screws 3.0 0.31 27 in·lb L
Carrier Bolts 13 1.3 115 in·lb L
Harness Clamp Bolt 8.0 0.82 71 in·lb
Grab Rail Bolts 35 3.6 26
Grab Rail Stay Bolts 25 2.5 18 L
Side Stand Bracket Bolts 50 5.1 37 L
Side Stand Bracket Nut 8.0 0.82 71 in·lb
Side Stand Nut 45 4.6 33 R, S
Side Stand Switch Bolt 9.0 0.92 80 in·lb L
Side Stand Bolt 30 3.1 22 S
Rear Footpeg Bracket Bolts (Lower) 28 2.9 21 L
Rear Footpeg Bracket Bolts 25 2.5 18
Rear Footpeg Screws 3.0 0.31 27 in·lb L
Seat Cover Bolts 3.0 0.31 27 in·lb
Rear Fender Bolts (L = 12 mm) 8.0 0.82 71 in·lb
Seat Lock Bolts 8.0 0.82 71 in·lb
Rear Fender Bolts (L = 18 mm) 1.0 0.10 8.9 in·lb
Upper Mud Guard Bolts 4.0 0.41 35 in·lb L
Bracket Bolts (M6) 8.0 0.82 71 in·lb
Rear Flap Nut 8.0 0.82 71 in·lb R
Lower Mud Guard Bolts (M6) 4.0 0.41 35 in·lb L
License Plate Nut 4.5 0.46 40 in·lb
