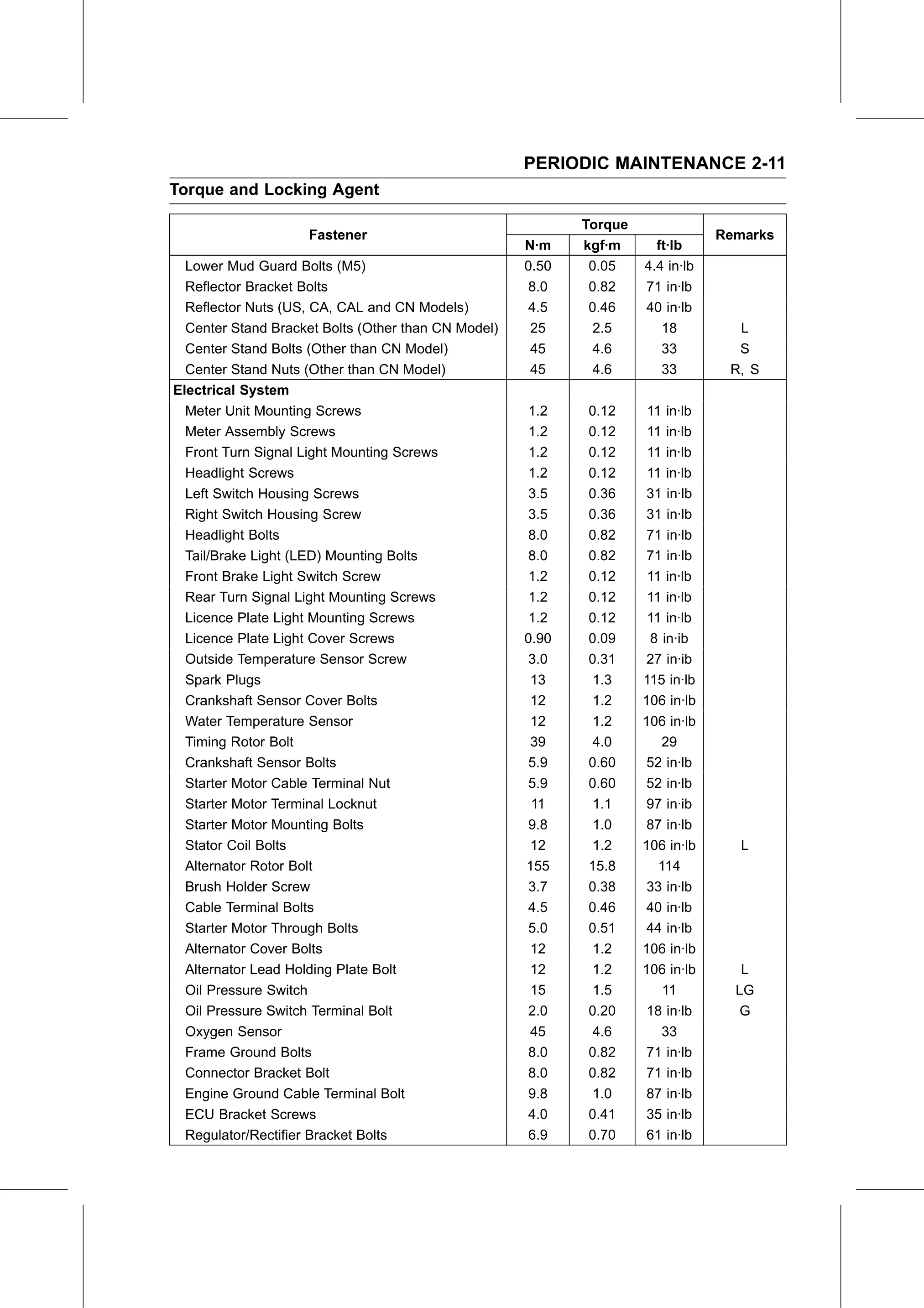

PERIODIC MAINTENANCE 2-11
Torque and Locking Agent
Torque
Fastener Remarks
N·m kgf·m ft·lb
Lower Mud Guard Bolts (M5) 0.50 0.05 4.4 in·lb
Reflector Bracket Bolts 8.0 0.82 71 in·lb
Reflector Nuts (US, CA, CAL and CN Models) 4.5 0.46 40 in·lb
Center Stand Bracket Bolts (Other than CN Model) 25 2.5 18 L
Center Stand Bolts (Other than CN Model) 45 4.6 33 S
Center Stand Nuts (Other than CN Model) 45 4.6 33 R, S
Electrical System
Meter Unit Mounting Screws 1.2 0.12 11 in·lb
Meter Assembly Screws 1.2 0.12 11 in·lb
Front Turn Signal Light Mounting Screws 1.2 0.12 11 in·lb
Headlight Screws 1.2 0.12 11 in·lb
Left Switch Housing Screws 3.5 0.36 31 in·lb
Right Switch Housing Screw 3.5 0.36 31 in·lb
Headlight Bolts 8.0 0.82 71 in·lb
Tail/Brake Light (LED) Mounting Bolts 8.0 0.82 71 in·lb
Front Brake Light Switch Screw 1.2 0.12 11 in·lb
Rear Turn Signal Light Mounting Screws 1.2 0.12 11 in·lb
Licence Plate Light Mounting Screws 1.2 0.12 11 in·lb
Licence Plate Light Cover Screws 0.90 0.09 8 in·ib
Outside Temperature Sensor Screw 3.0 0.31 27 in·ib
Spark Plugs 13 1.3 115 in·lb
Crankshaft Sensor Cover Bolts 12 1.2 106 in·lb
Water Temperature Sensor 12 1.2 106 in·lb
Timing Rotor Bolt 39 4.0 29
Crankshaft Sensor Bolts 5.9 0.60 52 in·lb
Starter Motor Cable Terminal Nut 5.9 0.60 52 in·lb
Starter Motor Terminal Locknut 11 1.1 97 in·ib
Starter Motor Mounting Bolts 9.8 1.0 87 in·lb
Stator Coil Bolts 12 1.2 106 in·lb L
Alternator Rotor Bolt 155 15.8 114
Brush Holder Screw 3.7 0.38 33 in·lb
Cable Terminal Bolts 4.5 0.46 40 in·lb
Starter Motor Through Bolts 5.0 0.51 44 in·lb
Alternator Cover Bolts 12 1.2 106 in·lb
Alternator Lead Holding Plate Bolt 12 1.2 106 in·lb L
Oil Pressure Switch 15 1.5 11 LG
Oil Pressure Switch Terminal Bolt 2.0 0.20 18 in·lb G
Oxygen Sensor 45 4.6 33
Frame Ground Bolts 8.0 0.82 71 in·lb
Connector Bracket Bolt 8.0 0.82 71 in·lb
Engine Ground Cable Terminal Bolt 9.8 1.0 87 in·lb
ECU Bracket Screws 4.0 0.41 35 in·lb
Regulator/Rectifier Bracket Bolts 6.9 0.70 61 in·lb
