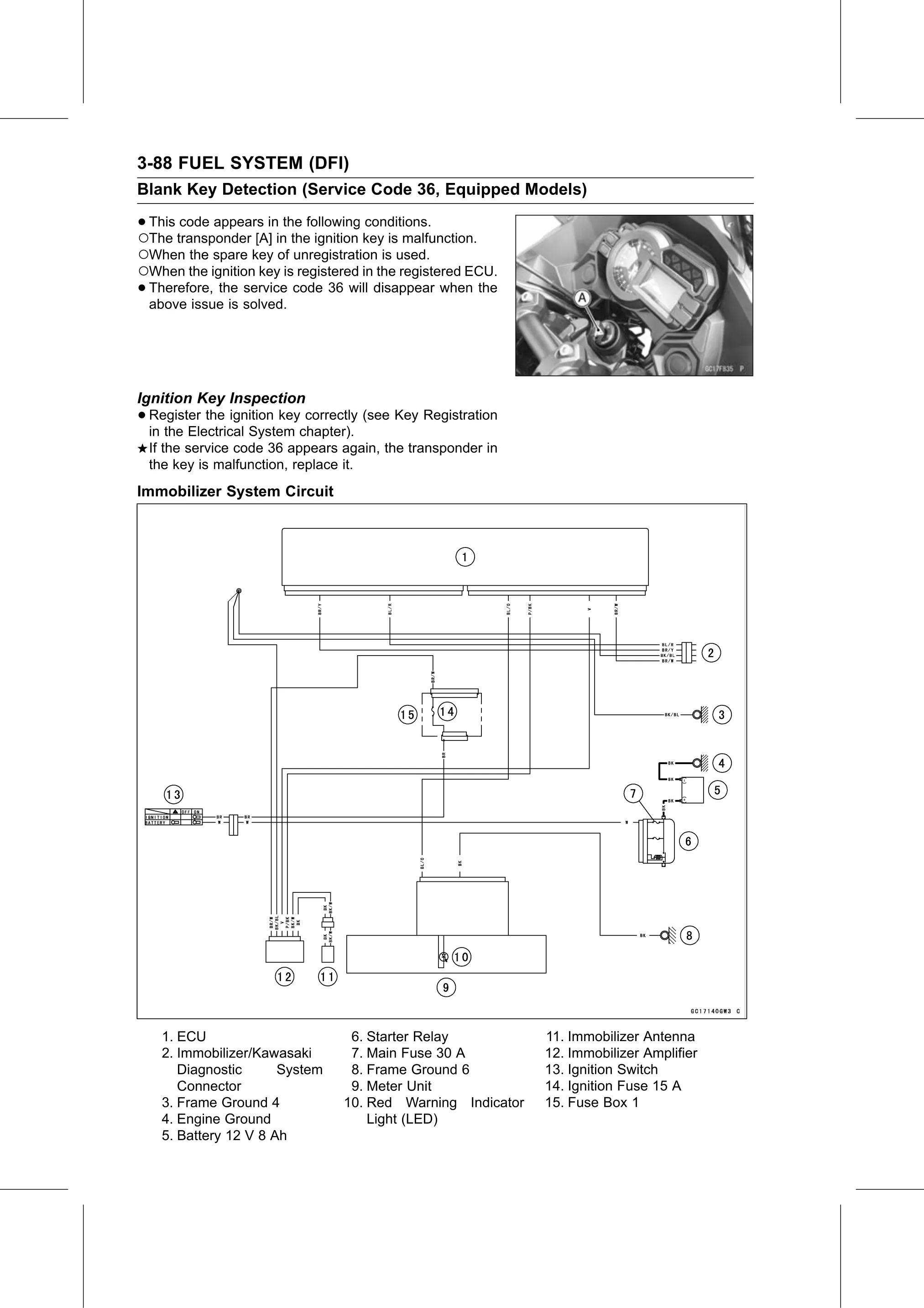

3-88 FUEL SYSTEM (DFI)
Blank Key Detection (Service Code 36, Equipped Models)

•○This code appears in the following conditions.
  The transponder [A] in the ignition key is malfunction.
○When the spare key of unregistration is used.
○When the ignition key is registered in the registered ECU.
• Therefore, the service code 36 will disappear when the
  above issue is solved.

Ignition Key Inspection
• Register  the ignition key correctly (see Key Registration
  in the Electrical System chapter).
 If the service code 36 appears again, the transponder in
 the key is malfunction, replace it.
Immobilizer System Circuit

    1. ECU                         6. Starter Relay            11. Immobilizer Antenna
    2. Immobilizer/Kawasaki        7. Main Fuse 30 A           12. Immobilizer Amplifier
       Diagnostic      System      8. Frame Ground 6           13. Ignition Switch
       Connector                   9. Meter Unit               14. Ignition Fuse 15 A
    3. Frame Ground 4             10. Red Warning Indicator    15. Fuse Box 1
    4. Engine Ground                  Light (LED)
    5. Battery 12 V 8 Ah
