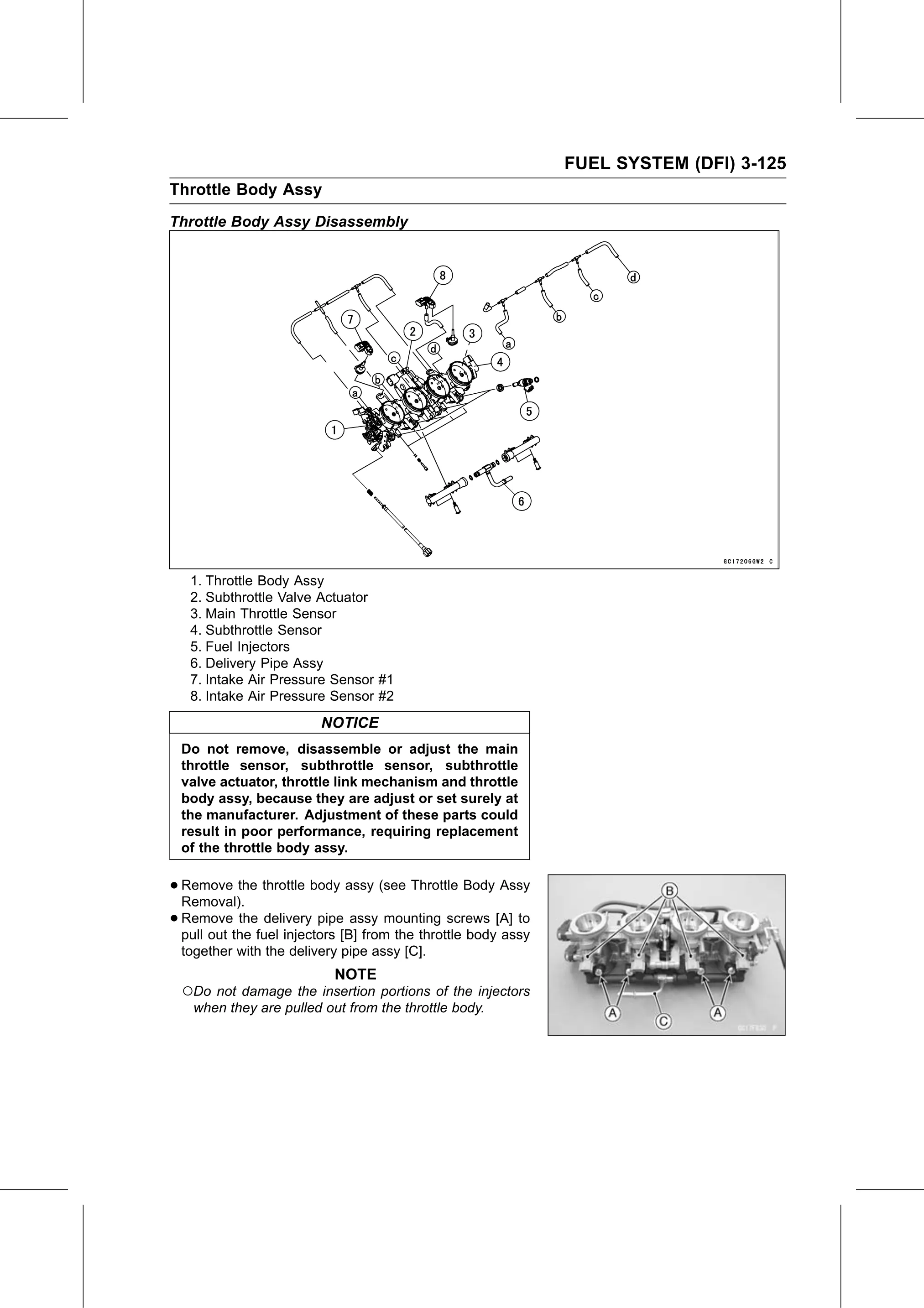

FUEL SYSTEM (DFI) 3-125
Throttle Body Assy
Throttle Body Assy Disassembly

   1. Throttle Body Assy
   2. Subthrottle Valve Actuator
   3. Main Throttle Sensor
   4. Subthrottle Sensor
   5. Fuel Injectors
   6. Delivery Pipe Assy
   7. Intake Air Pressure Sensor #1
   8. Intake Air Pressure Sensor #2
                         NOTICE
  Do not remove, disassemble or adjust the main
  throttle sensor, subthrottle sensor, subthrottle
  valve actuator, throttle link mechanism and throttle
  body assy, because they are adjust or set surely at
  the manufacturer. Adjustment of these parts could
  result in poor performance, requiring replacement
  of the throttle body assy.

• Remove
  Removal).
            the throttle body assy (see Throttle Body Assy

• Remove    the delivery pipe assy mounting screws [A] to
  pull out the fuel injectors [B] from the throttle body assy
  together with the delivery pipe assy [C].
                           NOTE
  ○Do not damage the insertion portions of the injectors
    when they are pulled out from the throttle body.
