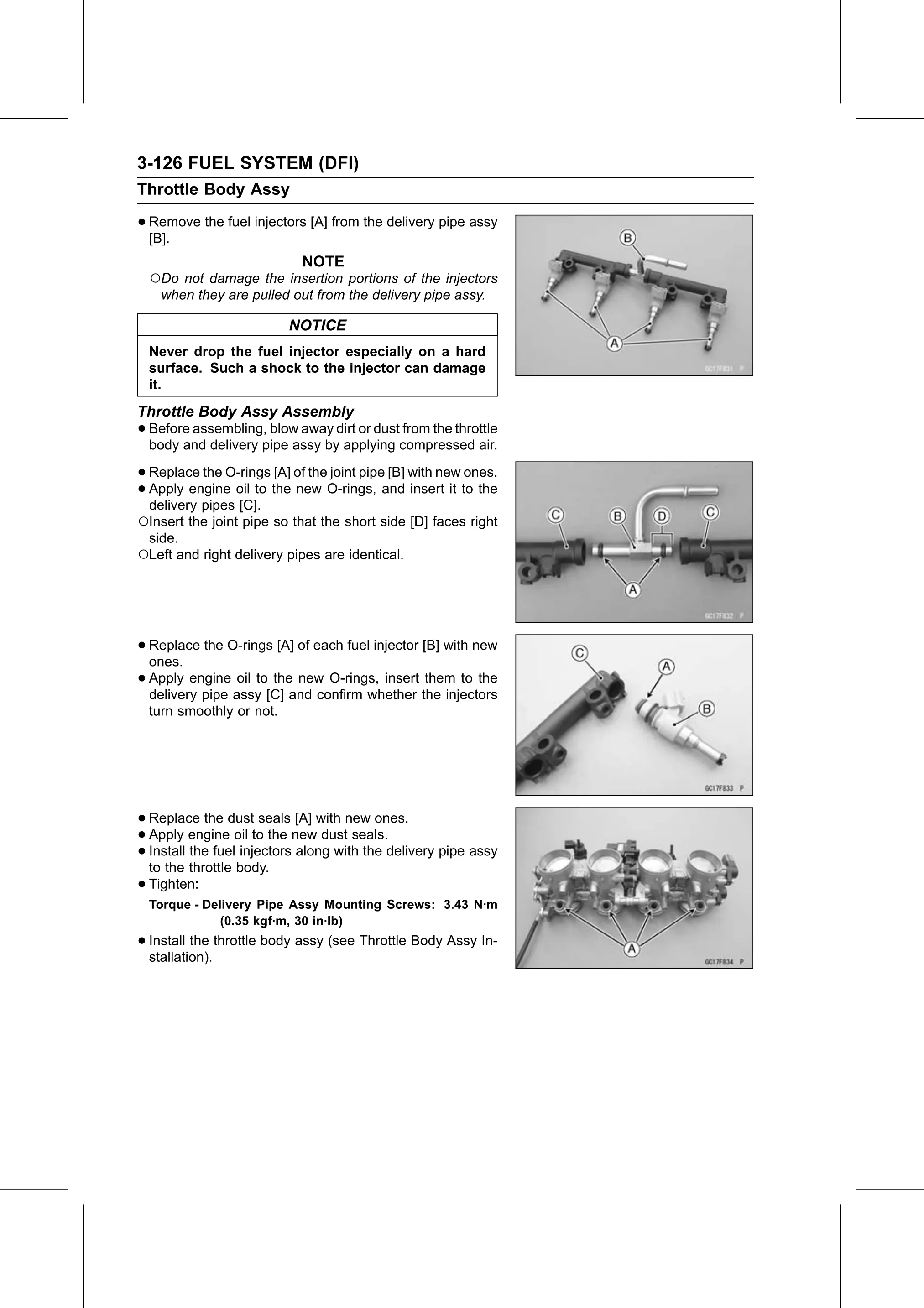

3-126 FUEL SYSTEM (DFI)
Throttle Body Assy

• Remove
  [B].
         the fuel injectors [A] from the delivery pipe assy

                             NOTE
  ○Do not damage the insertion portions of the injectors
   when they are pulled out from the delivery pipe assy.

                          NOTICE
  Never drop the fuel injector especially on a hard
  surface. Such a shock to the injector can damage
  it.
Throttle Body Assy Assembly
• Before assembling, blow away dirt or dust from the throttle
  body and delivery pipe assy by applying compressed air.

• Replace  the O-rings [A] of the joint pipe [B] with new ones.
• delivery pipes oil[C].to the new O-rings, and insert it to the
  Apply  engine

○Insert the joint pipe so that the short side [D] faces right
  side.
○Left and right delivery pipes are identical.

• Replace
  ones.
           the O-rings [A] of each fuel injector [B] with new

• Apply  engine oil to the new O-rings, insert them to the
  delivery pipe assy [C] and confirm whether the injectors
  turn smoothly or not.

• Replace   the dust seals [A] with new ones.
• Install the fueloilinjectors
  Apply   engine        to the new dust seals.
• to the throttle body. along with the delivery pipe assy
• Tighten:
  Torque - Delivery Pipe Assy Mounting Screws: 3.43 N·m
              (0.35 kgf·m, 30 in·lb)
• Install the throttle body assy (see Throttle Body Assy In-
  stallation).
