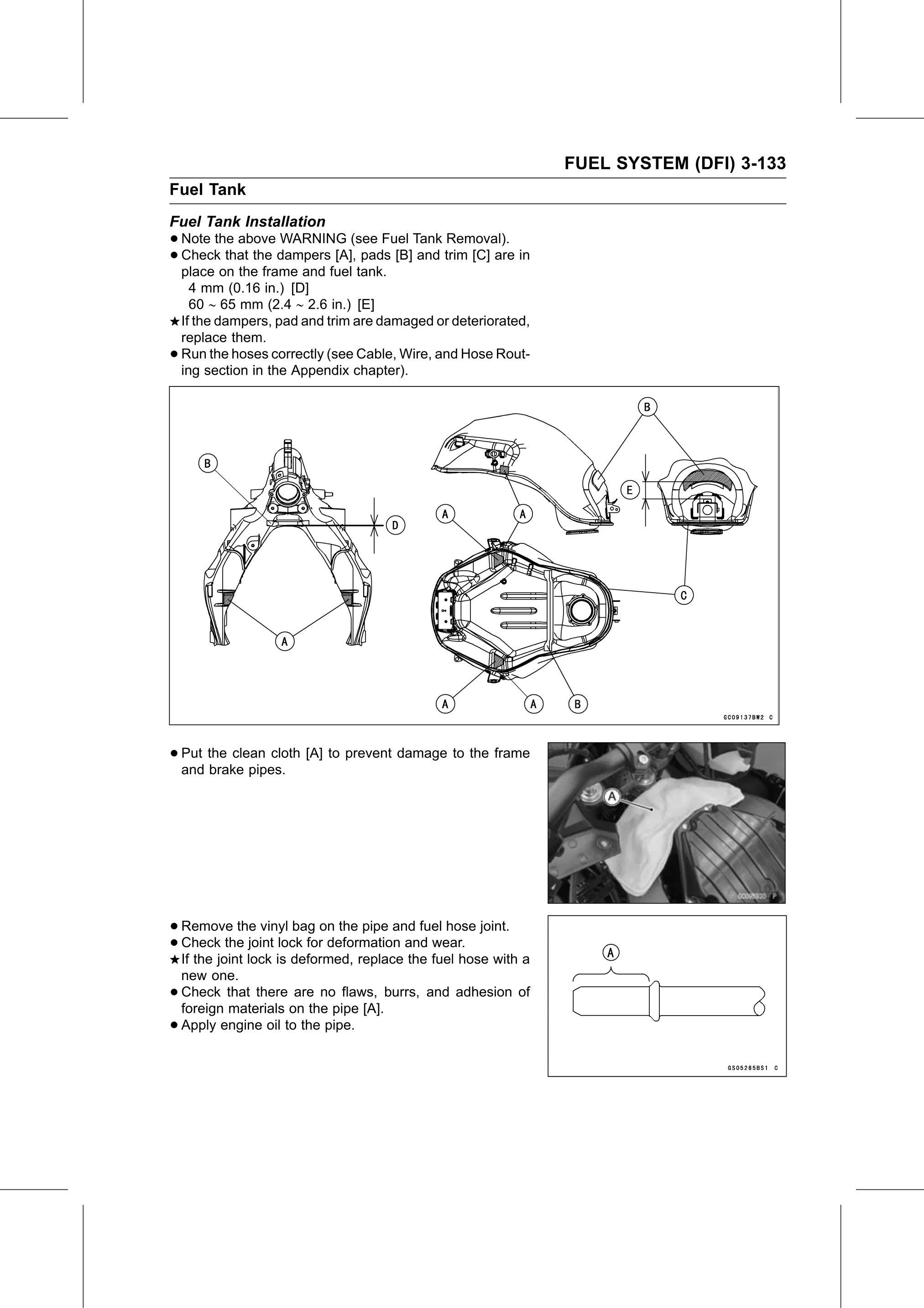

FUEL SYSTEM (DFI) 3-133
Fuel Tank
Fuel Tank Installation
• Note the above WARNING (see Fuel Tank Removal).
• Check  that the dampers [A], pads [B] and trim [C] are in
  place on the frame and fuel tank.
      4 mm (0.16 in.) [D]
      60 ∼ 65 mm (2.4 ∼ 2.6 in.) [E]
    If the dampers, pad and trim are damaged or deteriorated,
    replace them.
•   Run the hoses correctly (see Cable, Wire, and Hose Rout-
    ing section in the Appendix chapter).

• Put the clean cloth [A] to prevent damage to the frame
  and brake pipes.

• Remove     the vinyl bag on the pipe and fuel hose joint.
• If the joint lock
  Check    the joint lock for deformation and wear.
                     is deformed, replace the fuel hose with a
    new one.
•   Check that there are no flaws, burrs, and adhesion of
    foreign materials on the pipe [A].
•   Apply engine oil to the pipe.
