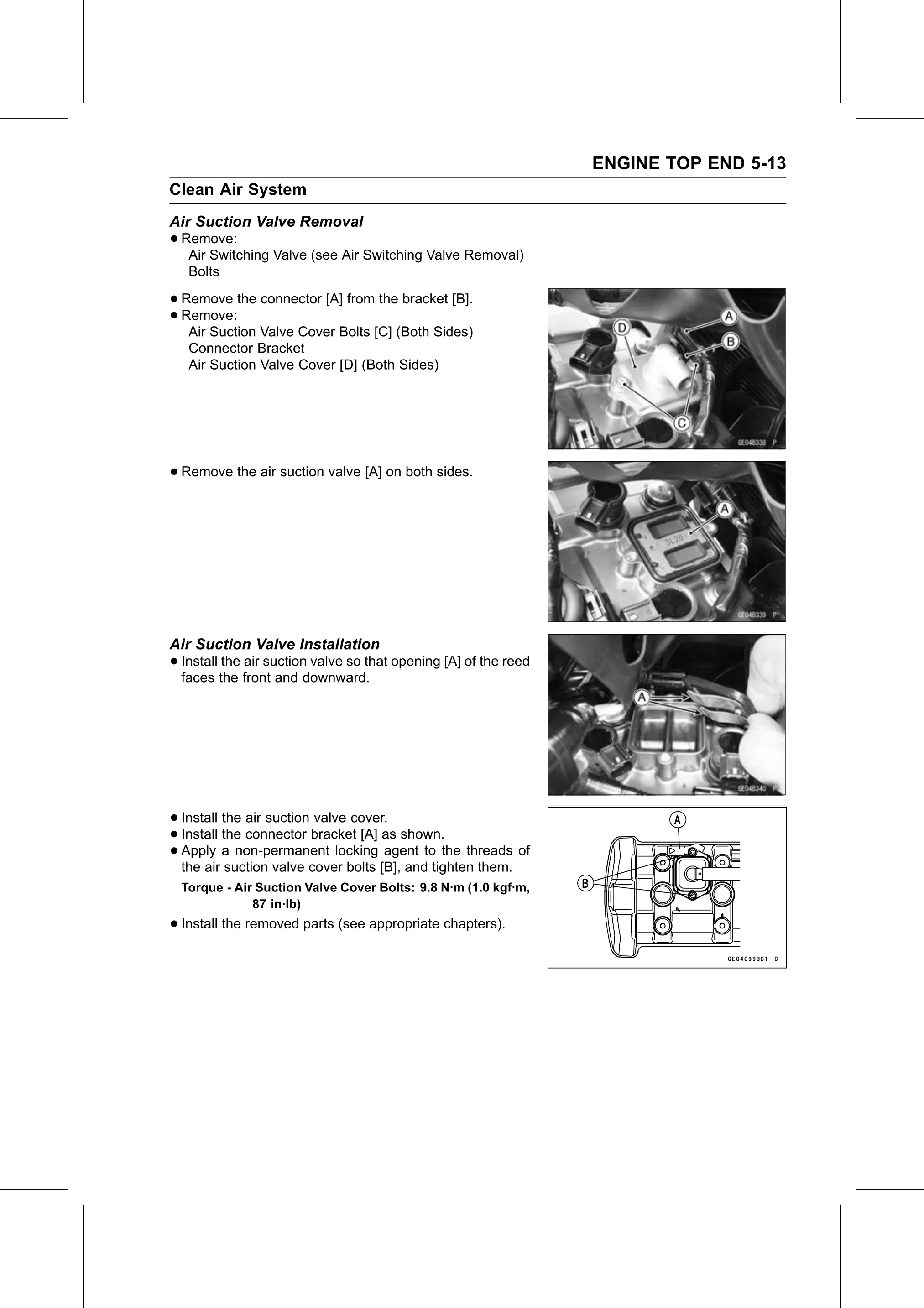

ENGINE TOP END 5-13
Clean Air System
Air Suction Valve Removal
• Remove:
   Air Switching Valve (see Air Switching Valve Removal)
   Bolts

• Remove   the connector [A] from the bracket [B].
• Remove:
   Air Suction Valve Cover Bolts [C] (Both Sides)
   Connector Bracket
   Air Suction Valve Cover [D] (Both Sides)

• Remove the air suction valve [A] on both sides.

Air Suction Valve Installation
• Install the air suction valve so that opening [A] of the reed
  faces the front and downward.

• Install the air suction valve cover.
• Apply a non-permanent
  Install the connector bracket [A] as shown.
• the air suction valve coverlocking  agent to the threads of
                               bolts [B], and tighten them.
  Torque - Air Suction Valve Cover Bolts: 9.8 N·m (1.0 kgf·m,
              87 in·lb)
• Install the removed parts (see appropriate chapters).
