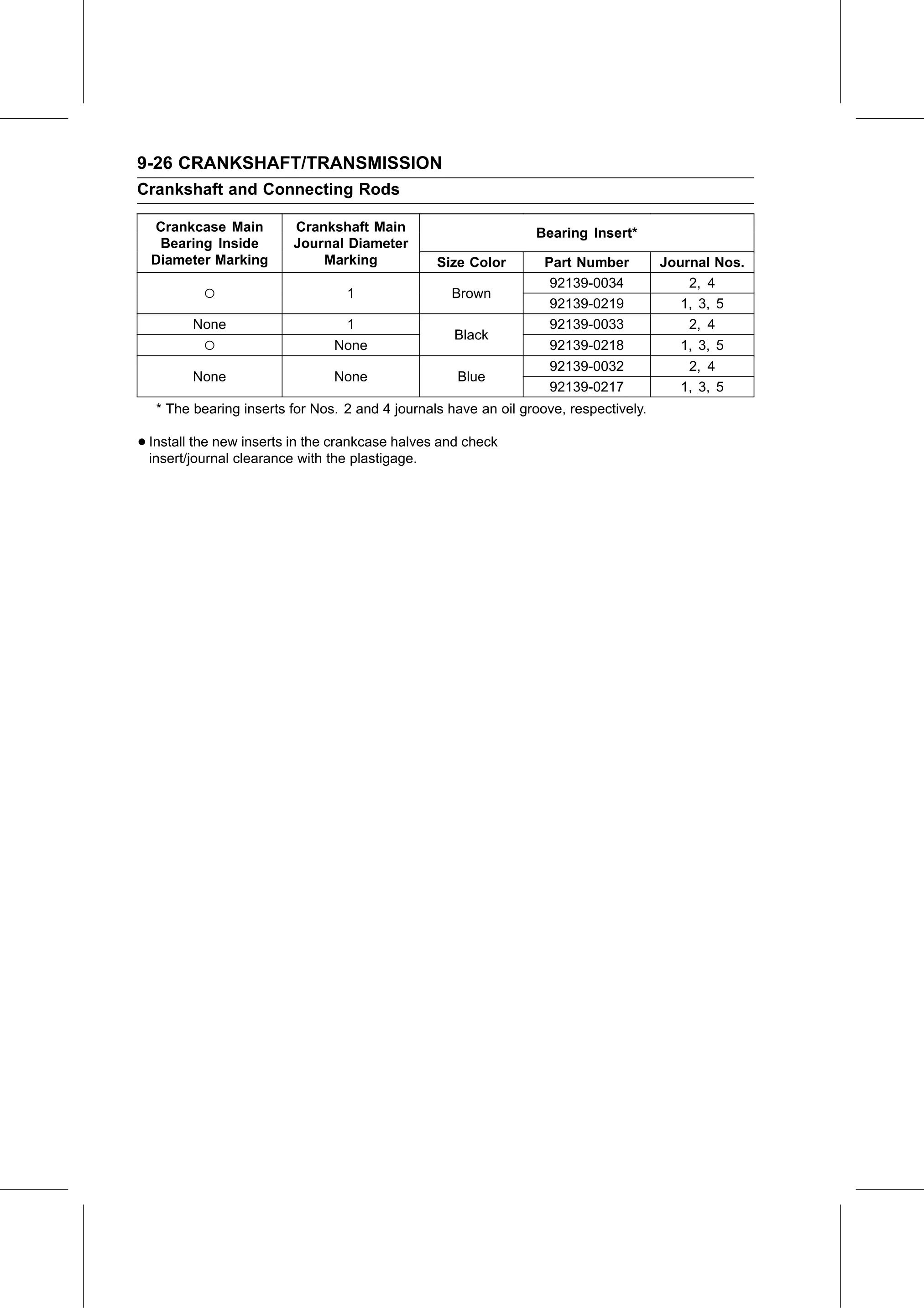

9-26 CRANKSHAFT/TRANSMISSION
Crankshaft and Connecting Rods

  Crankcase Main         Crankshaft Main                         Bearing Insert*
   Bearing Inside        Journal Diameter
  Diameter Marking           Marking             Size Color        Part Number         Journal Nos.
                                                                    92139-0034             2, 4
          ○                       1                Brown
                                                                    92139-0219            1, 3, 5
         None                     1                                 92139-0033             2, 4
                                                    Black
          ○                     None                               92139-0218            1, 3, 5
                                                                   92139-0032             2, 4
         None                   None                Blue
                                                                   92139-0217            1, 3, 5
   * The bearing inserts for Nos. 2 and 4 journals have an oil groove, respectively.

• Install the new inserts in the crankcase halves and check
  insert/journal clearance with the plastigage.
