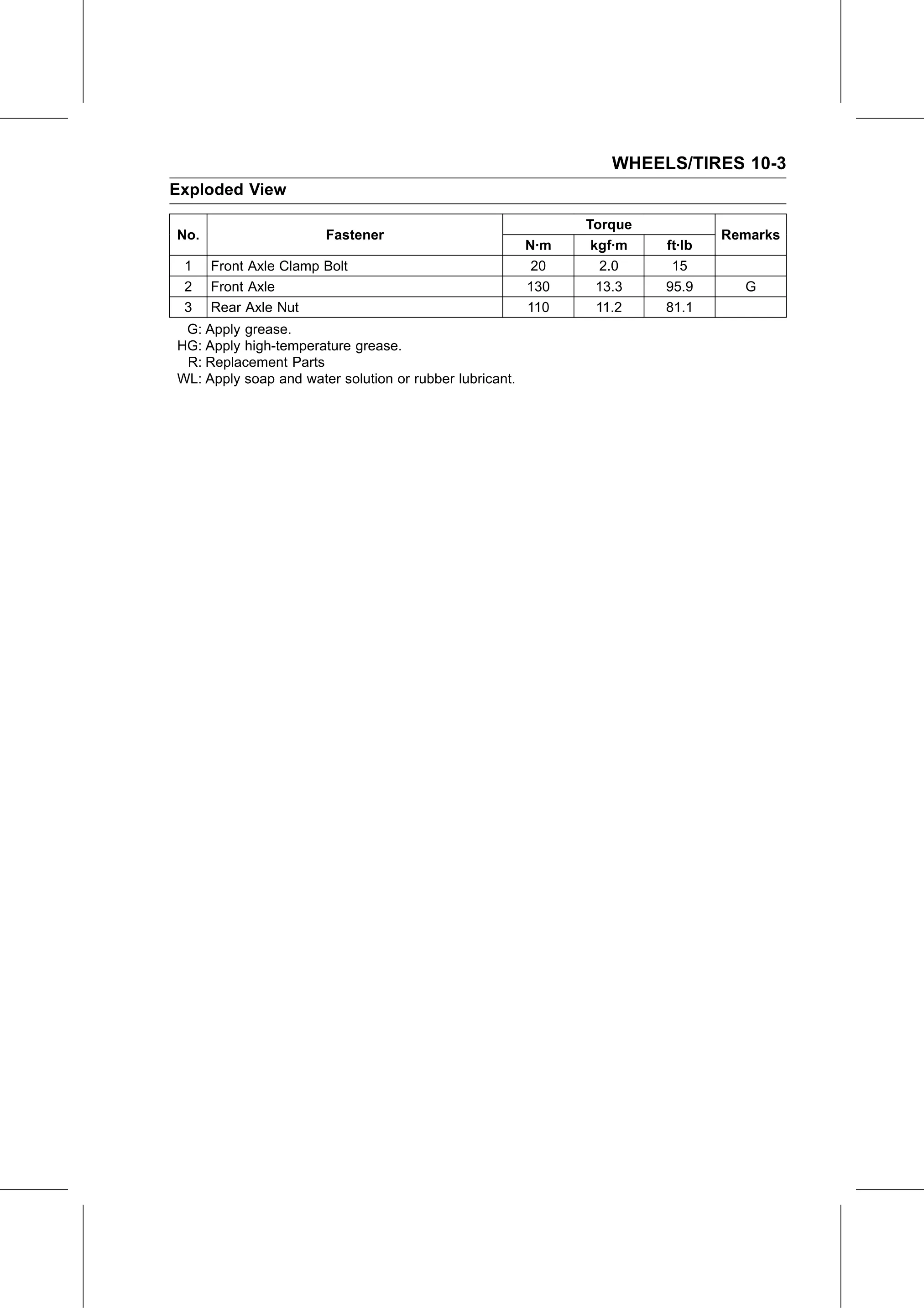

WHEELS/TIRES 10-3
Exploded View

                                                               Torque
No.                    Fastener                                                 Remarks
                                                         N·m    kgf·m   ft·lb
 1    Front Axle Clamp Bolt                               20     2.0     15
 2    Front Axle                                         130     13.3   95.9      G
 3    Rear Axle Nut                                      110     11.2   81.1
 G: Apply grease.
HG: Apply high-temperature grease.
 R: Replacement Parts
WL: Apply soap and water solution or rubber lubricant.
