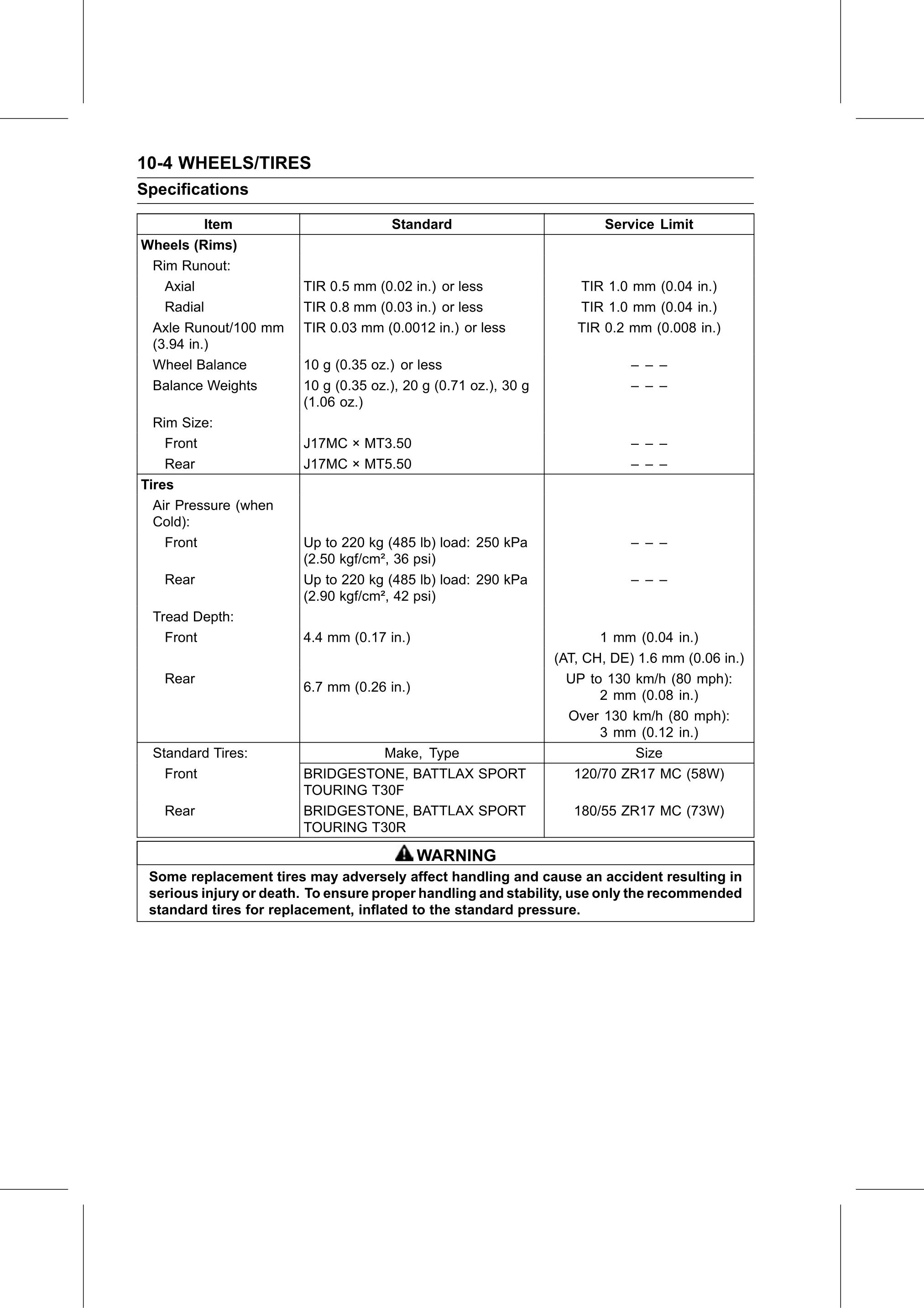

10-4 WHEELS/TIRES
Specifications

          Item                        Standard                           Service Limit
Wheels (Rims)
 Rim Runout:
   Axial                TIR 0.5 mm (0.02 in.) or less               TIR 1.0 mm (0.04 in.)
   Radial               TIR 0.8 mm (0.03 in.) or less               TIR 1.0 mm (0.04 in.)
 Axle Runout/100 mm     TIR 0.03 mm (0.0012 in.) or less            TIR 0.2 mm (0.008 in.)
 (3.94 in.)
 Wheel Balance          10 g (0.35 oz.) or less                              – – –
 Balance Weights        10 g (0.35 oz.), 20 g (0.71 oz.), 30 g               – – –
                        (1.06 oz.)
  Rim Size:
    Front               J17MC × MT3.50                                       – – –
    Rear                J17MC × MT5.50                                       – – –
Tires
  Air Pressure (when
  Cold):
    Front               Up to 220 kg (485 lb) load: 250 kPa                  – – –
                        (2.50 kgf/cm², 36 psi)
   Rear                 Up to 220 kg (485 lb) load: 290 kPa                  – – –
                        (2.90 kgf/cm², 42 psi)
 Tread Depth:
   Front                4.4 mm (0.17 in.)                               1 mm (0.04 in.)
                                                                 (AT, CH, DE) 1.6 mm (0.06 in.)
   Rear                                                            UP to 130 km/h (80 mph):
                        6.7 mm (0.26 in.)
                                                                        2 mm (0.08 in.)
                                                                   Over 130 km/h (80 mph):
                                                                        3 mm (0.12 in.)
 Standard Tires:                  Make, Type                                 Size
   Front                BRIDGESTONE, BATTLAX SPORT                  120/70 ZR17 MC (58W)
                        TOURING T30F
   Rear                 BRIDGESTONE, BATTLAX SPORT                  180/55 ZR17 MC (73W)
                        TOURING T30R

                                            WARNING
 Some replacement tires may adversely affect handling and cause an accident resulting in
 serious injury or death. To ensure proper handling and stability, use only the recommended
 standard tires for replacement, inflated to the standard pressure.
