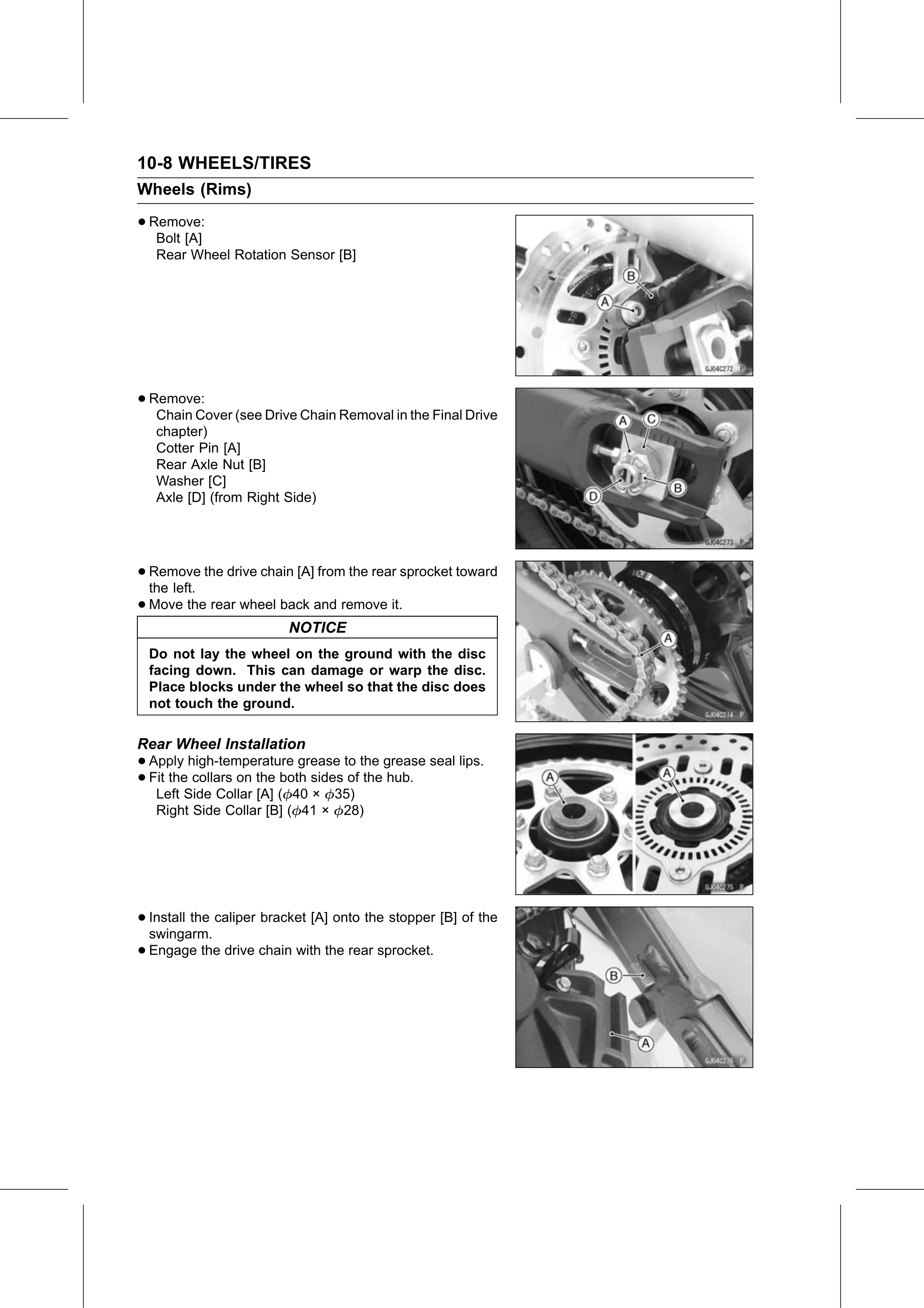

10-8 WHEELS/TIRES
Wheels (Rims)

• Remove:
   Bolt [A]
   Rear Wheel Rotation Sensor [B]

• Remove:
   Chain Cover (see Drive Chain Removal in the Final Drive
   chapter)
   Cotter Pin [A]
   Rear Axle Nut [B]
   Washer [C]
   Axle [D] (from Right Side)

• Remove
  the left.
            the drive chain [A] from the rear sprocket toward

• Move the rear wheel back and remove it.
                         NOTICE
  Do not lay the wheel on the ground with the disc
  facing down. This can damage or warp the disc.
  Place blocks under the wheel so that the disc does
  not touch the ground.

Rear Wheel Installation
• Apply  high-temperature grease to the grease seal lips.
• Left Side
  Fit the collars on the both sides of the hub.
              Collar [A] ( 40 × 35)
   Right Side Collar [B] ( 41 ×   28)

• Install the caliper bracket [A] onto the stopper [B] of the
  swingarm.
• Engage the drive chain with the rear sprocket.
