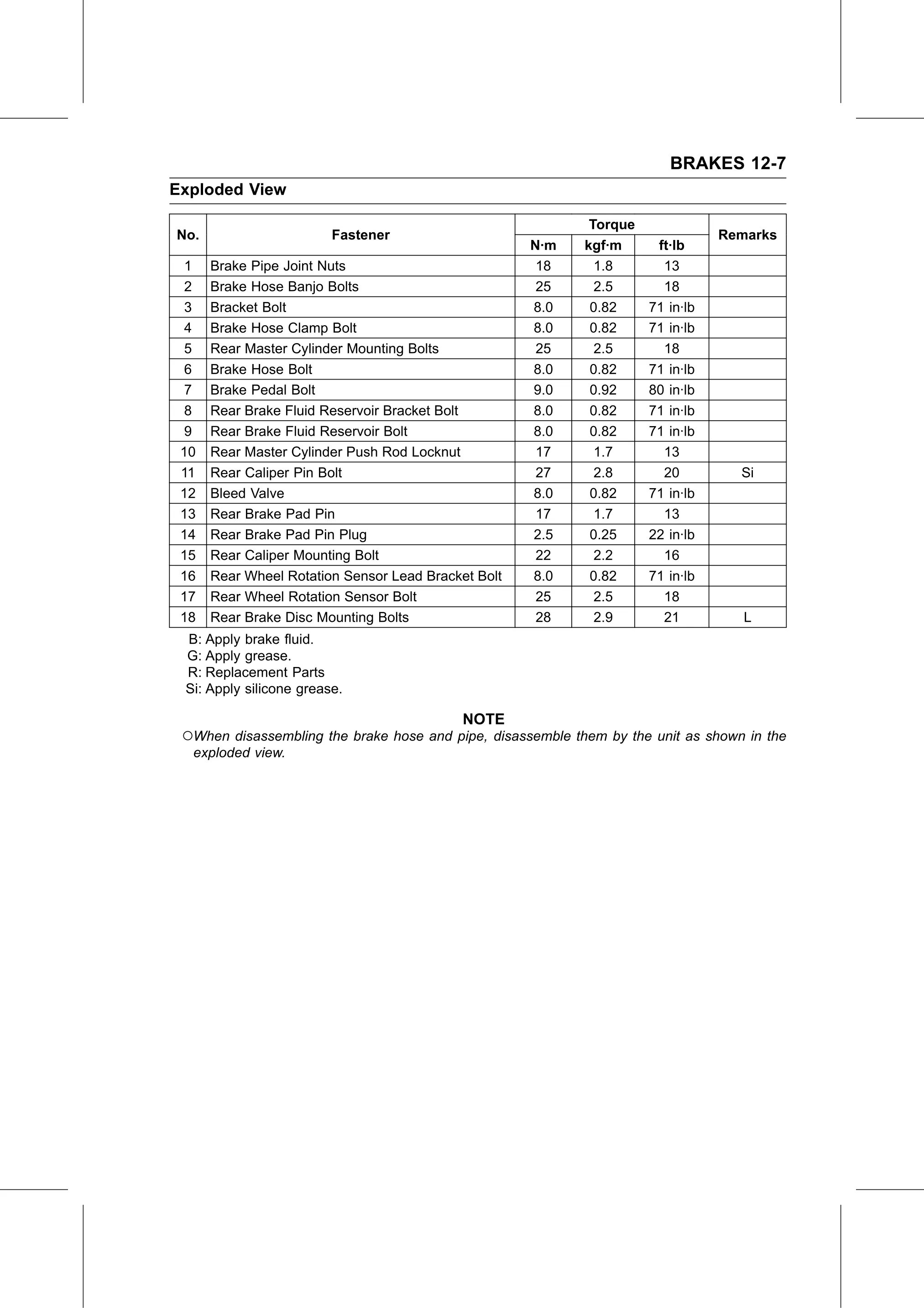

BRAKES 12-7
Exploded View

                                                             Torque
No.                      Fastener                                                Remarks
                                                     N·m    kgf·m      ft·lb
  1   Brake Pipe Joint Nuts                           18      1.8       13
  2   Brake Hose Banjo Bolts                          25      2.5       18
  3   Bracket Bolt                                   8.0     0.82     71 in·lb
  4   Brake Hose Clamp Bolt                          8.0     0.82     71 in·lb
  5   Rear Master Cylinder Mounting Bolts             25      2.5       18
  6   Brake Hose Bolt                                8.0     0.82     71 in·lb
  7   Brake Pedal Bolt                               9.0     0.92     80 in·lb
  8   Rear Brake Fluid Reservoir Bracket Bolt        8.0     0.82     71 in·lb
  9   Rear Brake Fluid Reservoir Bolt                8.0     0.82     71 in·lb
 10   Rear Master Cylinder Push Rod Locknut           17      1.7       13
 11   Rear Caliper Pin Bolt                           27      2.8       20         Si
 12   Bleed Valve                                    8.0     0.82     71 in·lb
 13   Rear Brake Pad Pin                              17      1.7       13
 14   Rear Brake Pad Pin Plug                        2.5     0.25     22 in·lb
 15   Rear Caliper Mounting Bolt                      22      2.2       16
 16   Rear Wheel Rotation Sensor Lead Bracket Bolt   8.0     0.82     71 in·lb
 17   Rear Wheel Rotation Sensor Bolt                 25      2.5       18
 18   Rear Brake Disc Mounting Bolts                  28      2.9       21          L
 B: Apply brake fluid.
 G: Apply grease.
 R: Replacement Parts
 Si: Apply silicone grease.

                                            NOTE
 ○When disassembling the brake hose and pipe, disassemble them by the unit as shown in the
  exploded view.
