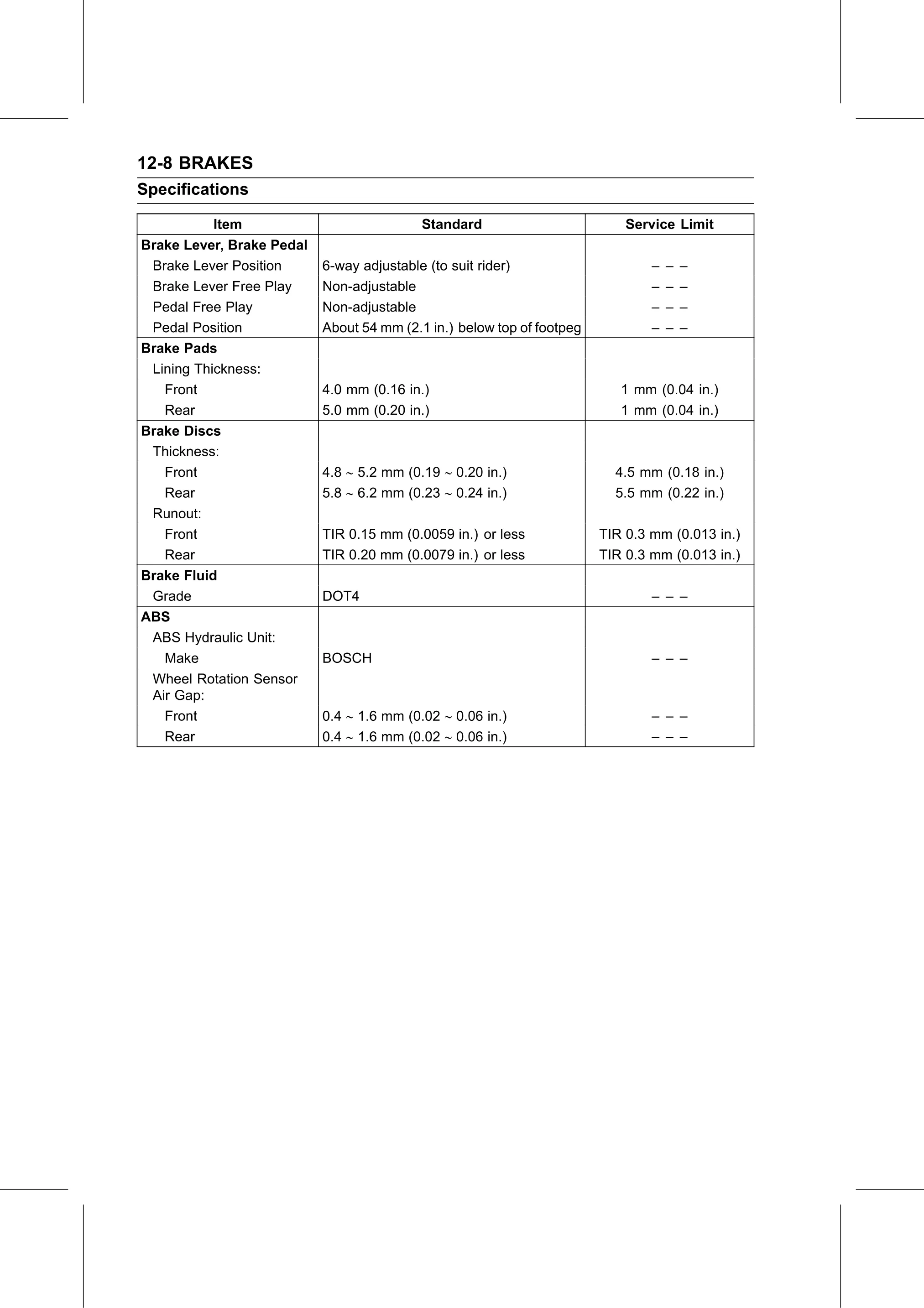

12-8 BRAKES
Specifications

           Item                            Standard                         Service Limit
Brake Lever, Brake Pedal
 Brake Lever Position      6-way adjustable (to suit rider)                     – – –
 Brake Lever Free Play     Non-adjustable                                       – – –
 Pedal Free Play           Non-adjustable                                       – – –
 Pedal Position            About 54 mm (2.1 in.) below top of footpeg           – – –
Brake Pads
 Lining Thickness:
   Front                   4.0 mm (0.16 in.)                               1 mm (0.04 in.)
   Rear                    5.0 mm (0.20 in.)                               1 mm (0.04 in.)
Brake Discs
 Thickness:
   Front                   4.8 ∼ 5.2 mm (0.19 ∼ 0.20 in.)                 4.5 mm (0.18 in.)
   Rear                    5.8 ∼ 6.2 mm (0.23 ∼ 0.24 in.)                 5.5 mm (0.22 in.)
 Runout:
   Front                   TIR 0.15 mm (0.0059 in.) or less             TIR 0.3 mm (0.013 in.)
   Rear                    TIR 0.20 mm (0.0079 in.) or less             TIR 0.3 mm (0.013 in.)
Brake Fluid
 Grade                     DOT4                                                 – – –
ABS
 ABS Hydraulic Unit:
   Make                    BOSCH                                                – – –
 Wheel Rotation Sensor
 Air Gap:
   Front                   0.4 ∼ 1.6 mm (0.02 ∼ 0.06 in.)                       – – –
   Rear                    0.4 ∼ 1.6 mm (0.02 ∼ 0.06 in.)                       – – –
