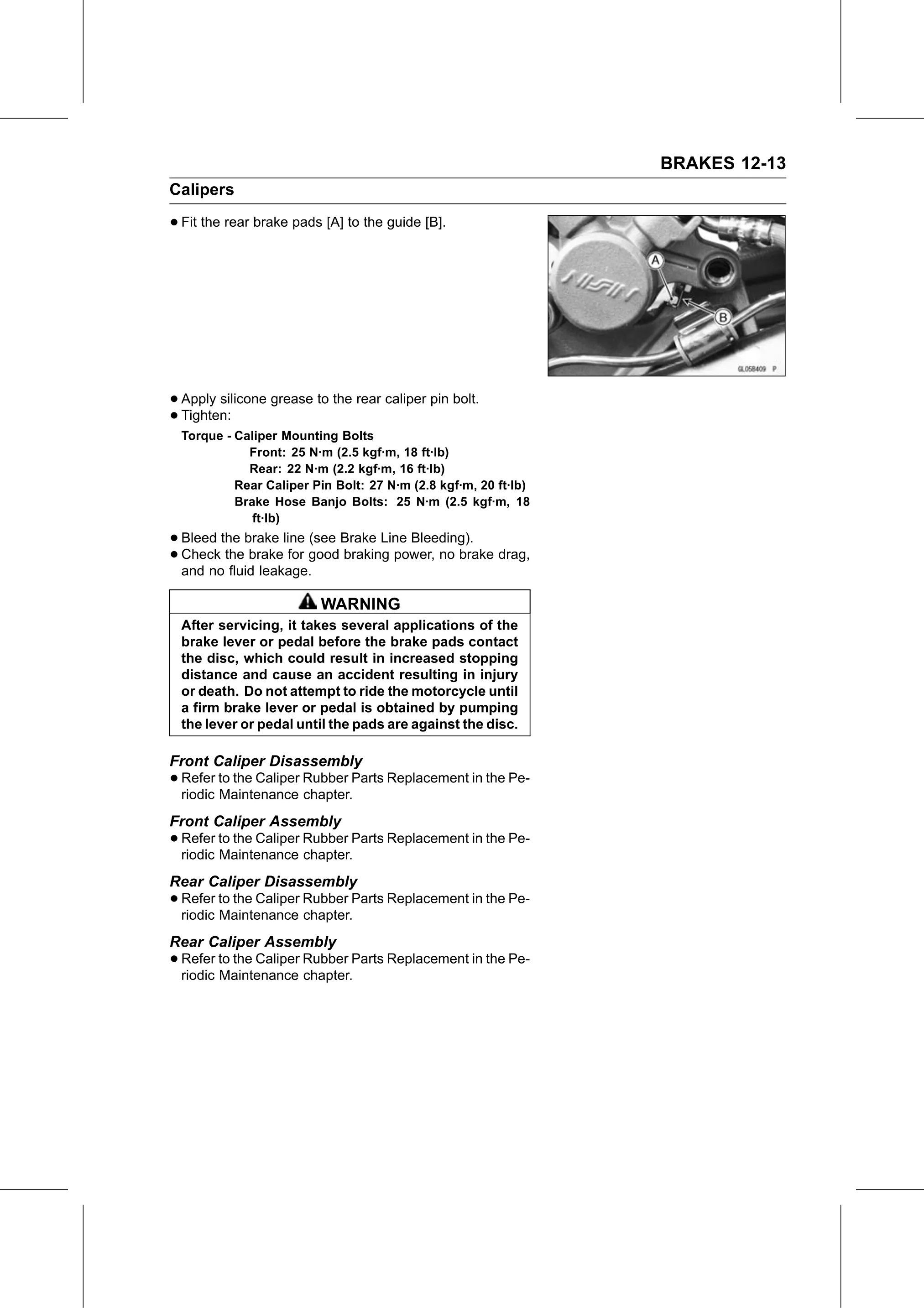

BRAKES 12-13
Calipers

• Fit the rear brake pads [A] to the guide [B].

• Apply silicone grease to the rear caliper pin bolt.
• Tighten:
  Torque - Caliper Mounting Bolts
             Front: 25 N·m (2.5 kgf·m, 18 ft·lb)
             Rear: 22 N·m (2.2 kgf·m, 16 ft·lb)
           Rear Caliper Pin Bolt: 27 N·m (2.8 kgf·m, 20 ft·lb)
           Brake Hose Banjo Bolts: 25 N·m (2.5 kgf·m, 18
              ft·lb)
• Bleed the brake line (see Brake Line Bleeding).
• and nothe
  Check       brake for good braking power, no brake drag,
          fluid leakage.

                          WARNING
  After servicing, it takes several applications of the
  brake lever or pedal before the brake pads contact
  the disc, which could result in increased stopping
  distance and cause an accident resulting in injury
  or death. Do not attempt to ride the motorcycle until
  a firm brake lever or pedal is obtained by pumping
  the lever or pedal until the pads are against the disc.

Front Caliper Disassembly
• Refer  to the Caliper Rubber Parts Replacement in the Pe-
  riodic Maintenance chapter.
Front Caliper Assembly
• Refer  to the Caliper Rubber Parts Replacement in the Pe-
  riodic Maintenance chapter.
Rear Caliper Disassembly
• Refer  to the Caliper Rubber Parts Replacement in the Pe-
  riodic Maintenance chapter.
Rear Caliper Assembly
• Refer  to the Caliper Rubber Parts Replacement in the Pe-
  riodic Maintenance chapter.
