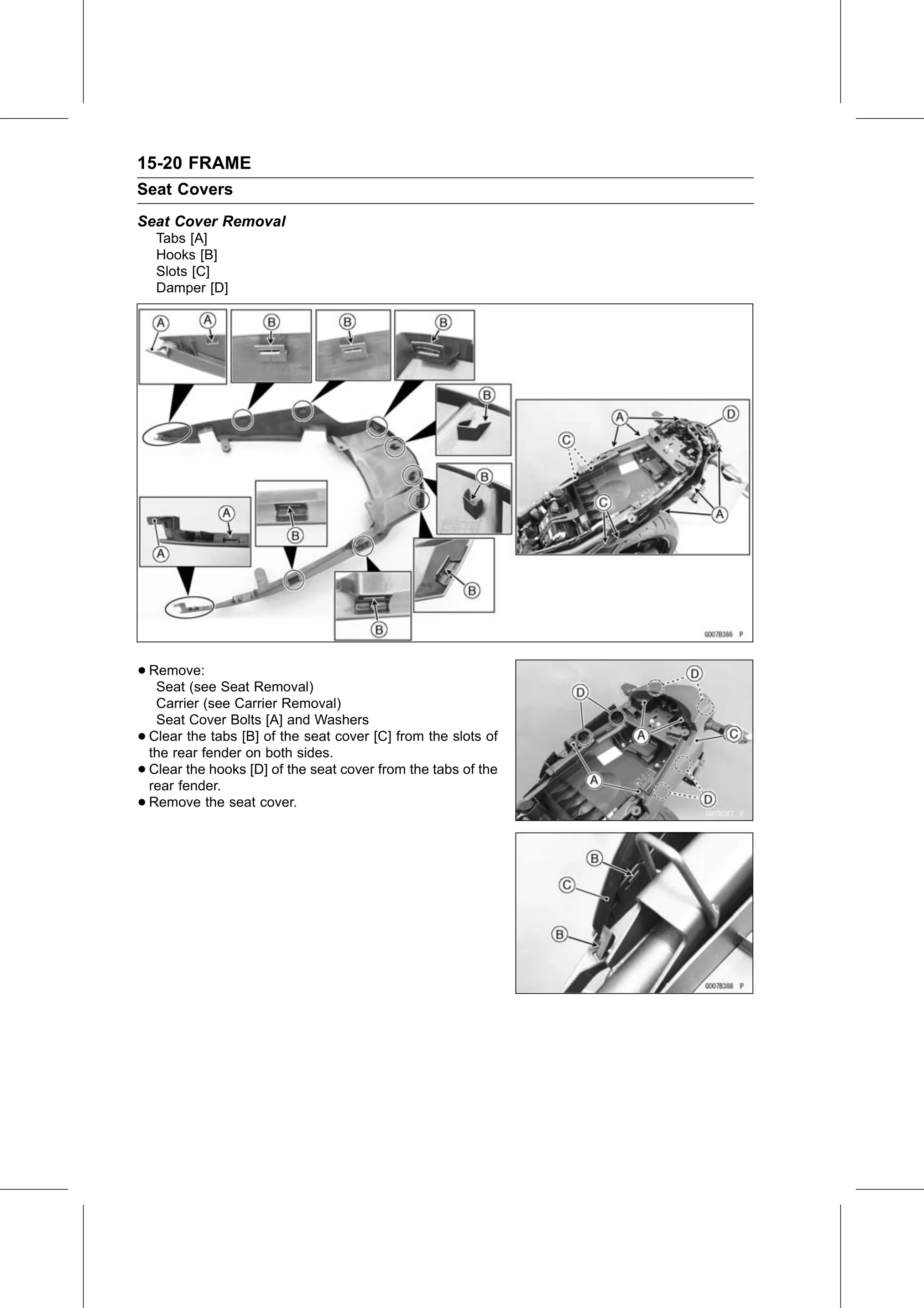

15-20 FRAME
Seat Covers
Seat Cover Removal
     Tabs [A]
     Hooks [B]
     Slots [C]
     Damper [D]

• Remove:
   Seat (see Seat Removal)
     Carrier (see Carrier Removal)
     Seat Cover Bolts [A] and Washers
•   Clear the tabs [B] of the seat cover [C] from the slots of
    the rear fender on both sides.
•   Clear the hooks [D] of the seat cover from the tabs of the
    rear fender.
•   Remove the seat cover.
