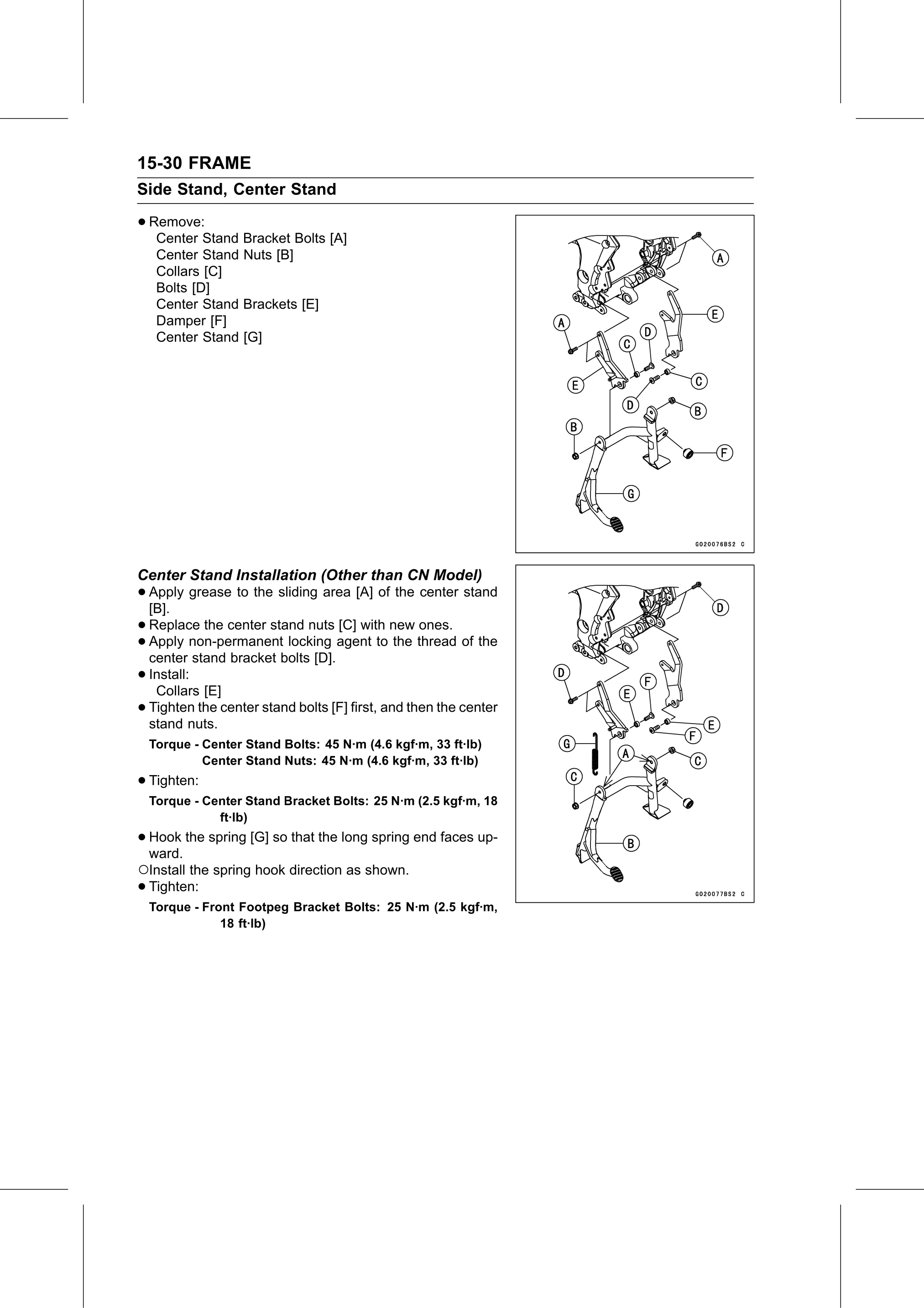

15-30 FRAME
Side Stand, Center Stand

• Remove:
   Center Stand Bracket Bolts [A]
   Center Stand Nuts [B]
   Collars [C]
   Bolts [D]
   Center Stand Brackets [E]
   Damper [F]
   Center Stand [G]

Center Stand Installation (Other than CN Model)
• Apply
  [B].
          grease to the sliding area [A] of the center stand

• Replace   the center stand nuts [C] with new ones.
• center stand bracket bolts
  Apply   non-permanent   locking agent to the thread of the
                               [D].
• Collars [E]
  Install:

• Tighten  the center stand bolts [F] first, and then the center
  stand nuts.
  Torque - Center Stand Bolts: 45 N·m (4.6 kgf·m, 33 ft·lb)
           Center Stand Nuts: 45 N·m (4.6 kgf·m, 33 ft·lb)
• Tighten:
  Torque - Center Stand Bracket Bolts: 25 N·m (2.5 kgf·m, 18
             ft·lb)
• Hook
  ward.
        the spring [G] so that the long spring end faces up-

○Install the spring hook direction as shown.
• Tighten:
  Torque - Front Footpeg Bracket Bolts: 25 N·m (2.5 kgf·m,
              18 ft·lb)
