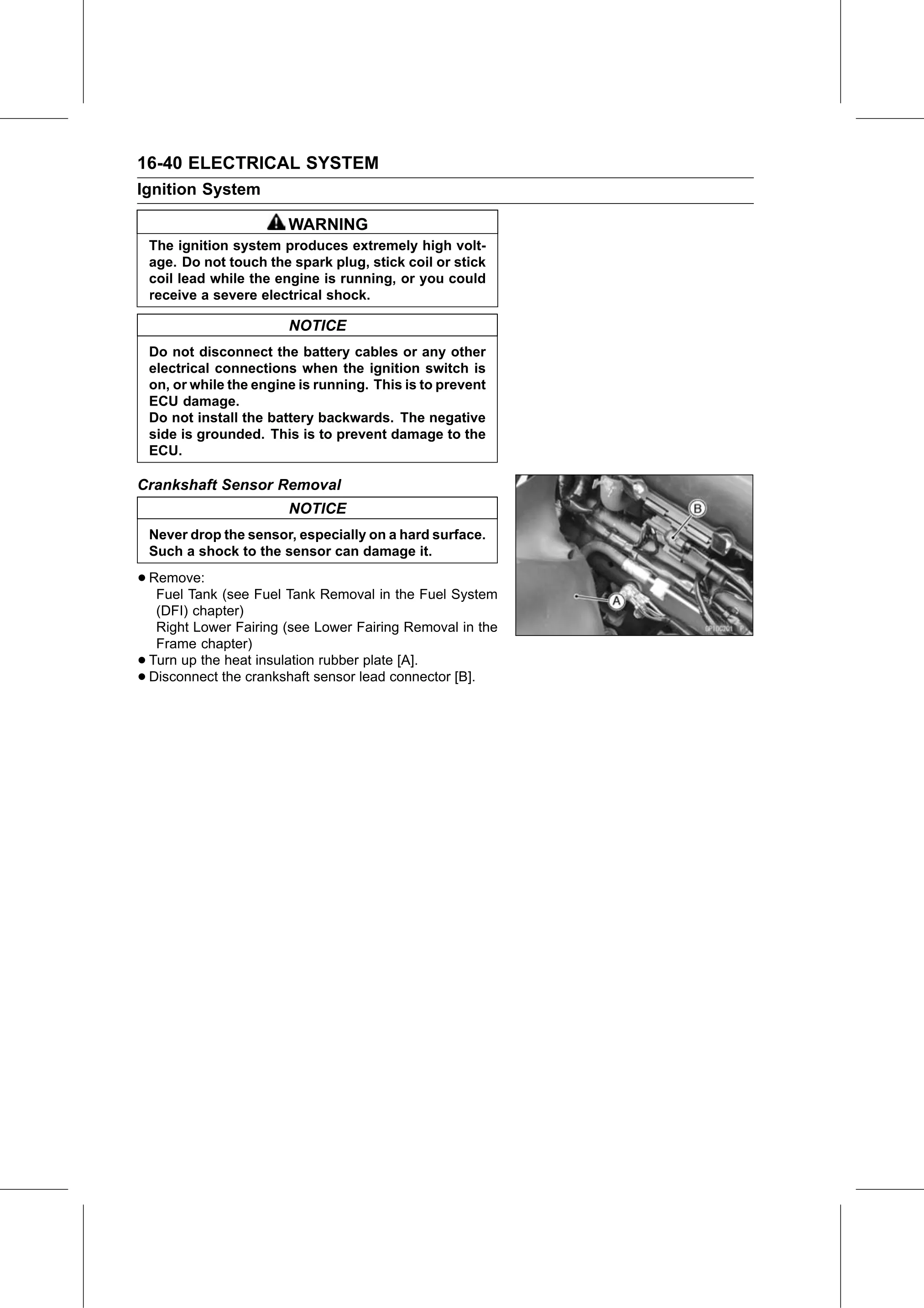

16-40 ELECTRICAL SYSTEM
Ignition System

                          WARNING
    The ignition system produces extremely high volt-
    age. Do not touch the spark plug, stick coil or stick
    coil lead while the engine is running, or you could
    receive a severe electrical shock.

                          NOTICE
    Do not disconnect the battery cables or any other
    electrical connections when the ignition switch is
    on, or while the engine is running. This is to prevent
    ECU damage.
    Do not install the battery backwards. The negative
    side is grounded. This is to prevent damage to the
    ECU.

Crankshaft Sensor Removal
                          NOTICE
    Never drop the sensor, especially on a hard surface.
    Such a shock to the sensor can damage it.

• Remove:
   Fuel Tank (see Fuel Tank Removal in the Fuel System
     (DFI) chapter)
     Right Lower Fairing (see Lower Fairing Removal in the
     Frame chapter)
•   Turn up the heat insulation rubber plate [A].
•   Disconnect the crankshaft sensor lead connector [B].
