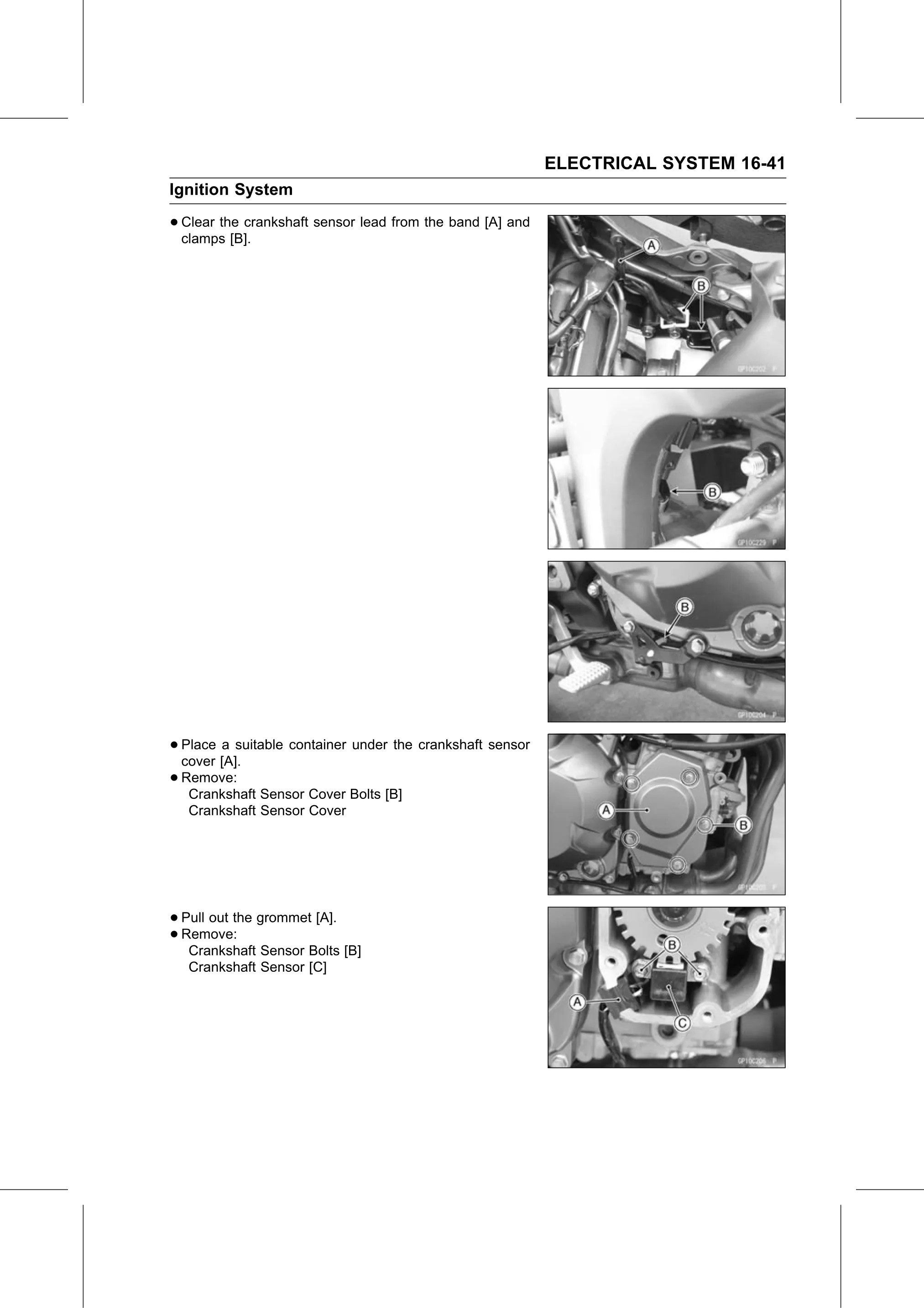

ELECTRICAL SYSTEM 16-41
Ignition System

• Clear the crankshaft sensor lead from the band [A] and
  clamps [B].

• Place a suitable container under the crankshaft sensor
  cover [A].
• Remove:
   Crankshaft Sensor Cover Bolts [B]
  Crankshaft Sensor Cover

• Pull out the grommet [A].
• Remove:
   Crankshaft Sensor Bolts [B]
  Crankshaft Sensor [C]
