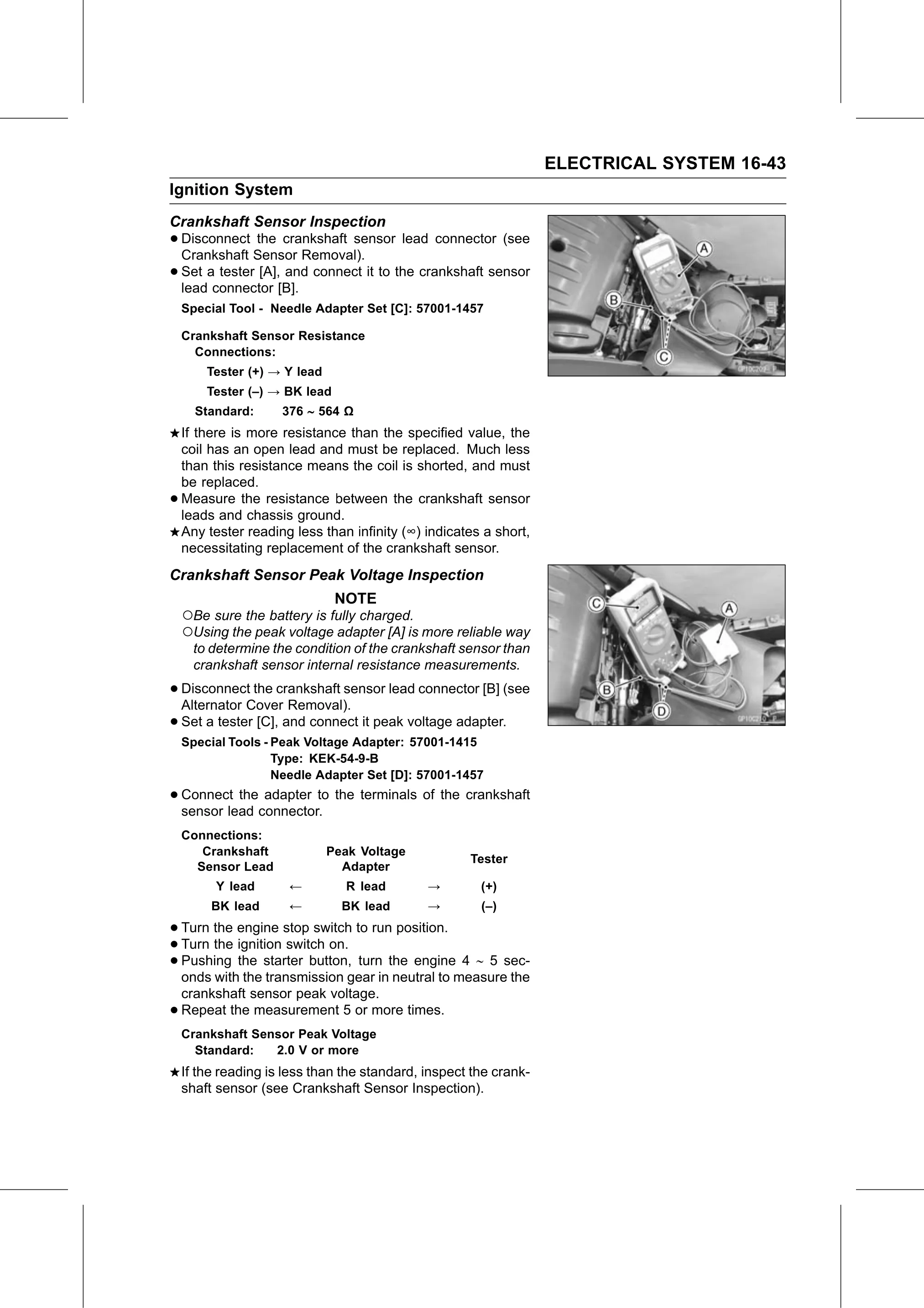

ELECTRICAL SYSTEM 16-43
Ignition System
Crankshaft Sensor Inspection
• Disconnect the crankshaft sensor lead connector (see
Crankshaft Sensor Removal).
• Set a tester [A], and connect it to the crankshaft sensor
lead connector [B].
Special Tool - Needle Adapter Set [C]: 57001-1457
Crankshaft Sensor Resistance
Connections:
Tester (+) → Y lead
Tester (–) → BK lead
Standard: 376 ∼ 564 Ω
If there is more resistance than the specified value, the
coil has an open lead and must be replaced. Much less
than this resistance means the coil is shorted, and must
be replaced.
• Measure the resistance between the crankshaft sensor
leads and chassis ground.
Any tester reading less than infinity (∞) indicates a short,
necessitating replacement of the crankshaft sensor.
Crankshaft Sensor Peak Voltage Inspection
NOTE
○Be sure the battery is fully charged.
○Using the peak voltage adapter [A] is more reliable way
to determine the condition of the crankshaft sensor than
crankshaft sensor internal resistance measurements.
• Disconnect the crankshaft sensor lead connector [B] (see
Alternator Cover Removal).
• Set a tester [C], and connect it peak voltage adapter.
Special Tools - Peak Voltage Adapter: 57001-1415
Type: KEK-54-9-B
Needle Adapter Set [D]: 57001-1457
• Connect the adapter to the terminals of the crankshaft
sensor lead connector.
Connections:
Crankshaft Peak Voltage
Tester
Sensor Lead Adapter
Y lead ← R lead → (+)
BK lead ← BK lead → (–)
• Turn the engine stop switch to run position.
• Turn the ignition switch on.
• onds withthe
Pushing starter button, turn the engine 4 ∼ 5 sec-
the transmission gear in neutral to measure the
crankshaft sensor peak voltage.
• Repeat the measurement 5 or more times.
Crankshaft Sensor Peak Voltage
Standard: 2.0 V or more
If the reading is less than the standard, inspect the crank-
shaft sensor (see Crankshaft Sensor Inspection).
