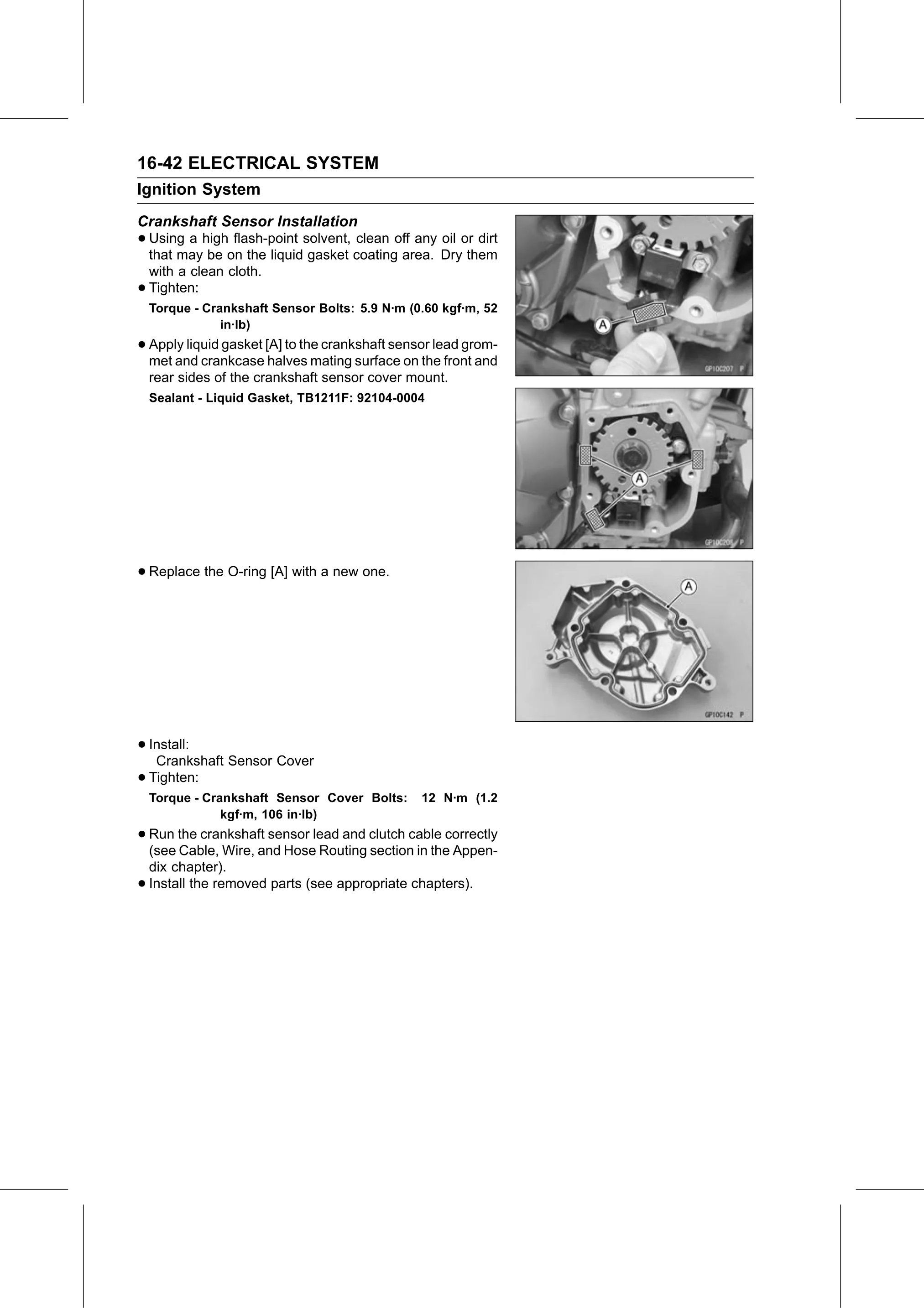

16-42 ELECTRICAL SYSTEM
Ignition System
Crankshaft Sensor Installation
• Using a high flash-point solvent, clean off any oil or dirt
  that may be on the liquid gasket coating area. Dry them
    with a clean cloth.
•   Tighten:
    Torque - Crankshaft Sensor Bolts: 5.9 N·m (0.60 kgf·m, 52
                in·lb)
• Apply liquid gasket [A] to the crankshaft sensor lead grom-
  met and crankcase halves mating surface on the front and
    rear sides of the crankshaft sensor cover mount.
    Sealant - Liquid Gasket, TB1211F: 92104-0004

• Replace the O-ring [A] with a new one.

• Install:
   Crankshaft Sensor Cover
• Tighten:
    Torque - Crankshaft Sensor Cover Bolts:     12 N·m (1.2
                kgf·m, 106 in·lb)
• Run  the crankshaft sensor lead and clutch cable correctly
  (see Cable, Wire, and Hose Routing section in the Appen-
    dix chapter).
•   Install the removed parts (see appropriate chapters).
