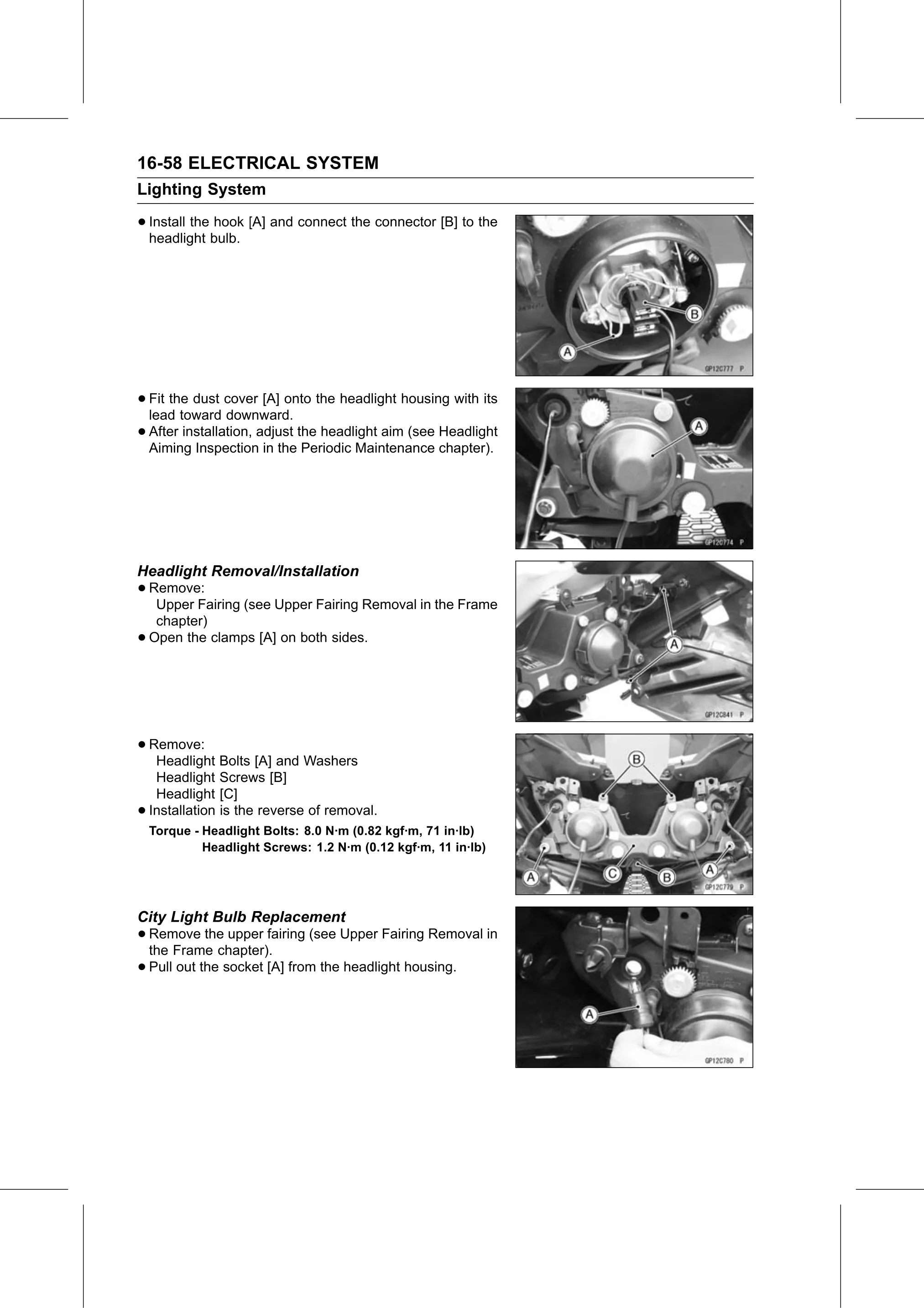

16-58 ELECTRICAL SYSTEM
Lighting System

• Install the hook [A] and connect the connector [B] to the
  headlight bulb.

• Fit the dust cover [A] onto the headlight housing with its
  lead toward downward.
• After installation, adjust the headlight aim (see Headlight
  Aiming Inspection in the Periodic Maintenance chapter).

Headlight Removal/Installation
• Remove:
   Upper Fairing (see Upper Fairing Removal in the Frame
     chapter)
•   Open the clamps [A] on both sides.

• Remove:
   Headlight Bolts [A] and Washers
     Headlight Screws [B]
     Headlight [C]
•   Installation is the reverse of removal.
    Torque - Headlight Bolts: 8.0 N·m (0.82 kgf·m, 71 in·lb)
             Headlight Screws: 1.2 N·m (0.12 kgf·m, 11 in·lb)

City Light Bulb Replacement
• Remove    the upper fairing (see Upper Fairing Removal in
  the Frame chapter).
• Pull out the socket [A] from the headlight housing.
