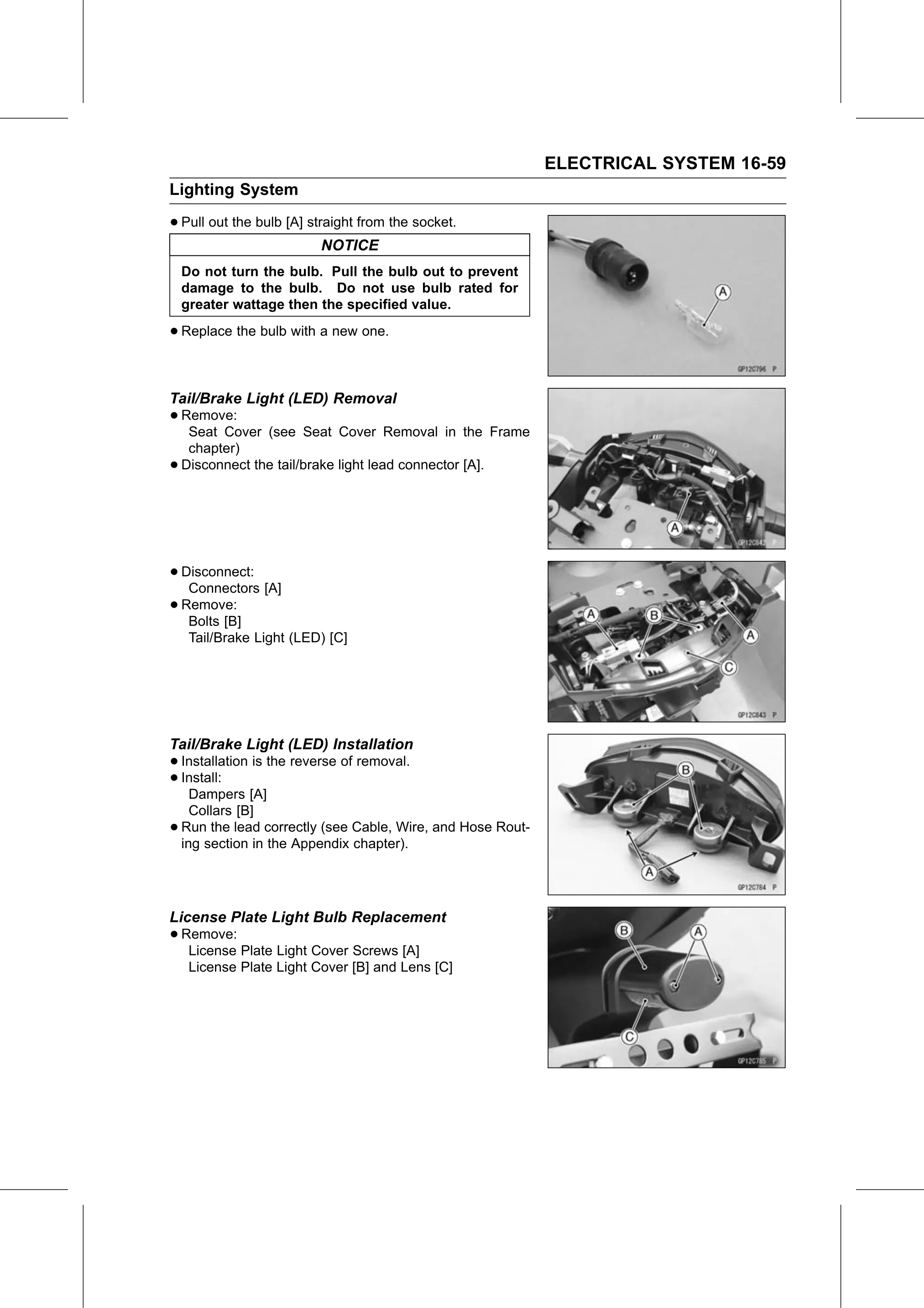

ELECTRICAL SYSTEM 16-59
Lighting System

• Pull out the bulb [A] straight from the socket.
                           NOTICE
    Do not turn the bulb. Pull the bulb out to prevent
    damage to the bulb. Do not use bulb rated for
    greater wattage then the specified value.

• Replace the bulb with a new one.

Tail/Brake Light (LED) Removal
• Remove:
   Seat Cover (see Seat Cover Removal in the Frame
     chapter)
•   Disconnect the tail/brake light lead connector [A].

• Disconnect:
   Connectors [A]
• Remove:
   Bolts [B]
     Tail/Brake Light (LED) [C]

Tail/Brake Light (LED) Installation
• Installation is the reverse of removal.
• Dampers [A]
  Install:

      Collars [B]
•   Run the lead correctly (see Cable, Wire, and Hose Rout-
    ing section in the Appendix chapter).

License Plate Light Bulb Replacement
• Remove:
   License Plate Light Cover Screws [A]
     License Plate Light Cover [B] and Lens [C]
