ELECTRICAL SYSTEM 16-63
Lighting System

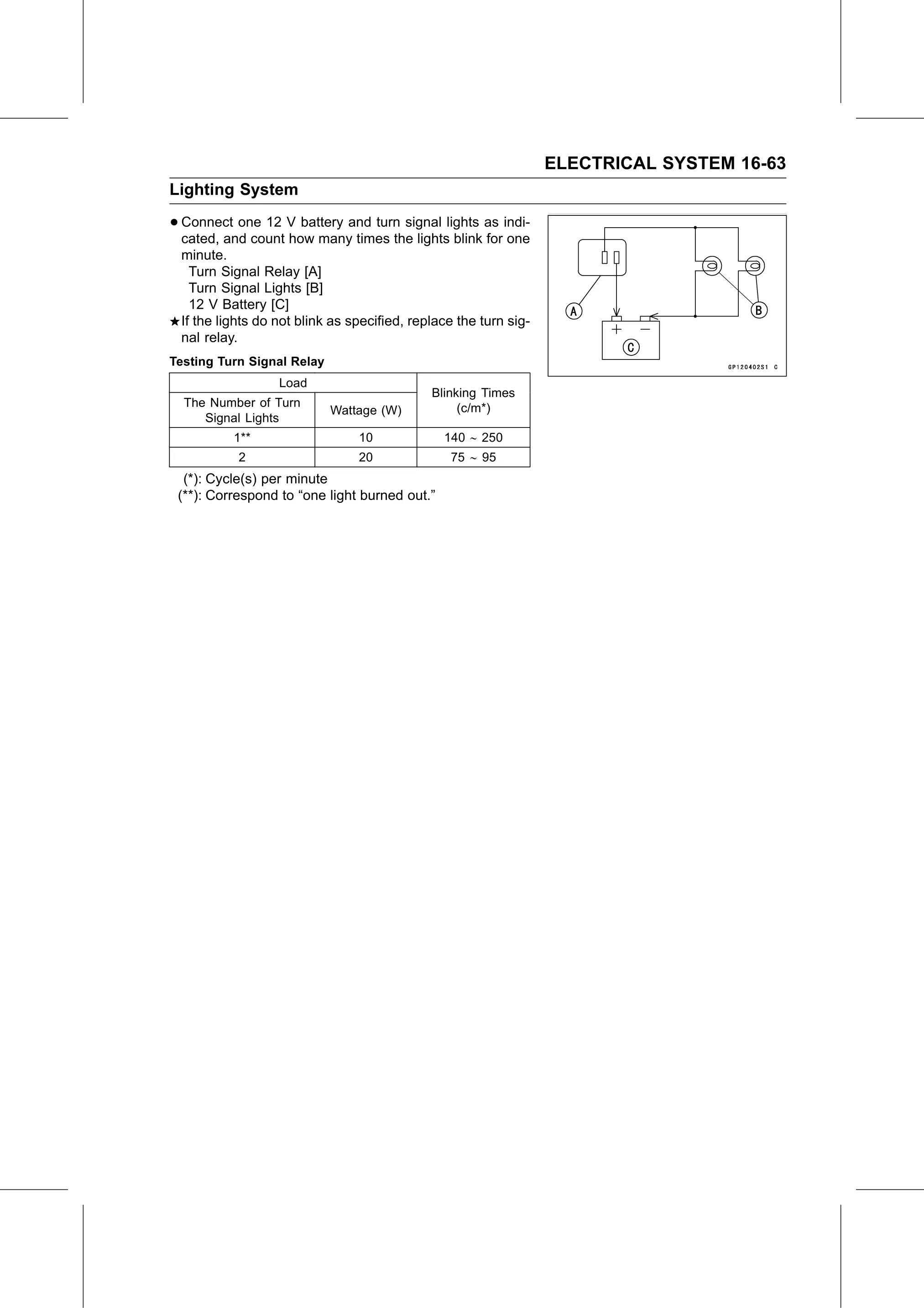

• Connect  one 12 V battery and turn signal lights as indi-
  cated, and count how many times the lights blink for one
 minute.
   Turn Signal Relay [A]
   Turn Signal Lights [B]
   12 V Battery [C]
 If the lights do not blink as specified, replace the turn sig-
 nal relay.
Testing Turn Signal Relay
                  Load
                                             Blinking Times
  The Number of Turn                              (c/m*)
                            Wattage (W)
     Signal Lights
          1**                   10             140 ∼ 250
           2                    20              75 ∼ 95
  (*): Cycle(s) per minute
 (**): Correspond to “one light burned out.”
