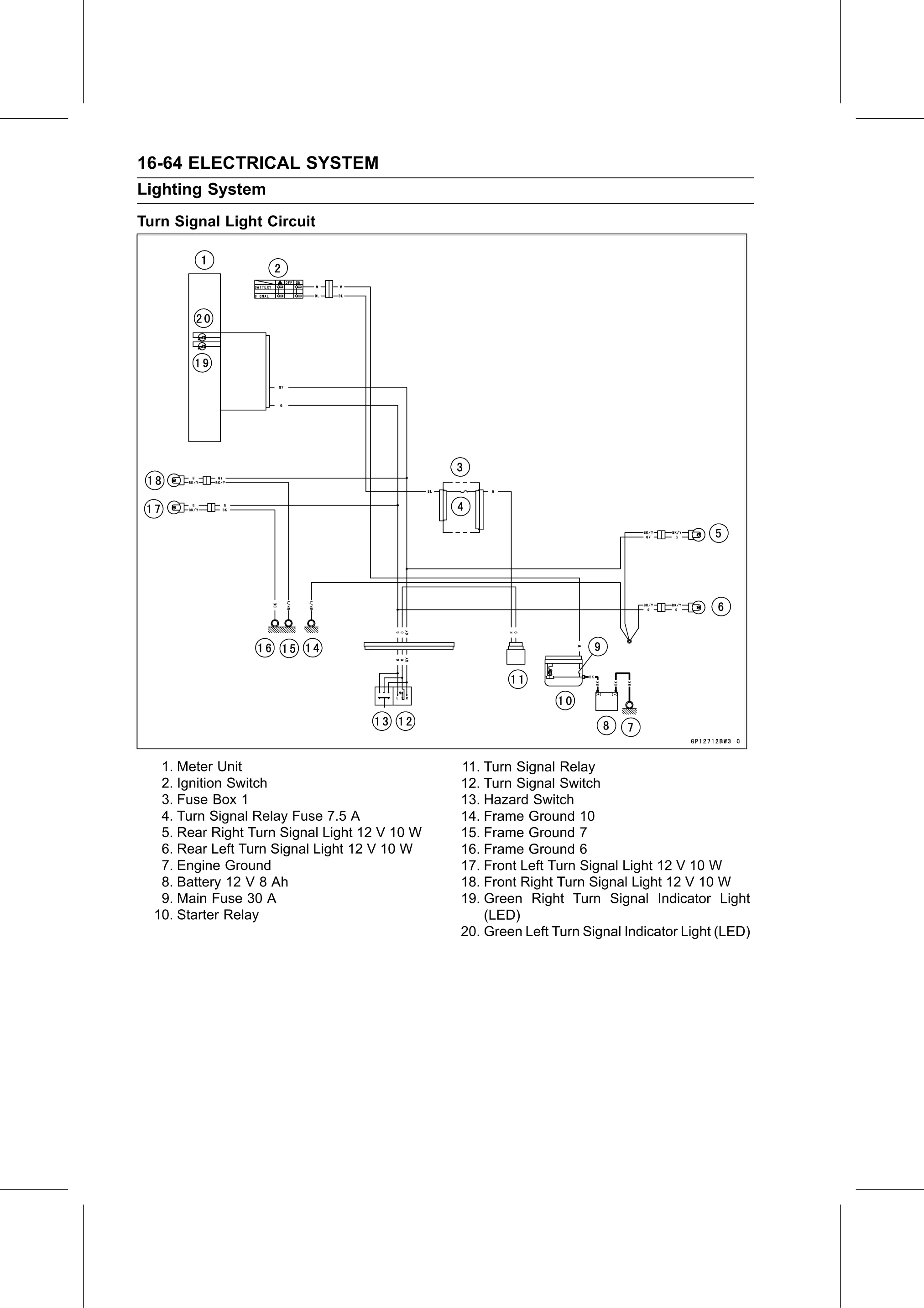

16-64 ELECTRICAL SYSTEM
Lighting System
Turn Signal Light Circuit

   1. Meter Unit                               11. Turn Signal Relay
   2. Ignition Switch                          12. Turn Signal Switch
   3. Fuse Box 1                               13. Hazard Switch
   4. Turn Signal Relay Fuse 7.5 A             14. Frame Ground 10
   5. Rear Right Turn Signal Light 12 V 10 W   15. Frame Ground 7
   6. Rear Left Turn Signal Light 12 V 10 W    16. Frame Ground 6
   7. Engine Ground                            17. Front Left Turn Signal Light 12 V 10 W
   8. Battery 12 V 8 Ah                        18. Front Right Turn Signal Light 12 V 10 W
   9. Main Fuse 30 A                           19. Green Right Turn Signal Indicator Light
  10. Starter Relay                                (LED)
                                               20. Green Left Turn Signal Indicator Light (LED)
