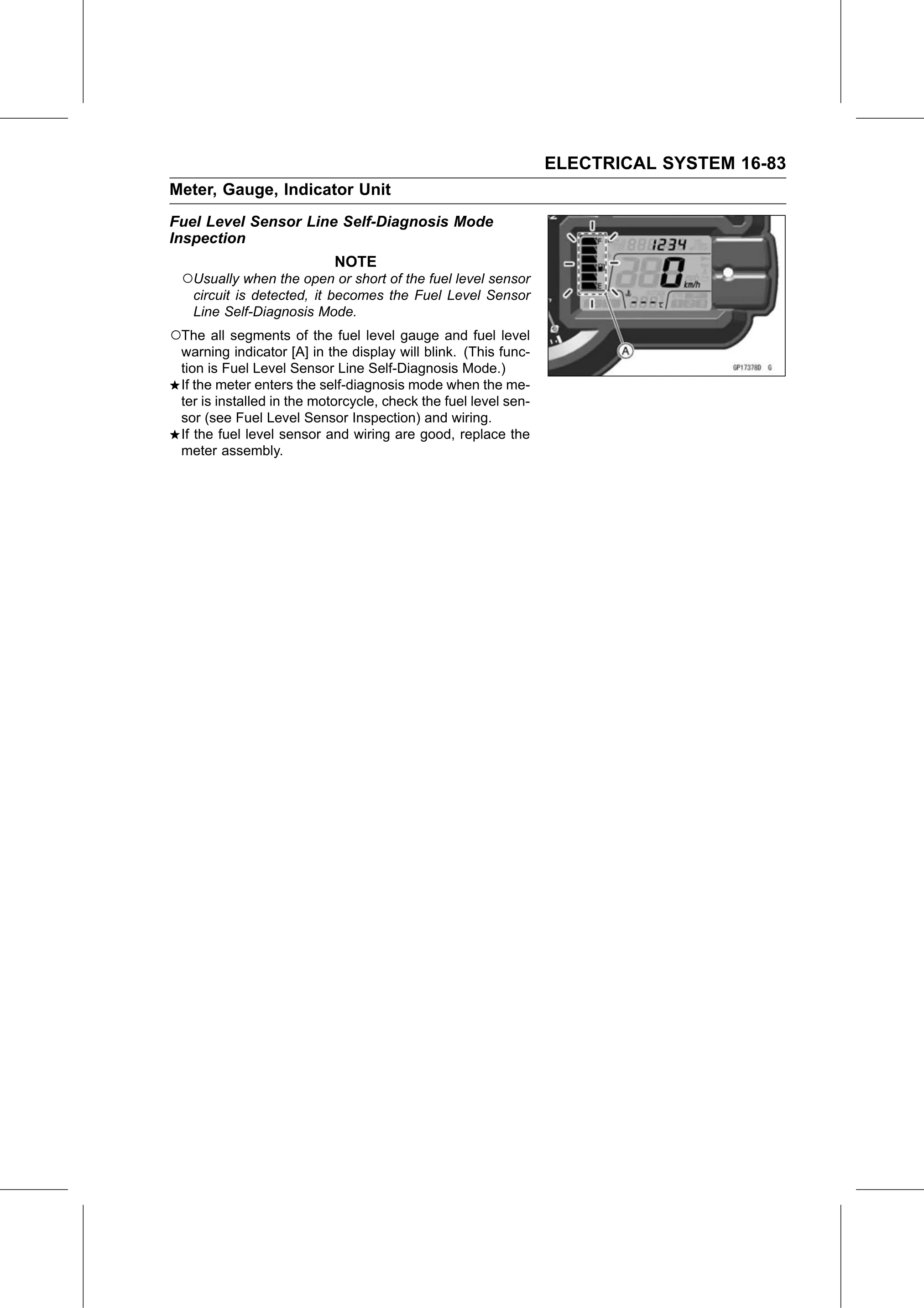

ELECTRICAL SYSTEM 16-83
Meter, Gauge, Indicator Unit
Fuel Level Sensor Line Self-Diagnosis Mode
Inspection
                           NOTE
 ○Usually when the open or short of the fuel level sensor
  circuit is detected, it becomes the Fuel Level Sensor
  Line Self-Diagnosis Mode.
○The all segments of the fuel level gauge and fuel level
 warning indicator [A] in the display will blink. (This func-
 tion is Fuel Level Sensor Line Self-Diagnosis Mode.)
 If the meter enters the self-diagnosis mode when the me-
 ter is installed in the motorcycle, check the fuel level sen-
 sor (see Fuel Level Sensor Inspection) and wiring.
 If the fuel level sensor and wiring are good, replace the
 meter assembly.
