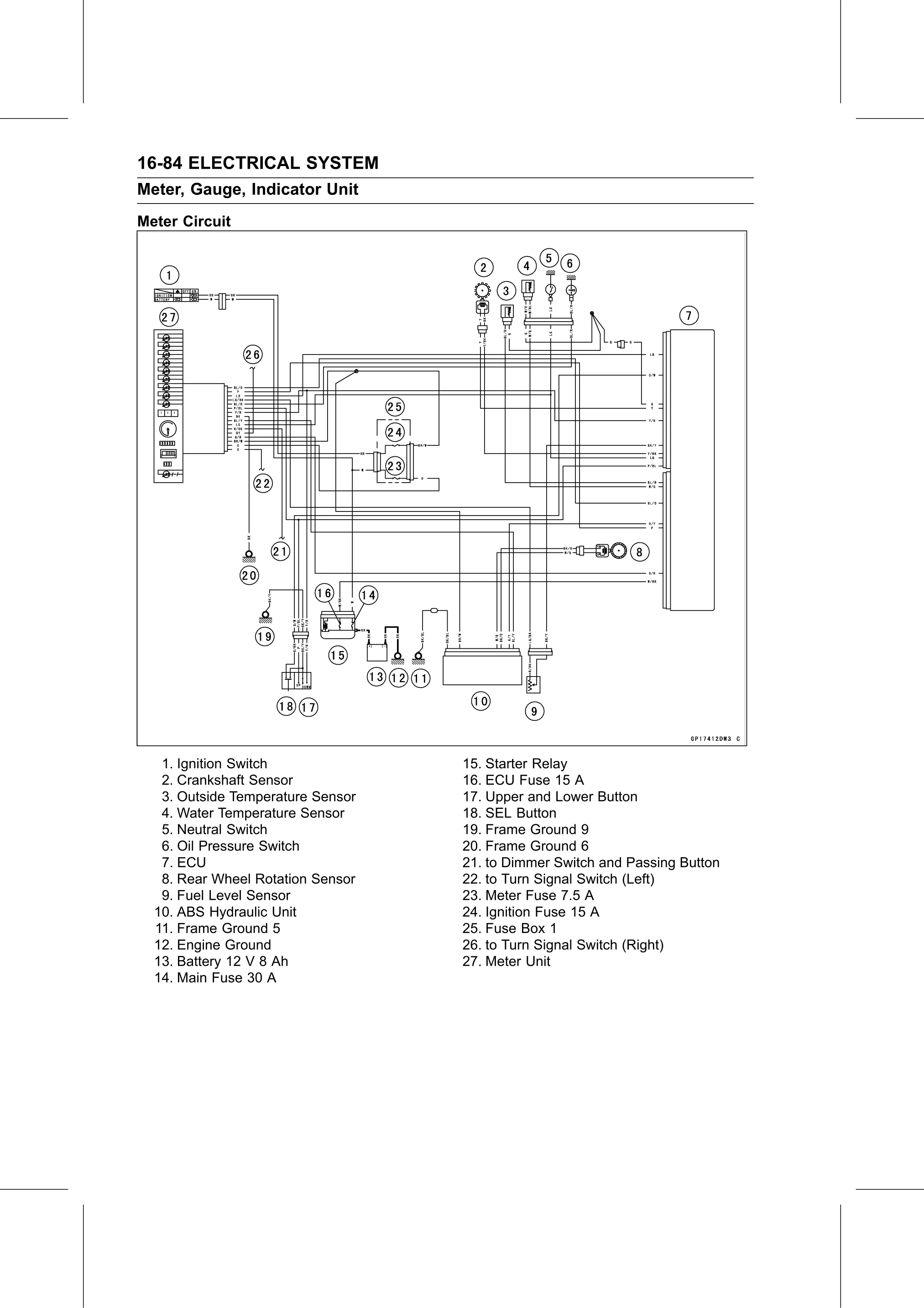

16-84 ELECTRICAL SYSTEM
Meter, Gauge, Indicator Unit
Meter Circuit

   1. Ignition Switch              15. Starter Relay
   2. Crankshaft Sensor            16. ECU Fuse 15 A
   3. Outside Temperature Sensor   17. Upper and Lower Button
   4. Water Temperature Sensor     18. SEL Button
   5. Neutral Switch               19. Frame Ground 9
   6. Oil Pressure Switch          20. Frame Ground 6
   7. ECU                          21. to Dimmer Switch and Passing Button
   8. Rear Wheel Rotation Sensor   22. to Turn Signal Switch (Left)
   9. Fuel Level Sensor            23. Meter Fuse 7.5 A
  10. ABS Hydraulic Unit           24. Ignition Fuse 15 A
  11. Frame Ground 5               25. Fuse Box 1
  12. Engine Ground                26. to Turn Signal Switch (Right)
  13. Battery 12 V 8 Ah            27. Meter Unit
  14. Main Fuse 30 A
