16-104 ELECTRICAL SYSTEM
Immobilizer System (Equipped Models)

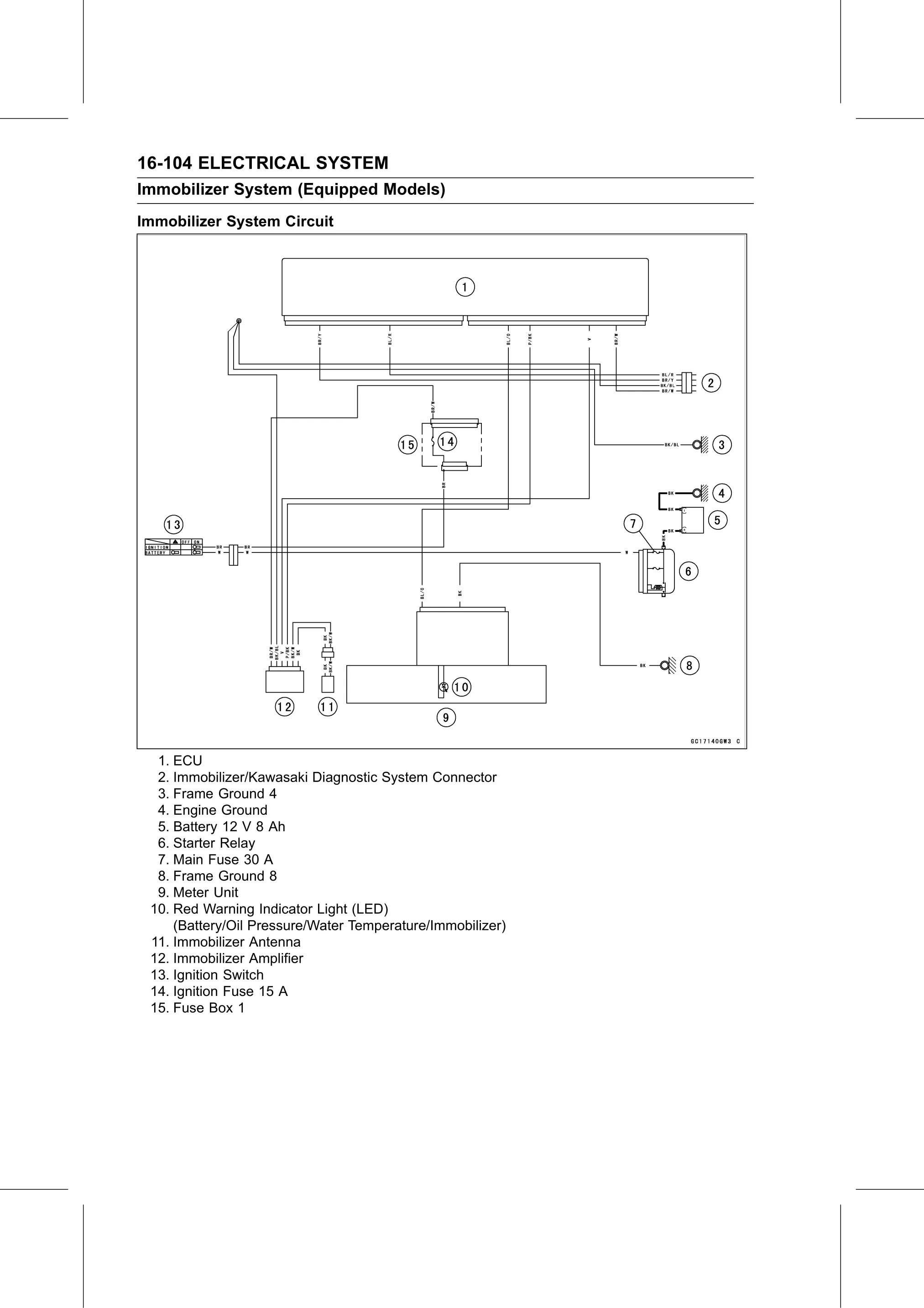

Immobilizer System Circuit

  1. ECU
  2. Immobilizer/Kawasaki Diagnostic System Connector
  3. Frame Ground 4
  4. Engine Ground
  5. Battery 12 V 8 Ah
  6. Starter Relay
  7. Main Fuse 30 A
  8. Frame Ground 8
  9. Meter Unit
 10. Red Warning Indicator Light (LED)
     (Battery/Oil Pressure/Water Temperature/Immobilizer)
 11. Immobilizer Antenna
 12. Immobilizer Amplifier
 13. Ignition Switch
 14. Ignition Fuse 15 A
 15. Fuse Box 1
