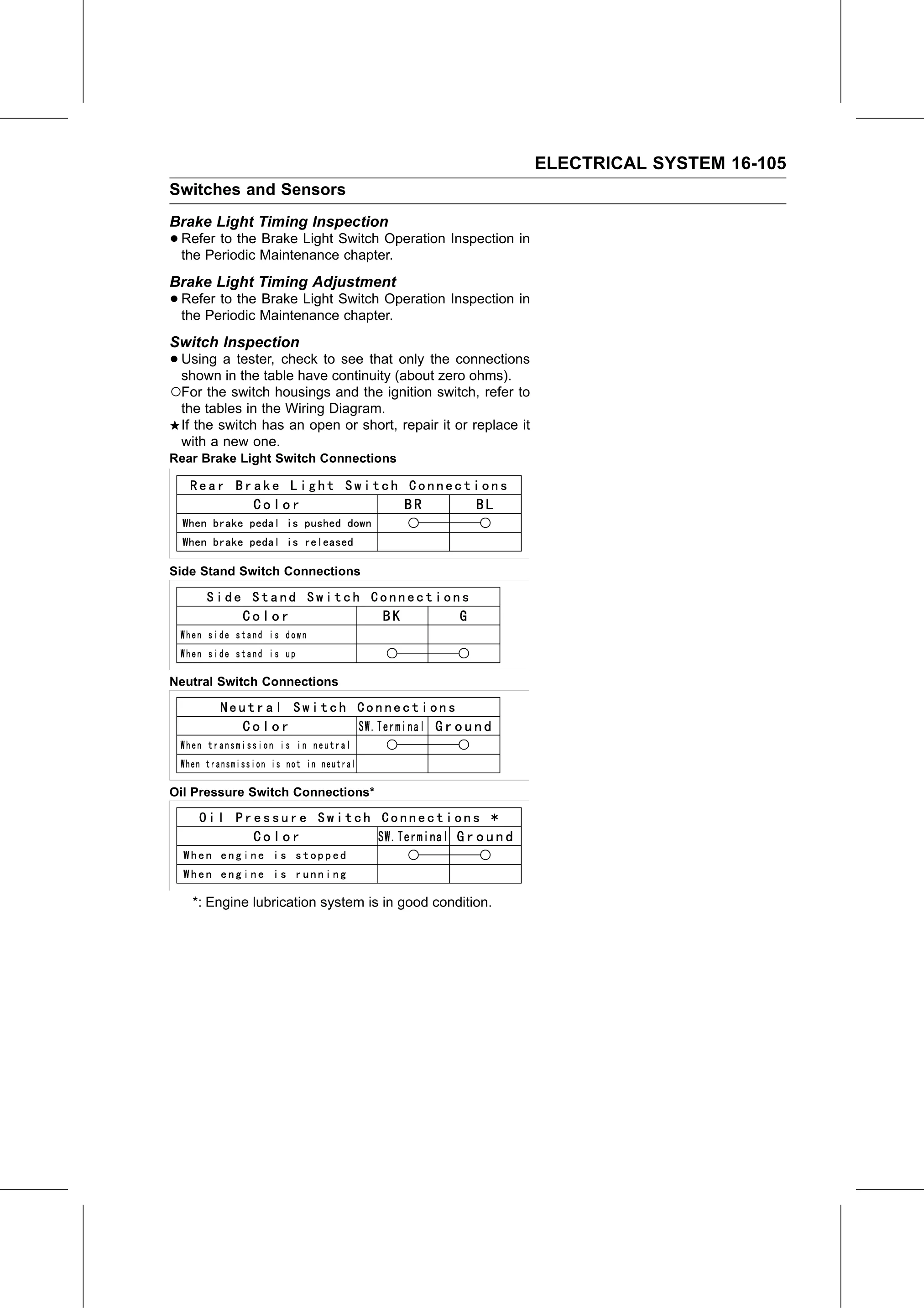

ELECTRICAL SYSTEM 16-105
Switches and Sensors
Brake Light Timing Inspection
• Refer to the Brake Light Switch Operation Inspection in
  the Periodic Maintenance chapter.
Brake Light Timing Adjustment
• Refer to the Brake Light Switch Operation Inspection in
  the Periodic Maintenance chapter.
Switch Inspection
• Using a tester, check to see that only the connections
  shown in the table have continuity (about zero ohms).
○For the switch housings and the ignition switch, refer to
 the tables in the Wiring Diagram.
 If the switch has an open or short, repair it or replace it
 with a new one.
Rear Brake Light Switch Connections

Side Stand Switch Connections

Neutral Switch Connections

Oil Pressure Switch Connections*

   *: Engine lubrication system is in good condition.
