17-10 APPENDIX

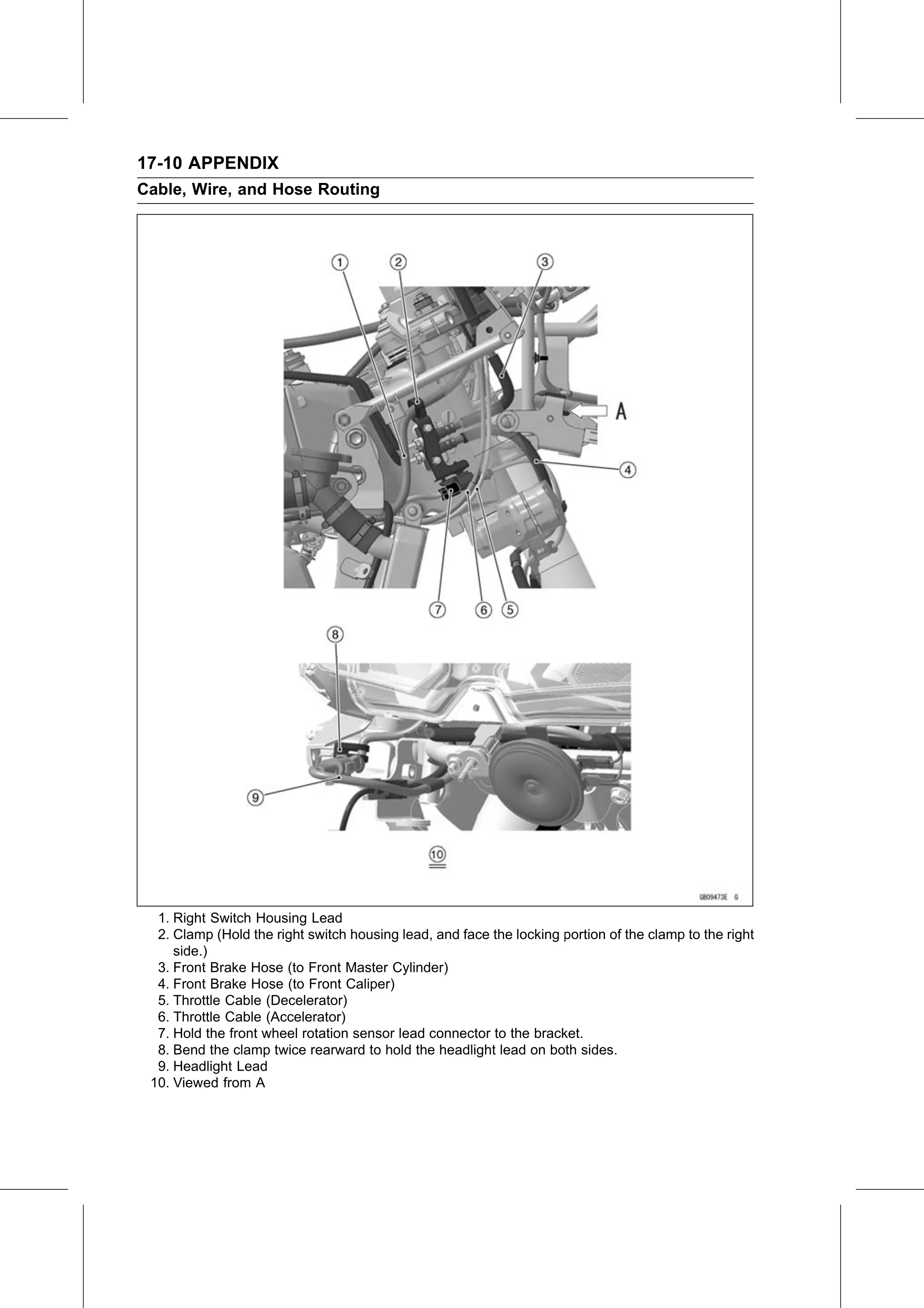

Cable, Wire, and Hose Routing

  1. Right Switch Housing Lead
  2. Clamp (Hold the right switch housing lead, and face the locking portion of the clamp to the right
     side.)
  3. Front Brake Hose (to Front Master Cylinder)
  4. Front Brake Hose (to Front Caliper)
  5. Throttle Cable (Decelerator)
  6. Throttle Cable (Accelerator)
  7. Hold the front wheel rotation sensor lead connector to the bracket.
  8. Bend the clamp twice rearward to hold the headlight lead on both sides.
  9. Headlight Lead
